4.4 Analog Outputs
AOUTA and AOUTB are the ground-centered line or headphone outputs. Various signal processing options
are available, including digital mixes with the ADC signal and an internal Beep Generator. The desired path
to the DAC must be selected using the DATA_SEL[1:0] bits.
4.4.1 De-Emphasis Filter
The CODEC includes on-chip digital de-emphasis optimized for a sample rate of 44.1 kHz. The filter re-
sponse is shown in
Figure 14 . The de-emphasis feature is included to accommodate audio recordings
that utilize 50/15
µs pre-emphasis equalization as a means of noise reduction. De-emphasis is only avail-
able in Single-Speed Mode.
Software
Controls:
“DAC Control (Address 09h)” on page 58 .
Software
Controls:
“DAC Control (Address 09h)” on page 58 .
Hardware
Control:
Pin Setting Selection
“DEM” pin 4. LO No De-Emphasis
HI De-Emphasis Applied
Charge
Pump
Left/Right
HP Out
Switched
Capacitor DAC
and Filter
Headphone
Amp - GND
Centered
PDN_DACA
PDN_DACB DATA_SEL[1:0]
00
CHRG_FREQ[3:0]
01
HP_GAIN[2:0]
Beep
Generator
Bass/
Treble/
Control
Σ
VOL
Peak
Detect
Limiter
Chnl Vol.
Settings
Demph VOL
VOL
+12dB/-102dB
0.5dB steps
OUTA_VOL[7:0]
OUTB_VOL[7:0]
+12dB/-51.5dB
0.5dB steps
PCMMIXA_VOL[6:0]
PCMMIXB_VOL[6:0]
0dB/-50dB
2.0dB steps
BPVOL[4:0]
MUTE_PCMMIXA
MUTE_PCMMIXB
DEEMPH
BASS[3:0]
TREB[3:0]
+12.0dB/-10.5dB
1.5dB steps
BASS_CF[1:0]
TREB_CF[1:0]
TC_EN
SIGNAL PROCESSING ENGINE (SPE)
DAC_SZC[1:0]
DACA_MUTE
DACB_MUTE
INV_DACA
INV_DACB
DAC_SNGVOL
AMUTE
ARATE[7:0]
RRATE[7:0]
MAX[2:0]
MIN[2:0]
LIM_SRDIS
LIM_ZCDIS
LIMIT_EN
PCMA[1:0]
PCMB[1:0]
PCM
Serial
Int
e
rf
a
c
e
OFFTIME[2:0]
ONTIME[3:0]
FREQ[3:0]
REPEAT
BEEP
Channel
Swap

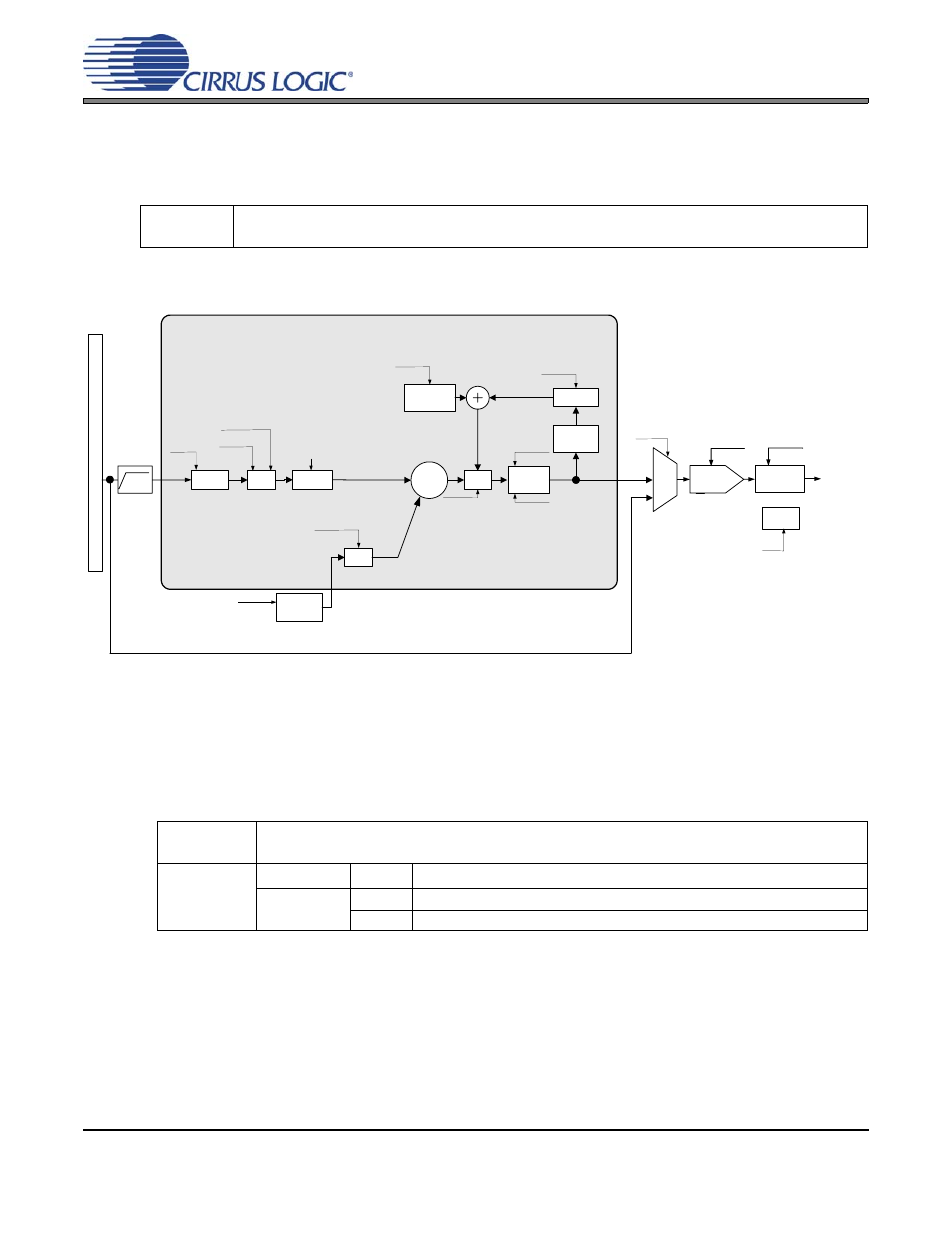

Figure 13. Output Architecture
