Section H Page 37
©2012

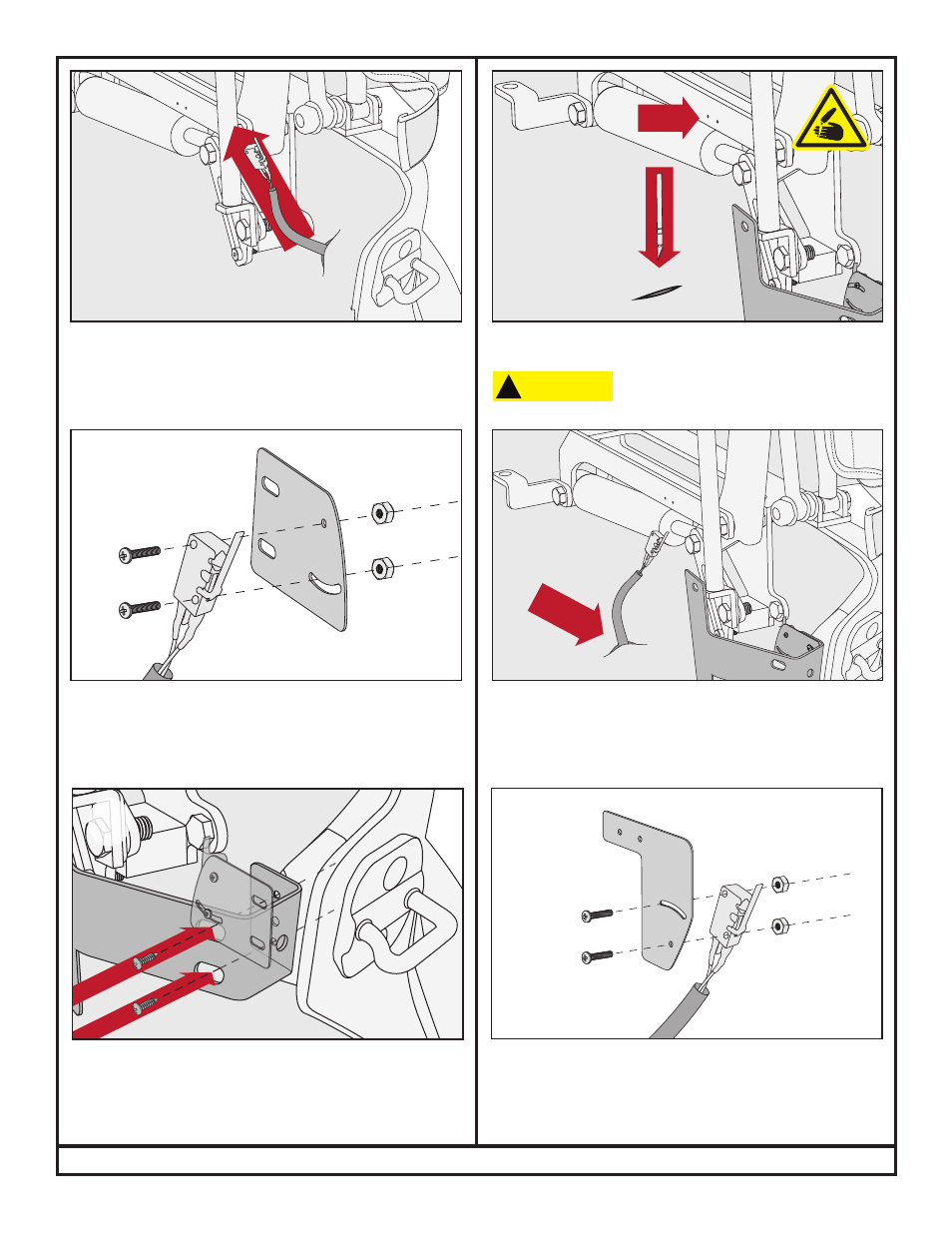

On the drivers side, cut a small slit in the carpet in line
with the holes indicated above.
Cutting/Sharp Edge Hazard: Cut carefully
using gloves and eye protection.
8
The limit switch should be positioned inside the front guard
bracket as shown. Fasten both the front guard bracket
and the front limit switch bracket to the drivers side of the
vehicle.
7
#8x.625 Sheet
Metal Screw
Find the limit switch with GRAY wires (Pull back the
wire sleeve on the limit switch to reveal the color of the
wire). Route the GRAY wired limit switch underneath the
carpet and through the previously cut slit.
9
Fasten the limit switch to the rear limit switch bracket.
Leave both screws semi-loose so adjustments can be
made later.
10
#4x.625
Screw
#4 Lock Nut
CAUTION !
Find the limit switch with the BROWN wires (Pull back
the wire sleeve on the limit switch to reveal the color of
the wire). Route the BROWN wired limit switch
underneath the carpet and through the previously cut
slit.
Fasten the limit switch to the front limit switch bracket.
Leave both screws semi-loose so adjustments can be
made later.
5
6
#4x.625
Screw
#4 Lock Nut
