Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 22
Section E
Page 20

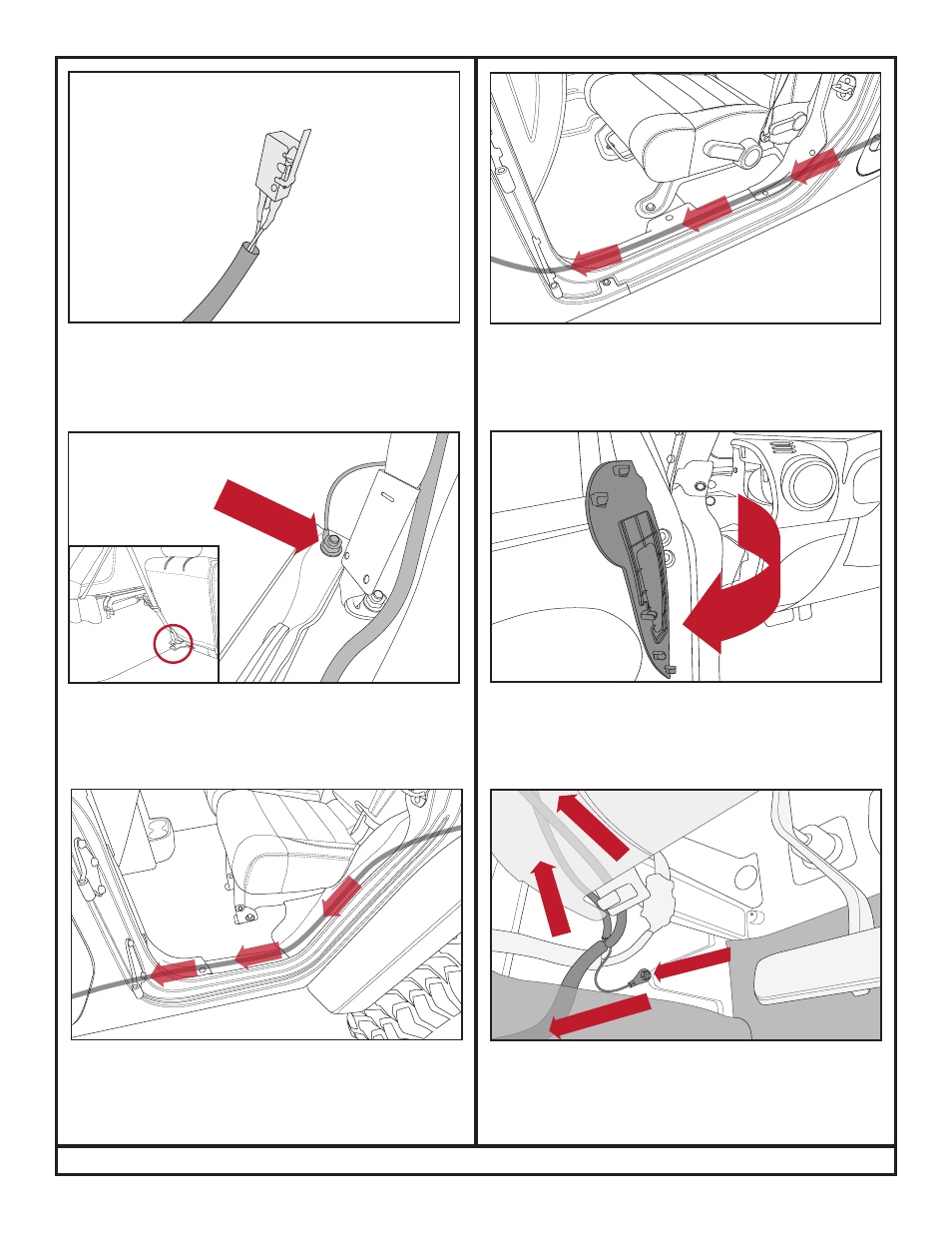

Remove panel fasteners. Continue to route the cable
underneath the side panels into the front floor
compartment underneath dash. Re-install any panel
fasteners removed.
15
©2012
Remove the panel located on the side of the dash.
16
Remove panel fasteners. Continue to route the cable
underneath the carpet and side panels. Re-install any
panel fasteners removed.
14
GROUND WIRE
TO BATTERY
TO H
YDRA
ULIC
S
TO
SW
ITC
H
Attach the front ground wire to the side of the vehicle
body underneath the drivers side dash. Continue to
route the cable up along the side of the drivers side
A-pillar and behind door wires.
17
Safely set the 2 limit switches aside to prevent any
damage.
12
Route the remaining electrical harness underneath the
carpet. Attach the rear ground wire to the back seat
mounting bracket. Be sure harness routes to the outside
of the seat belt.
13
