Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 18
Section D
Page 16

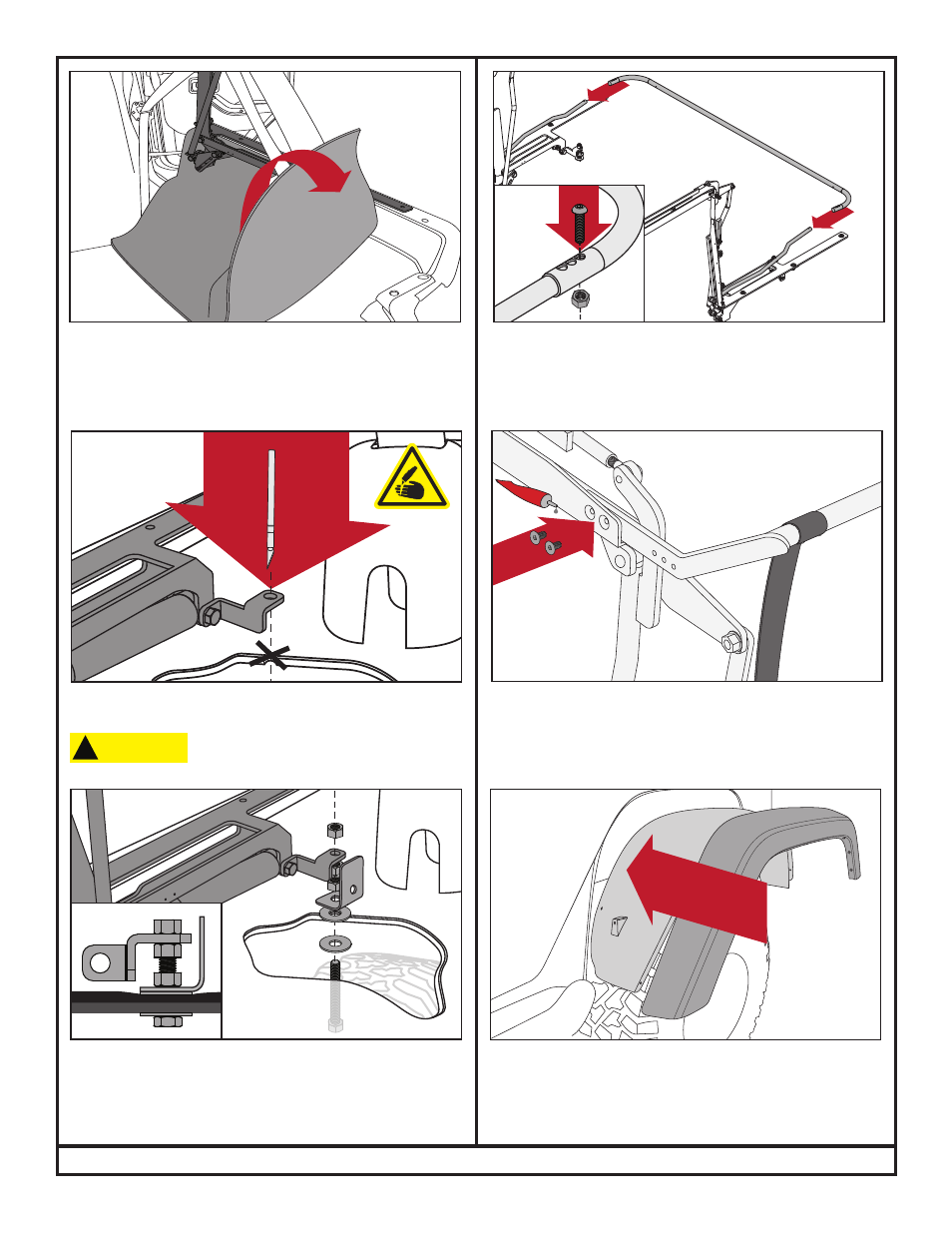

Secure side arm assembly and rear guard bracket to the
vehicles body tub. Be sure bolts, nuts and washers are
correctly assembled.
Re-install your carpet.
Using the rear mounting bracket as a guide, cut an
X in
the carpet above the drilled hole.
Cutting/Sharp Edge Hazard: Cut carefully
using gloves and eye protection.
5
6
7
©2012
CAUTION
!
1/2x3 Hex
Bolt
1/2x1.5
Washer
Rear Guard
Bracket
1/2 Nut
Re-install the rear fender flares and splash guards.
10
Attach Bow A to the arms on the side arm assemblies.
Attach arms at lowest adjustment point as shown
in the image. This may require future adjustment to
higher settings to maintain proper tensioning of the top.
8
1/4x1
Button
head
Bolt
1/4 Nut
Attach Bow B to the top corner of the side assemblies.
Use thread lock to secure bolts. Follow manufacturers
instruction for application of thread lock.
9
1/4x.5 Flat
Head Bolt
