Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 35
Section G
Page 33

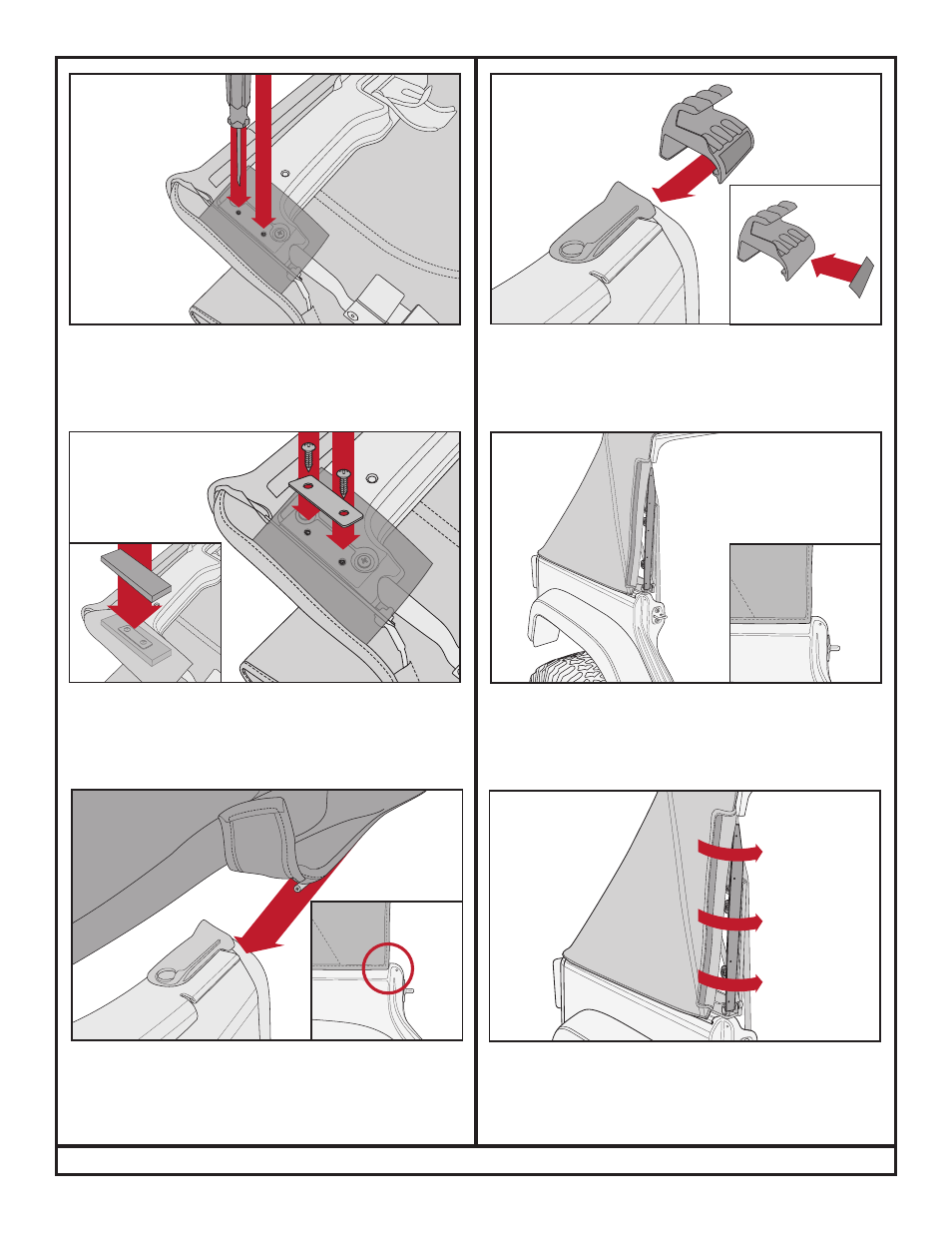

Once the Velcro® on the canvas flap and header are
secure, puncture directly above the two header holes.
23
©2012
With the power top in the partially open position, similar
to step 19, secure the rear canvas to the body by sliding
the rubber P-channel into the belt rail until canvas aligns
with rear door opening. Note: If P-channel becomes
difficult to slide, operate top toward closed position.
25
Clamp the fabric to the header using the canvas mount
plate. Attach provided foam tape.
24
#8x.625 Sheet
Metal Screw
Canvas Mount
Plate
Re-install the tailgate bar holders removed in
SECTION A. Install the soft Velcro® strip provided.
26
Pull the canvas flap found along the rear door opening
tightly around the side arm assembly.
28
The Power Top canvas should now cover the cargo
area. The corner of the canvas has piping that should
be at the edge and parallel of the side bracket.
DO NOT
operate the Power Top until Steps 28-30 are
complete.
27
