Section C

Page 13

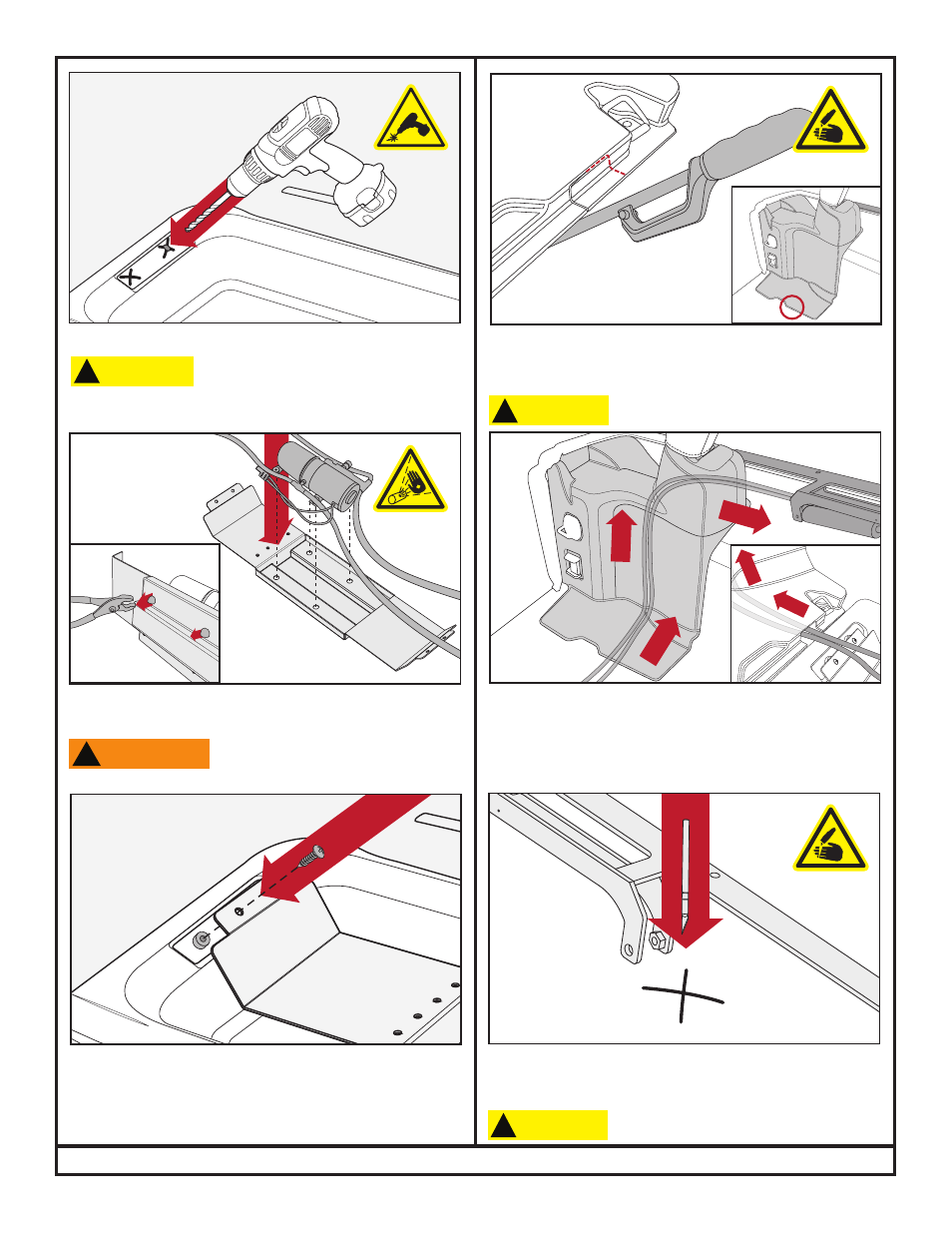

Cut an

X in the carpet behind the rear mounting point for the

hydraulic piston as shown above.

Before marking/cutting,

make sure carpet can be installed back to it’s factory

setting/position.

Cutting/Sharp Edge Hazard: Cut carefully

using gloves and eye protection.

CAUTION

Secure the hydraulic tray to the cargo recess. If carpet

was removed, replace before securing tray.

2007-2010

Jeep® Owners skip to Step 10.

#8x.625

Sheet Metal

Screw

Rubber

Grommet

2011+ Jeep® Owners Only. Using a cutting device (e.g. hack

saw, jig saw, dremel®, etc.), cut the indicated section out of the

rear wheel well cover. The cut should measure 1” height by 2”

width. Sand and smooth to create a more finished look.

Cutting/S

harp Edge Hazard: Cut carefully

using eye protection.

2011+ Jeep® Owners Only. Route the hoses of the

hydraulic arms through the section you cut out in the

previous step. Position the hoses underneath the plastic

wheel well cover and behind the roll bar.

Place your hydraulic motor onto the hydraulic tray. Pull the

attached rubber grommets on the hydraulic motor through the

tray with pliers.

High Pressure Fluid Penetration Hazard

pressurized hydraulic fluid may penetrate skin

causing serious injury. Wear gloves and eye

protection.

WARNING

With a 9/64 drill bit, drill into guides previously marked.

Cutting Hazard: Avoid excessive

pressure & heat on bit. Use gloves

and eye protection.

CAUTION
