SECTION - F - Making Adjustments and Attaching Surrounds
Section F Page 26 ©2012
Section Description- This section will illustrate how to install the surrounds and make adjustments
to the side arm assemblies.
Tool Needed -
Allen wrench (3/16”, 1/8”) Wrench (9/16”, 3/8”, 7/16”) Velcro®
packaged with canvas
Socket wrench (9/16”, 7/16”) Phillips head screw driver
Hardware Kit - #5
Carefully read and understand all instructions before proceeding. NOTICE

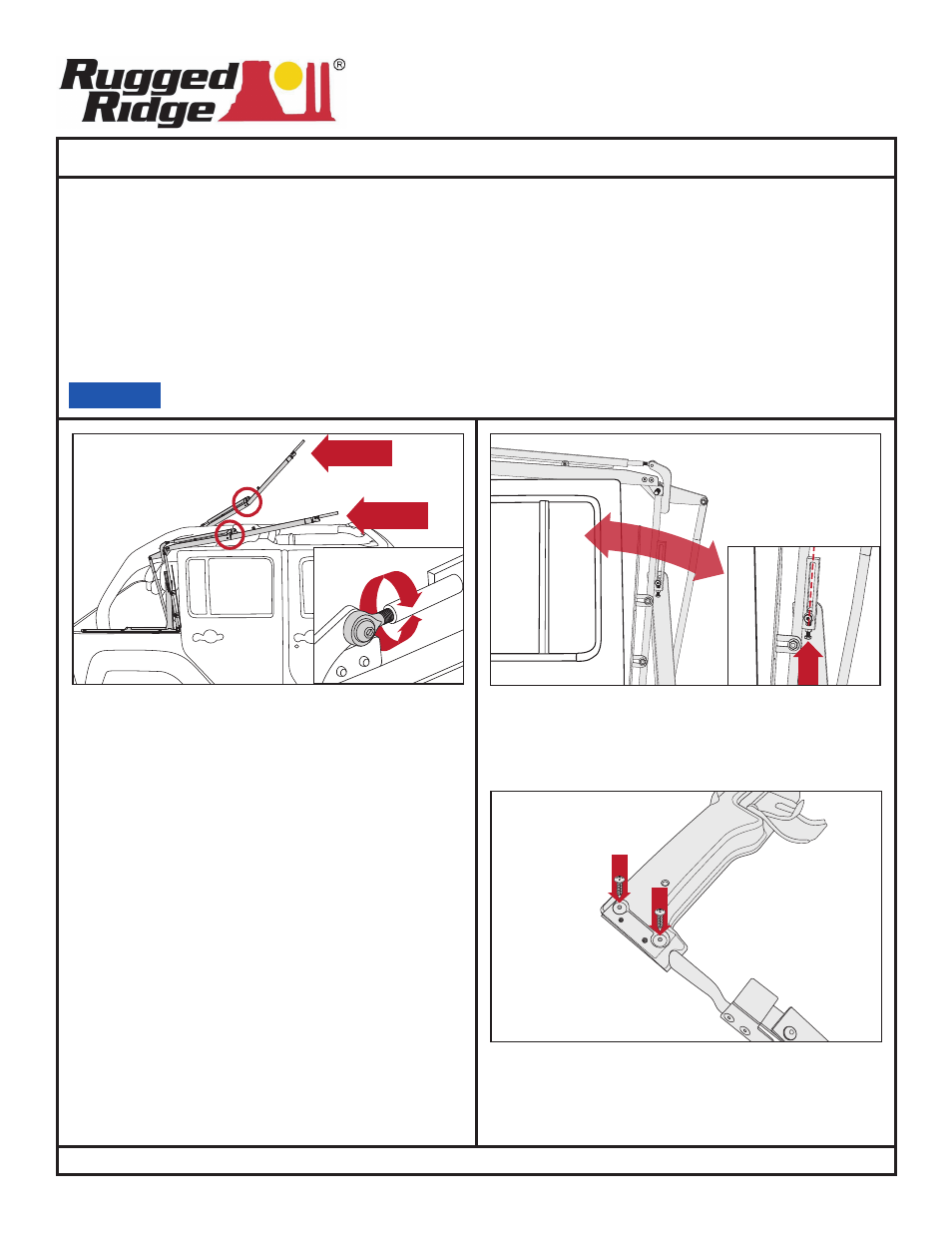

Inspect and adjust the rate at which the side arm
assemblies fold during operation. Both hinge points
circled above should extend at the same time. Also,
both side arm assemblies should become fully
extended before reaching the closed position. Only if
absolutely necesary, follow adjustment steps below
on how to adjust the fold rate of the side assemblies:
1. Remove bolt securing the heim joint to the side arm
assembly.
2. Thread heim joint IN for sooner extension
3. Thread heim joint OUT for later extension
4. Re-attach heim joint to side arm assembly
Note: The image above shows side arm assemblies in
need of adjustment.
1
With the Power Top in the open position, attach the
bottom half of the factory header to the side arm
assembly.
Remove the indicated bolt. Close the top so the side arm
assemblies fall into the header. Re-install and tighten the
bolt.
3
2
#8x.625
Sheet Metal
Screw
