Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 31

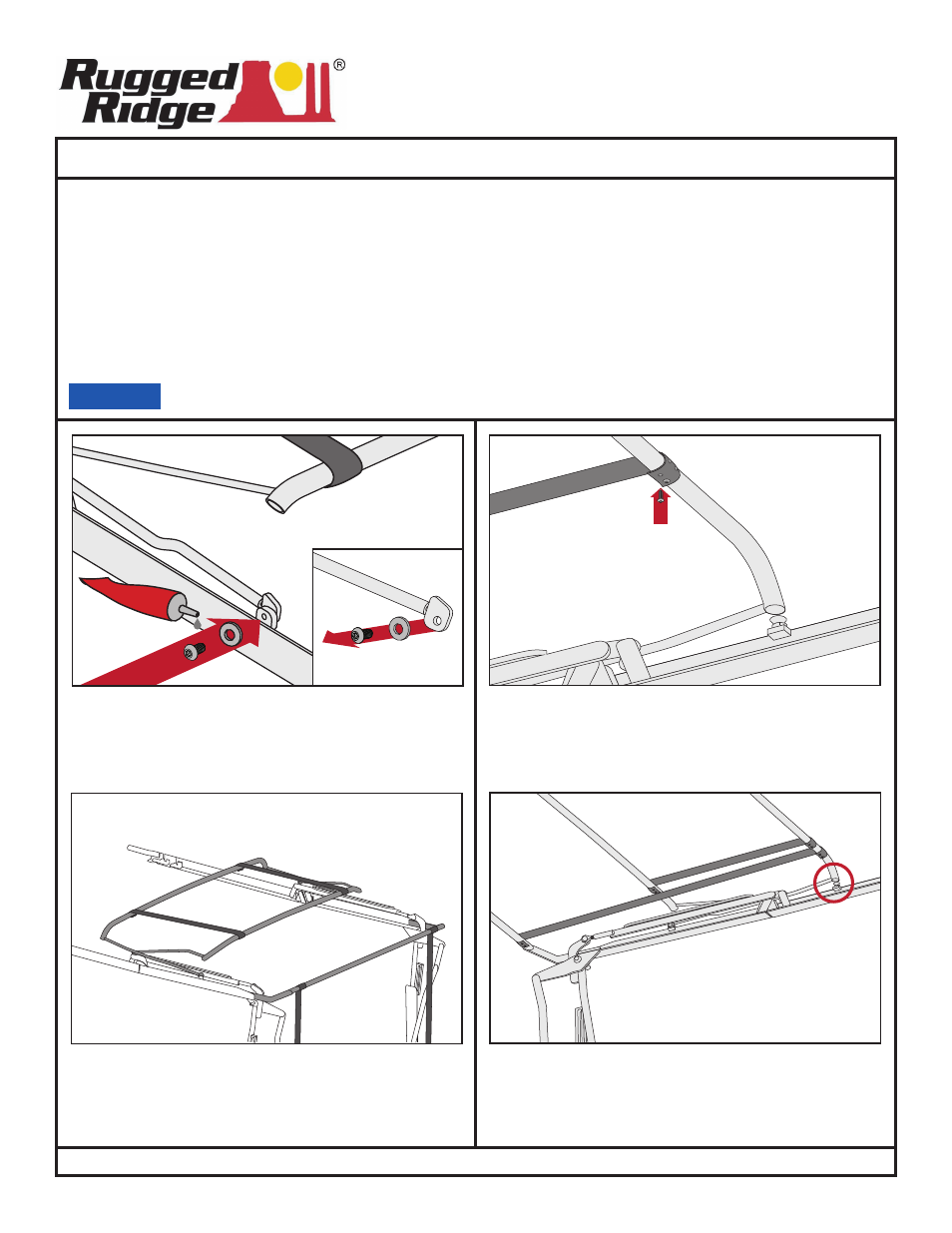

SECTION - G - Attaching the Power Top Canvas
Section G
Page 29
©2012
Detach the two bolts and nylon washers from the ends
of Bow C. Attach Bow C to the side arm assemblies.
Use thread lock to secure bolts. Follow manufacturers
instruction for application of thread lock.
1
This will be the correct assembly once Bows C and D
are attached.
2
3/8 Nylon
Washer
1/4x.5 Button
Head Bolt
Section Description- This section will illustrate how to attach the canvas and bows to the
Power Top.
Tool Needed -
Phillips head screw driver
Hand punch
Drill (3/16”)
Allen wrench (5/32”)
Duct tape
Hand file
Permanent thread lock
Wrench (1/2”, 3/8”)
Velcro®
packaged with canvas
Hardware Kit - #6
Carefully read and understand all instructions before proceeding.
NOTICE
Attach the long straps from bow Bow B to Bow C. Make
sure the long elastic straps fall underneath Bow D.
3
#8x.625 Sheet
Metal Screw
The straps should be installed as shown in the image.
Make sure Bow D falls onto the rubber bumper as
indicated.
4
