Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 16
Section C
Page 14

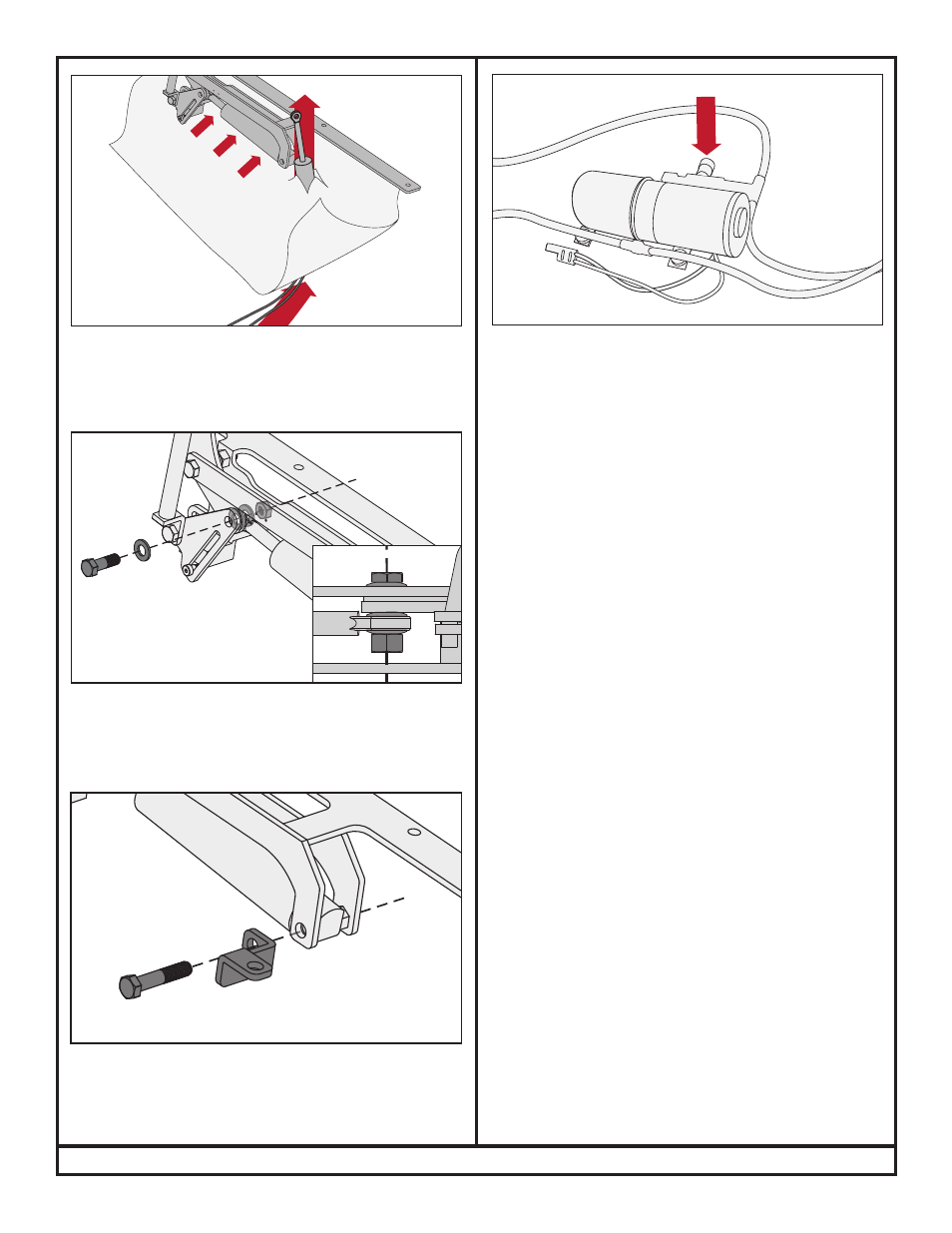

With the Power Top in an up and closed position, secure
hydraulic piston by attaching the rear mounting bracket.
Note: manually pull and/or compress to align the
hydraulic piston and the side arm assembly.
13
©2012
1/2x2.5 Hex
Bolt
Rear Mounting
Bracket
(RH shown)
Attach the hydraulic piston to the side assembly as
shown.
This hardware is already attached and will
need to be removed and re-installed. Keep
attachment tight but loose enough to allow
movement of hydraulic piston.
12
Guide the hydraulic piston underneath carpet and pull it
through the previously cut
X. Position the piston in the
side arm assembly as designated by the 3 small arrows
in the image.
11
14
Locate the adjustment knob on the hydraulic motor. This
knob controls the rate of speed for opening and closing
the Power Top.
Adjust this knob for smooth and safe
operation.
