Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 38

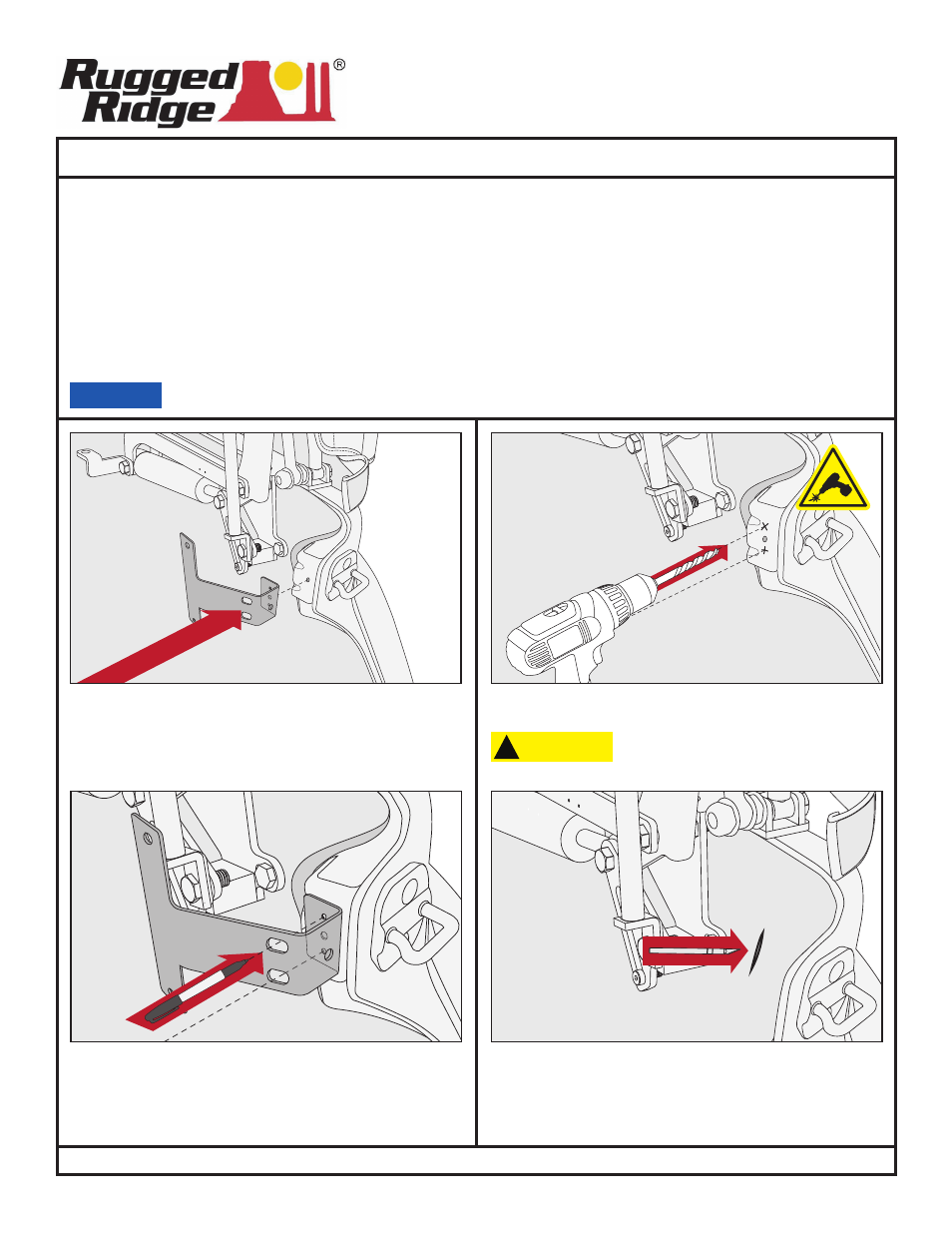

SECTION - H - Attaching Limit Switches
Drill into the door strike support bracket using a 9/64 drill
bit.
Cutting Hazard: Avoid excessive
pressure & heat on bit. Use gloves and
eye protection.
On the driver side, pull back carpet covering the door
strike support bracket. Locate 3 holes found on the front
guard bracket. Align the center hole with the guide hole
found on the door strike support bracket as indicated
above. Align the bracket holes vertically.
Mark the vehicle using bracket holes as a guide.
Section H
Page 36
3
1
2
©2012
Re-position carpet over the door strike support bracket.
Cut a small slit behind the door strike support bracket.
4
Section Description- This section will illustrate how to install the limit switches.
Tool Needed -
Utility Knife
Wrench (1/4”)
Drill (9/64”)
Phillips head screw driver
Pen/pencil
Hardware Kit - #7
Carefully read and understand all instructions before proceeding.
NOTICE
CAUTION
!
