Section G Page 34

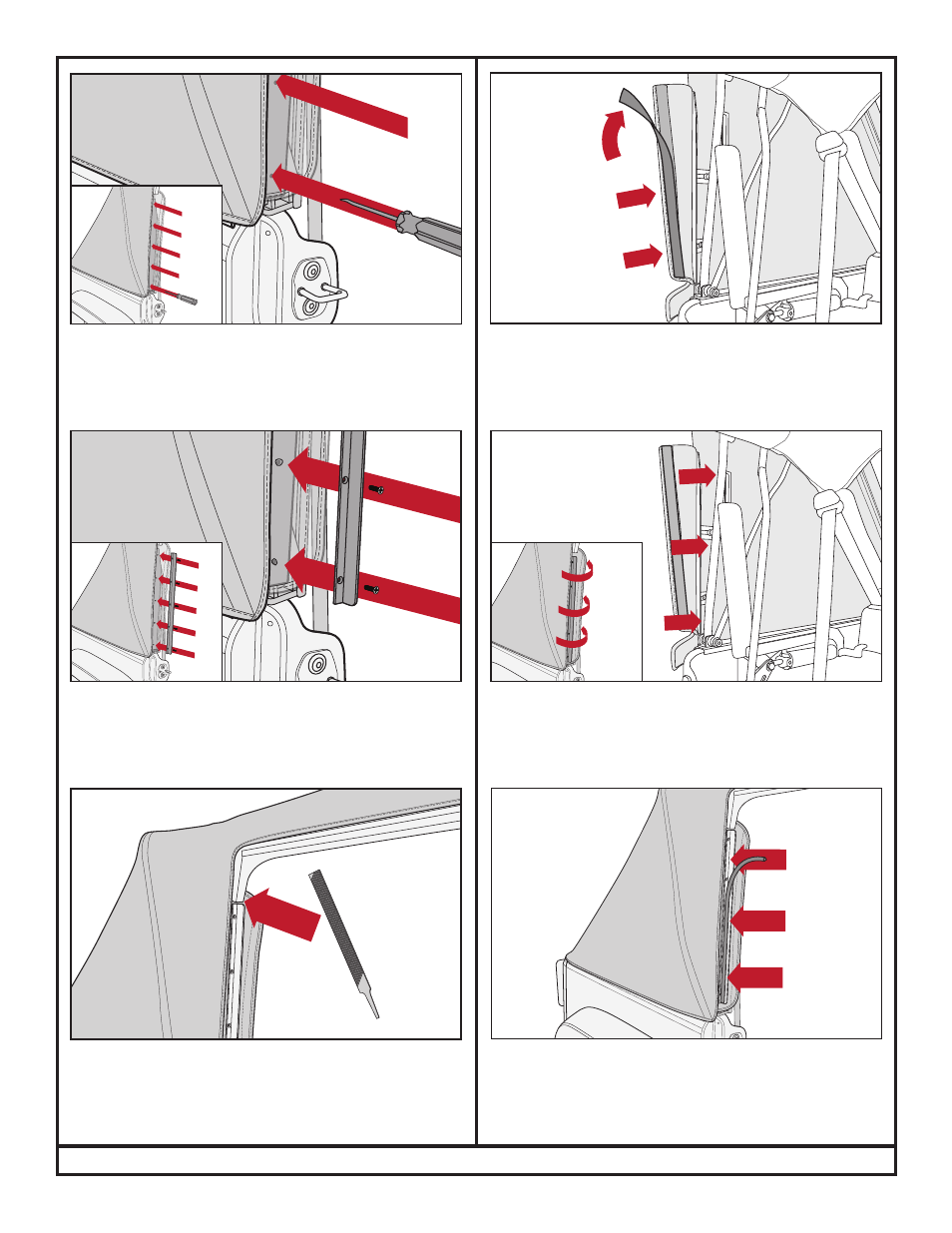

Attach the Velcro ® strip to the Velcro® on the inside of
the canvas flap. Remove the adhesive liner from the
Velcro ® strip.
If there is any interference between the door bracket and
the rear surround, use a hand file to shave off the
bottom of the rear surround. Note: Only do this when
there is visible overlapping/collision.
Attach the provided foam seal in the corner of the door
bracket.
32
31 34
©2012
Wrap the canvas flap around the side bracket and
adhere the Velcro® strip to the bar indicated above.
With canvas flap tight, clamp the canvas to the side
bracket with the door bracket.
33 30
With canvas flap tight, puncture holes to align with the
holes in the side bracket.
29
#6 Flat Head
Screw
