Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 12

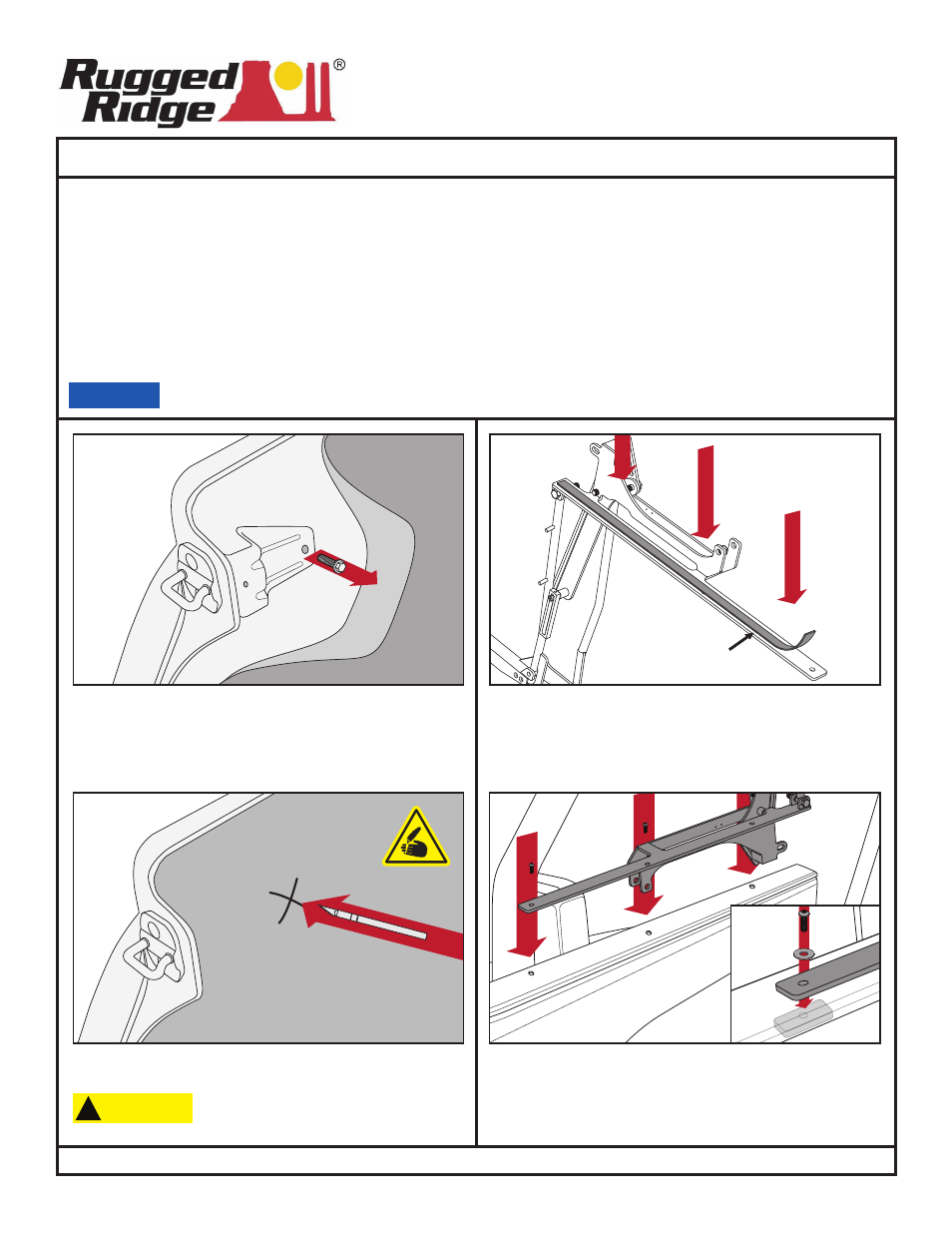

SECTION - B - Attaching Side Arm Assemblies
¼”
Attach foam tape to the underside of the side arm
assembly. Leave a 1/4” space between the edge of the
tape and outside edge of the side arm assembly. Cut out
holes in the foam tape to reveal covered mounting holes.
Section B
Page 10
3
1
©2012
Cut a 1” diameter circle in the carpet over the hole
where the bolt removed was located.
Cutting/Sharp Edge Hazard: Cut carefully
using gloves and eye protection.
Lower the rear seat. Pull back carpet and remove the
bolt from the door striker bracket found near the rear
doors. Re-position the carpet.
2
CAUTION
!
Section Description- This section will illustrate how to attach the side arm assemblies to the
vehicle.
Tool Needed -
Utility knife
Wrench (1/2”)
Allen Wrench (3/16”)
Hardware Kit - #1
Carefully read and understand all instructions before proceeding.
Loosely fasten the side arm assembly to the vehicle.
The tapped hole plates go on the bottom side of the tub
rail.
4
5/16 Button
Head Bolt
5/16
Washers
5/16 Tapped
Hole Plates
NOTICE
