Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 17

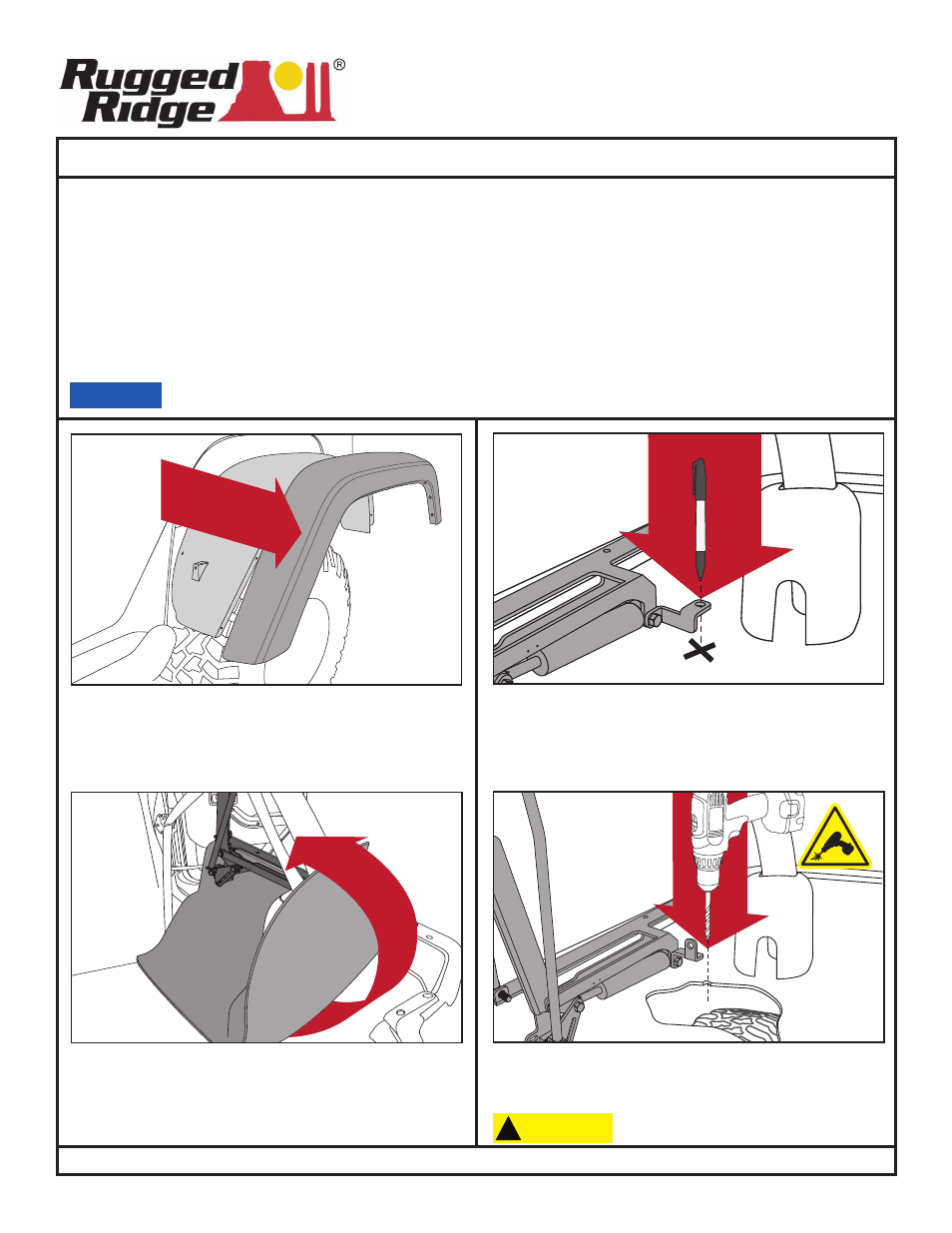

SECTION - D - Attaching Rear Mounting Bracket and Bows A & B
Remove rear fender flares and splash guards.
With carpet pulled back, use rear mounting bracket as a
guide to mark the wheel well for drilling.
Section D
Page 15
1
3
©2012
Pull side carpet back past the rear mounting bracket
installed in section C.
2
4
Rotate rear mounting bracket forward and drill a pilot hole with
a 1/4 drill bit using the guide marks previously made. Use a
1/2 drill bit to drill through the wheel well.
Note: Careful to not
puncture the tire.
Cutting Hazard: Avoid excessive pressure
& heat on bit. Use gloves and eye protection.
CAUTION
!
Section Description- This section will illustrate how to mount and secure the side arm assemblies
to the vehicle and attach bows A & B.
Tool Needed -
Utility knife
Pen/pencil
Allen wrench (3/32”, 5/32”)
Socket wrench (3/4”)
Tree fastener remover
Permanent thread lock
Wrench (3/4”)
Drill (1/2”, 1/4”)
Hardware Kit - #3
Carefully read and understand all instructions before proceeding.
NOTICE
