SECTION - C - Attaching Hydraulics

Section C

Page 12

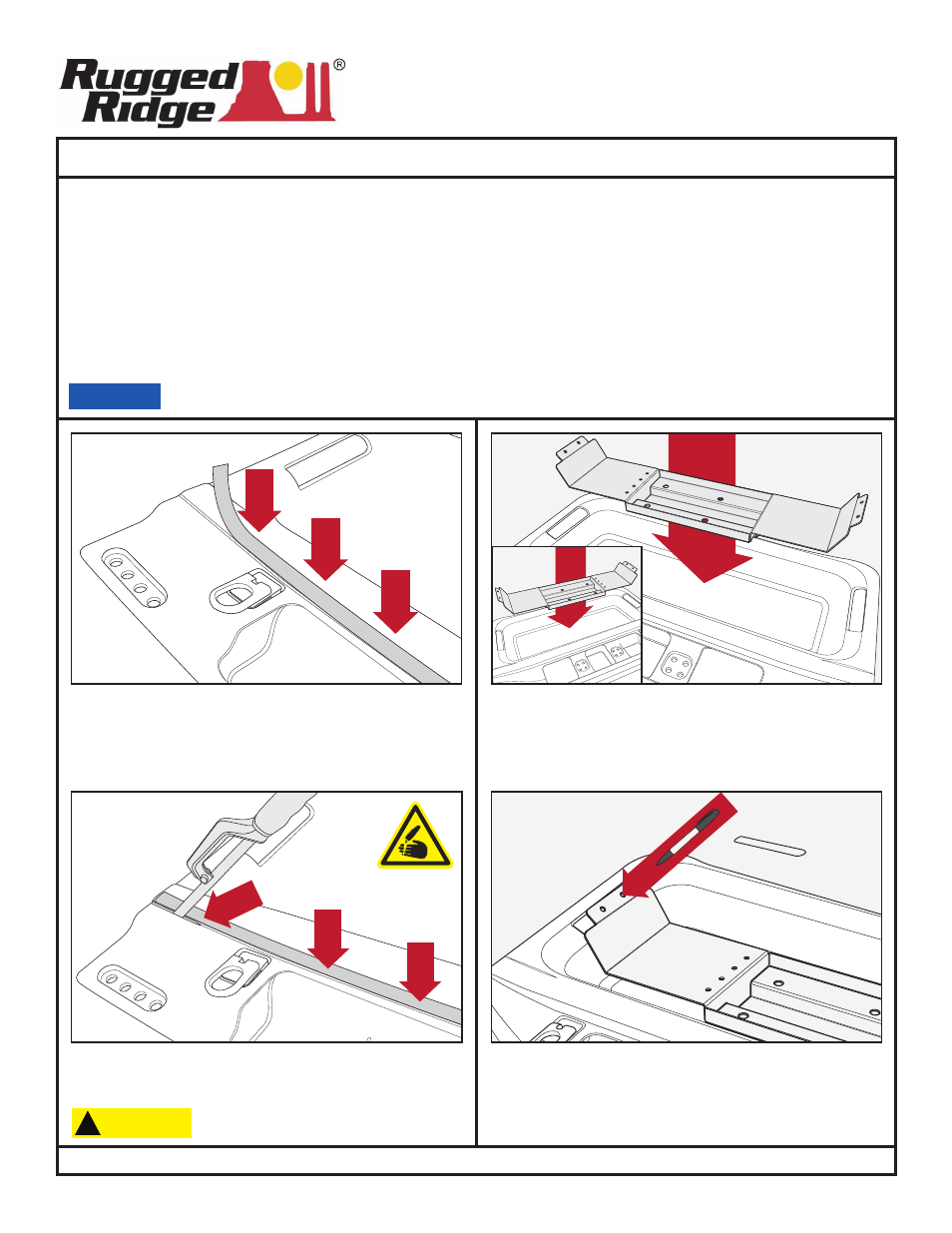

Place your hydraulic tray in the cargo recess located

underneath the access panel in the cargo area.

Note: Right hand drive vehicle owners, refer to the small

image above for the correct orientation of the hydraulic

tray.

2012+ Jeep® Owners Only. 2007-2011 Jeep®

Owners Skip to Step 3. Attach a strip of tape across the

indicated contour on the plastic cargo liner located in the

rear of the vehicle.

Using a cutting device (e.g. hack saw, jig saw, dremel®, etc.), cut the

plastic cargo liner using the tape as a guide. This will allow access to

the vehicle jack while the hydraulic tray is attached (to be attached

later). Sand and smotth the cut area to create a more finished look.

Cutting/Sharp Edge Hazard: Cut carefully

using eye protection.

Use hydraulic tray as a guide to mark holes for drilling.

Note: This image depicts the cargo recess of a 2011+

Jeep®. 2007-2010 Jeeps® will require removing carpet

in this area before marking and drilling.

Section Description- This section will illustrate how to install the hydraulic motor and how to

connect the hydraulic pistons to the side arm assemblies.
Tool Needed -

Utility Knife Drill ( 9/64”)

Phillips head screwdriver

Socket wrench (3/4”)

Pliers

Cutting Device

(e.g. hack saw, jig saw, dremel®, etc.)

Wrench (3/4”)

Pen/pencil

Masking tape

Hardware Kit - #2

Carefully read and understand all instructions before proceeding.

NOTICE

CAUTION
