Rugged Ridge PowerTop Kit, 07-14 Jeep Wrangler Unlimited (JK), Black User Manual
Page 24
Section E
Page 22
©2012
Check fit of the A-pillar switch pod. Trim should fit just to
the inside edge of the windshield frame.
28
1 2 3

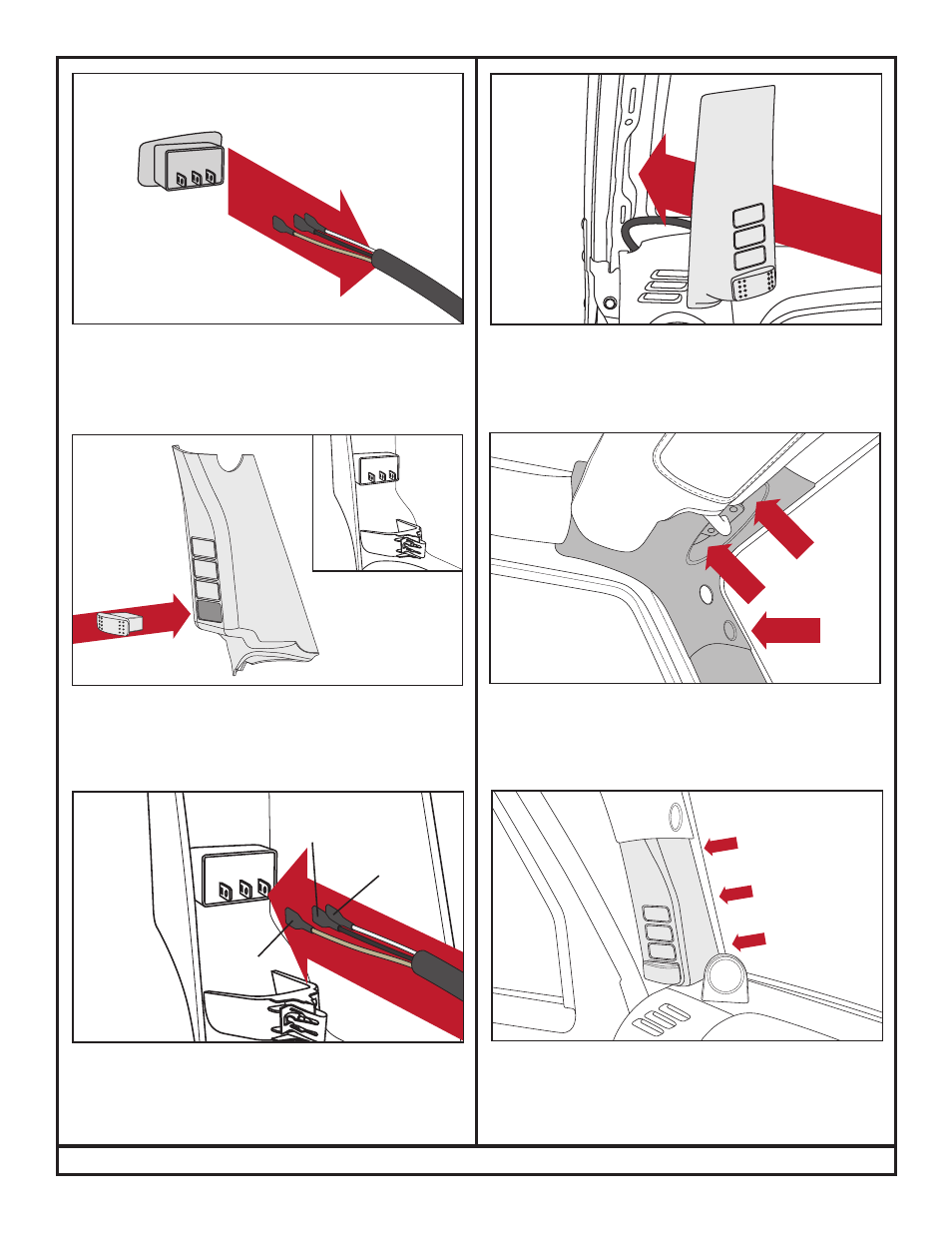

Attach the A-pillar switch pod to the drivers side A-pillar.
26
Re-attach the top A-pillar trim panel removed in step
18. Re-install sun visor. Saving the bottom A-pillar trim
panel is recommended.
27
Attach the wires as shown. Make sure the black wire is
located in the center.
25
1 2 3
Brown
Wire
Black
Wire
Gray
Wire
1 2 3
Insert switch into cut opening. Trim opening as needed.
Only remove enough material to allow switch to be
installed. If too much material is removed switch will be
loose and result in a poor fit. Orient the switch so that it
coincides with the smaller image shown.
24
1 2 3
Detach the wires as shown from the switch found
attached to the electrical harness.
23
