Window TAB Procedure
Reverse Bit Order is used to reverse the character bits and is used
for the encryption of data in specific programs
Add Leading Zeros is used to add a set number of leading zeros to
the magnetic string in order to move the starting point of the encoded
data in specific programs for encryption of data.
4.9.2 Magnetic Track Options
The magnetic Encoding Module encodes onto tracks in accordance with an ISO 7811-2 Magnetic
Stripe. For track locations, review the display below. Tabs are available on the Magnetic Encoding
tab with options for encoding data on each track.

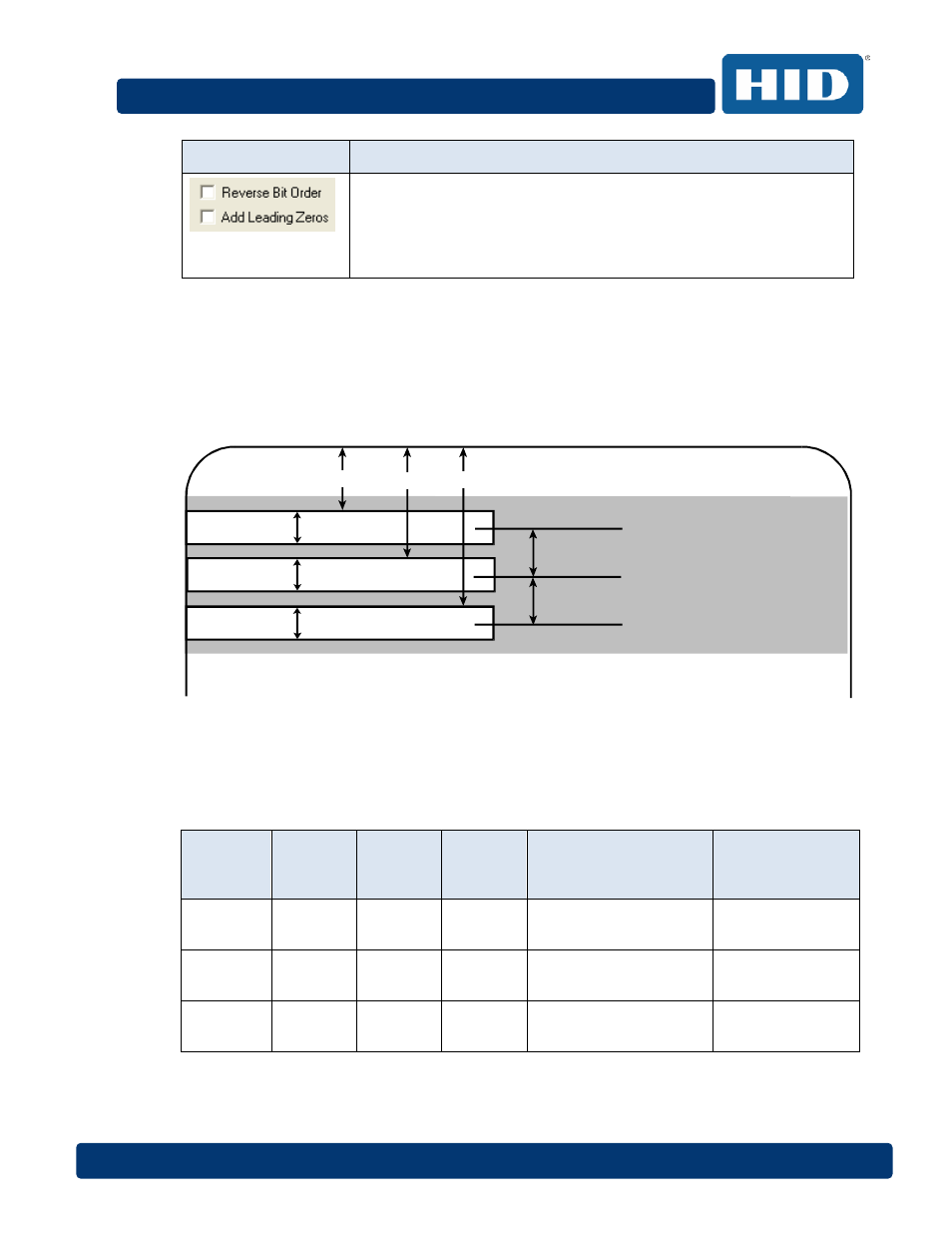

Reviewing the ISO Track Locations
TRACK1 0.110"
TRACK2 0.110"
TRACK3 0.110"
0.130"
0.140"
0.223" 0.353" 0.493"
4.9.3 Reviewing the Sample String
Track 1: ~1%JULIEANDERSON^1234567890?
Track 2: ~2;1234567890987654321?
Track 3: ~3;1234567890987654321?
Track
Start
Sentinel
End
Sentinel
Field
Separat
or
Valid Characters
Maximum
Number
of Characters
Track 1 % ? ^
ASCII 32-95
(See the table below.)
78
Track 2 ; ? =
ASCII 48-63
(See the table below.)
39
Track 3 ; ? =
ASCII 48-63
(See the table below.)
106
