Chapter 2: Installing the AT-RPS3000 Chassis and Power Supply Modules
58
Installing the AT-RPS3000 Chassis in an Equipment Rack
Perform this procedure to install the chassis in a 19-inch equipment rack.
The procedure requires the following items:
 Twelve bracket screws (included with chassis)
 Two equipment rack brackets (included with chassis)
 Flat-head screwdriver (not provided)
 Cross-head screwdriver (not provided)
 Four standard equipment rack screws (not provided)
Warning
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when mounting the chassis in
an equipment rack.
 E28
1. Place the unit upside down on a level, secure surface.

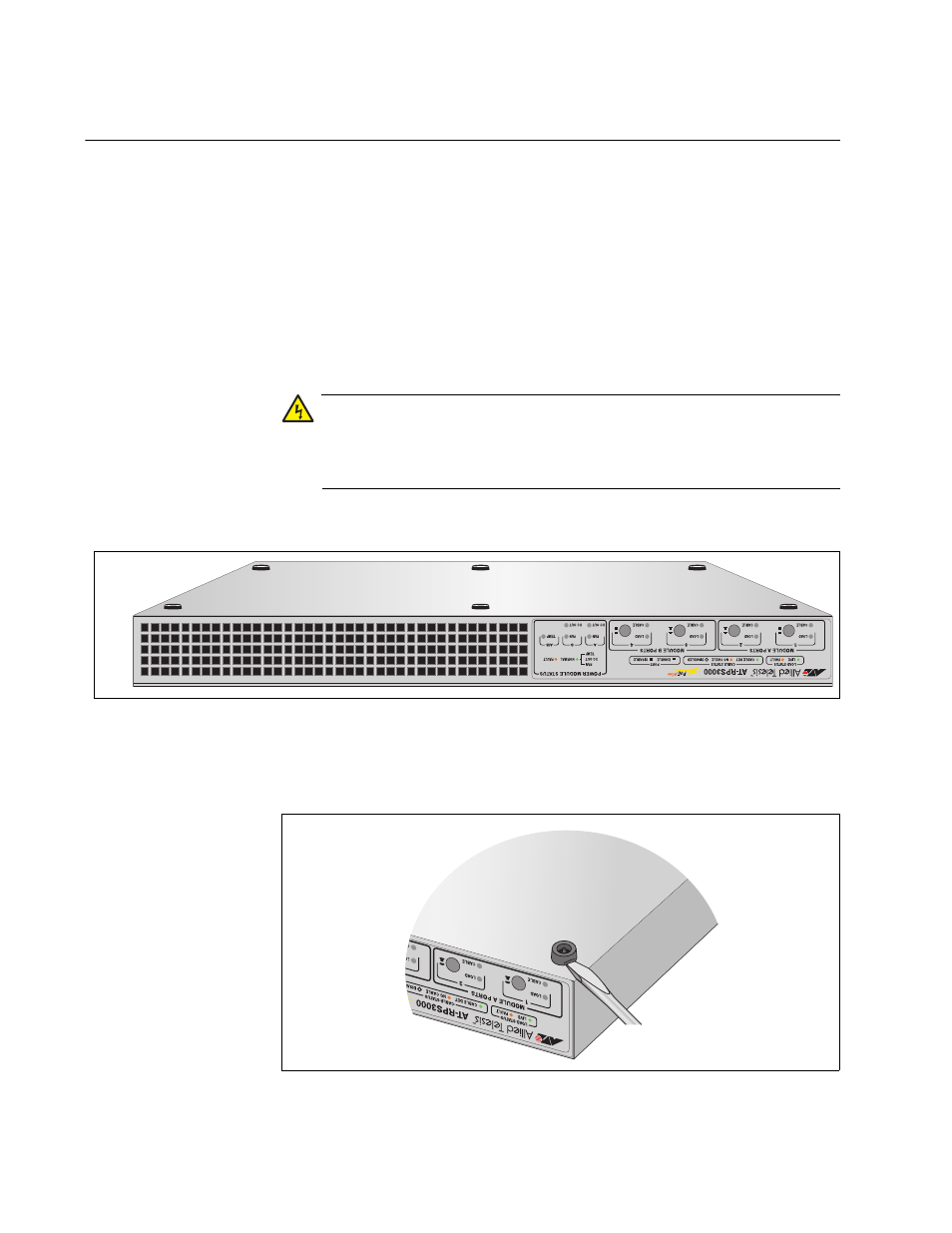

Figure 35. Turning the Switch Upside Down
2. Using a flat-head screwdriver, pry the six plastic feet from the bottom
of the switch.
Figure 36. Removing the Plastic Feet
