AT-RPS3000 Redundant Power Supply Installation Guide
39
Two AT-PWR1200 Modules may be used for amounts above 780 watts,
up to 1560 watts, but there is no redundancy for power requirements
above 780 watts.

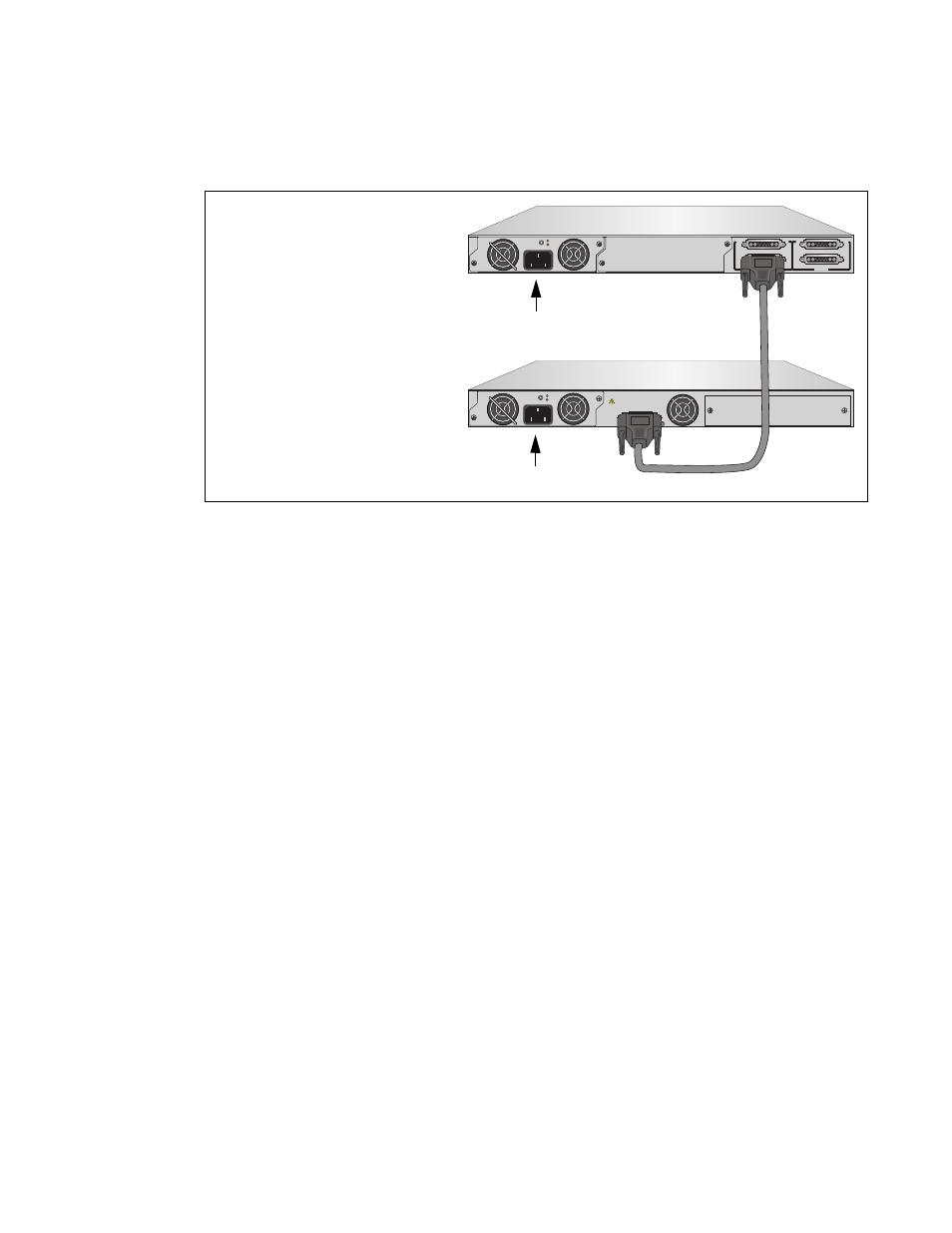

Figure 24. Two AT-PWR1200 Modules for 780 to 1560 Watts, with Limited
Redundancy
The power modules in the switches and chassis in the examples up to this
point have been the same model. But as shown in Figure 25 on page 40,
they can be different. The example shows a chassis that is supporting
three switches, two of which are low-power and one is high-power.
B
B
1
2
3
4
SYSTEM
PoE+ / SYSTEM PoE+ / SYSTEM
SYSTEM
MODULE B MODULE A
A
A
A T -PWR1200
DC OUT FAULT
100-240 VAC~16A MAX
AT-PNL800/1200
PO WER SUPPL
Y
RPS
READY
RPS INPUT
12V/21A MAX
WARNING
This unit may have more than one power input. To reduce the risk of
electric shock, disconnect both A/C and RPS inputs before servicing
unit.
A T -PWR1200
2165
DC OUT
FAULT 100-240 VAC~16A MAX
AT-x610-48Ts-POE+
AT-RPS3000 Chassis
Switch with powered devices
AT-PWR1200 Module
AT-PWR1200 Module
consuming 780 to 1560 watts
