Chapter 1: Overview
28
High-power
Switches
The power supply modules can support just one high-power switch at a
time. In the example in Figure 11 on page 28, the chassis is supporting the
AT-x610-24Ts and AT-x610-48Ts Switches, with two power supply
modules, one for each switch. Even though the AT-x610-24Ts Switch is a
low-power unit, the AT-x610-48Ts Switch must have its own dedicated
power supply module because it is a high-power device.

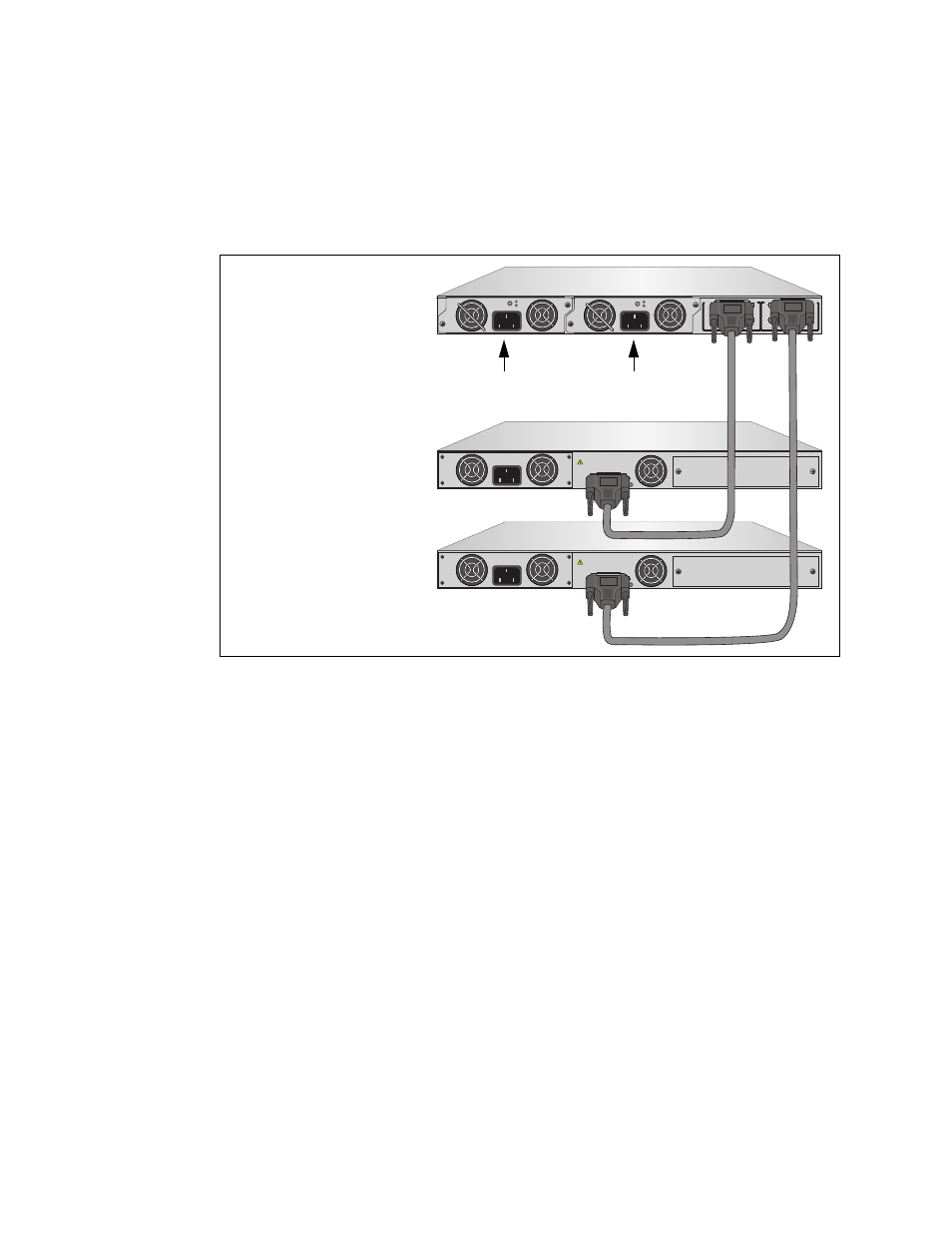

Figure 11. Example of Low-power and High-power Switches
When a high-power, non-PoE+ switch is connected to the AT-RPS3000
Chassis, it responds just like a low-power switch. It places its internal
power supply in the redundant state and draws its system power from the
chassis.
In Figure 12 on page 29, the high-power, non-PoE+ AT-x610-48Ts and
AT-x610-48Ts/X Switches are supported by separate power supply
modules, with the AT-x610-48Ts Switch supported by the module in slot A
and the AT-x610-48Ts/XSwitch powered by the module in slot B. If the
chassis stops supplying system power to the switches, they activate their
internal power supplies.
