Allied Telesis AT-GS950/48 - Manual (Page 88)

Chapter 5: Multiple Spanning Tree Protocol
88
MSTP Global Settings
To configure the MSTP global settings, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select the Spanning Tree folder.
The Spanning Tree folder expands.
3. From the Spanning Tree folder, select Protocol Settings.
The Spanning Tree Protocol Settings Page is displayed. See Figure
30.

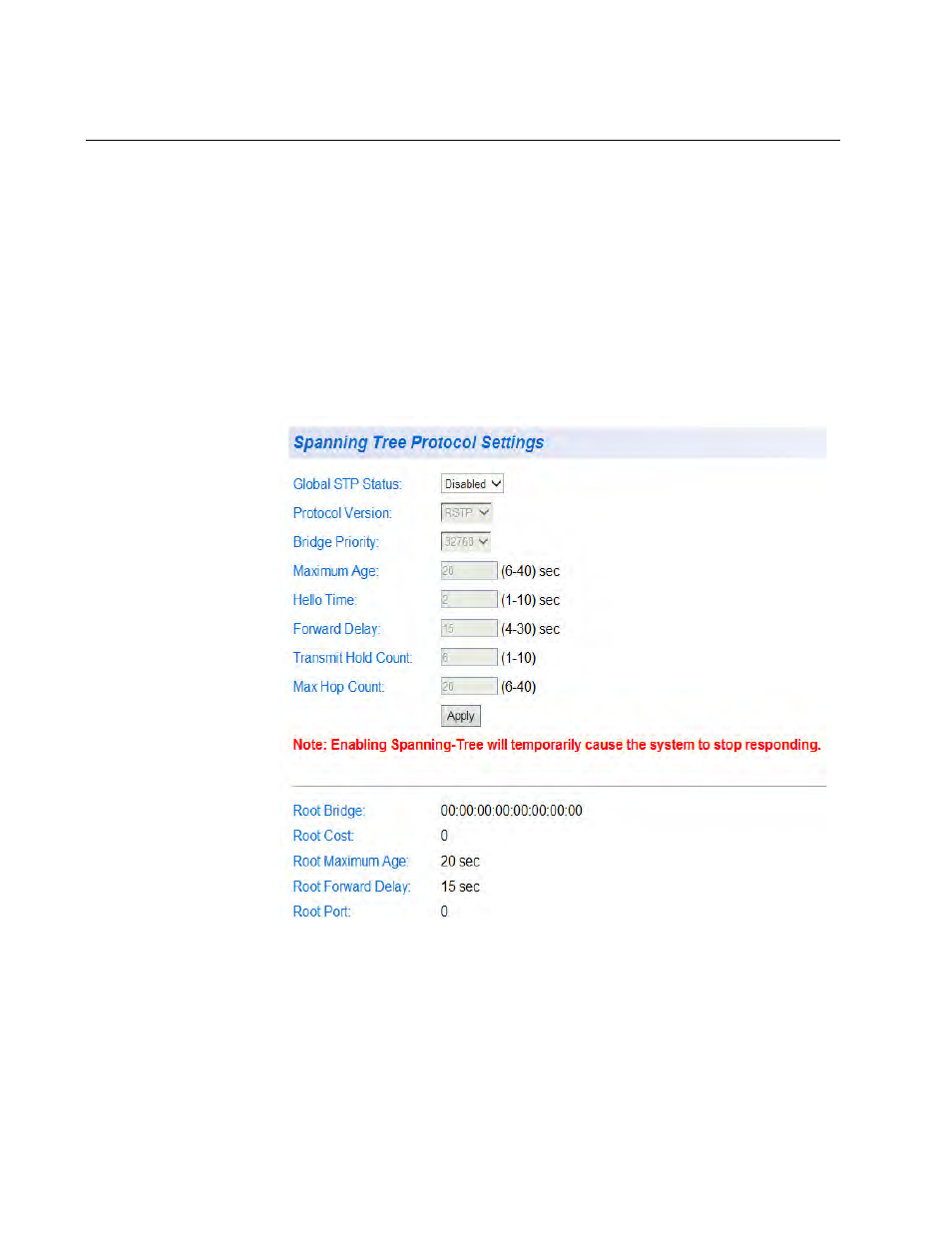

Figure 30. Spanning Tree Protocol Settings Page
The Spanning Tree Protocol Settings page allows you to configure
global MSTP parameters, as well as to view current settings of the
feature.
