Appendix A: MSTP Overview
390
Table 9 shows an example. Assume that you have two regions that contain
the following VLANS:
The 2 regions share 3 VLANs: Accounting, Sales, and Presales. You can
group these 3 VLANs into the same MSTI in each region. For instance, for
Region 1 you might group the 3 VLANs in MSTI 12, and in Region 2 you could
group them into MSTI 16. After they are grouped, you can connect the VLANs
across the regions using a link of untagged/tagged ports as shown in Figure
160.

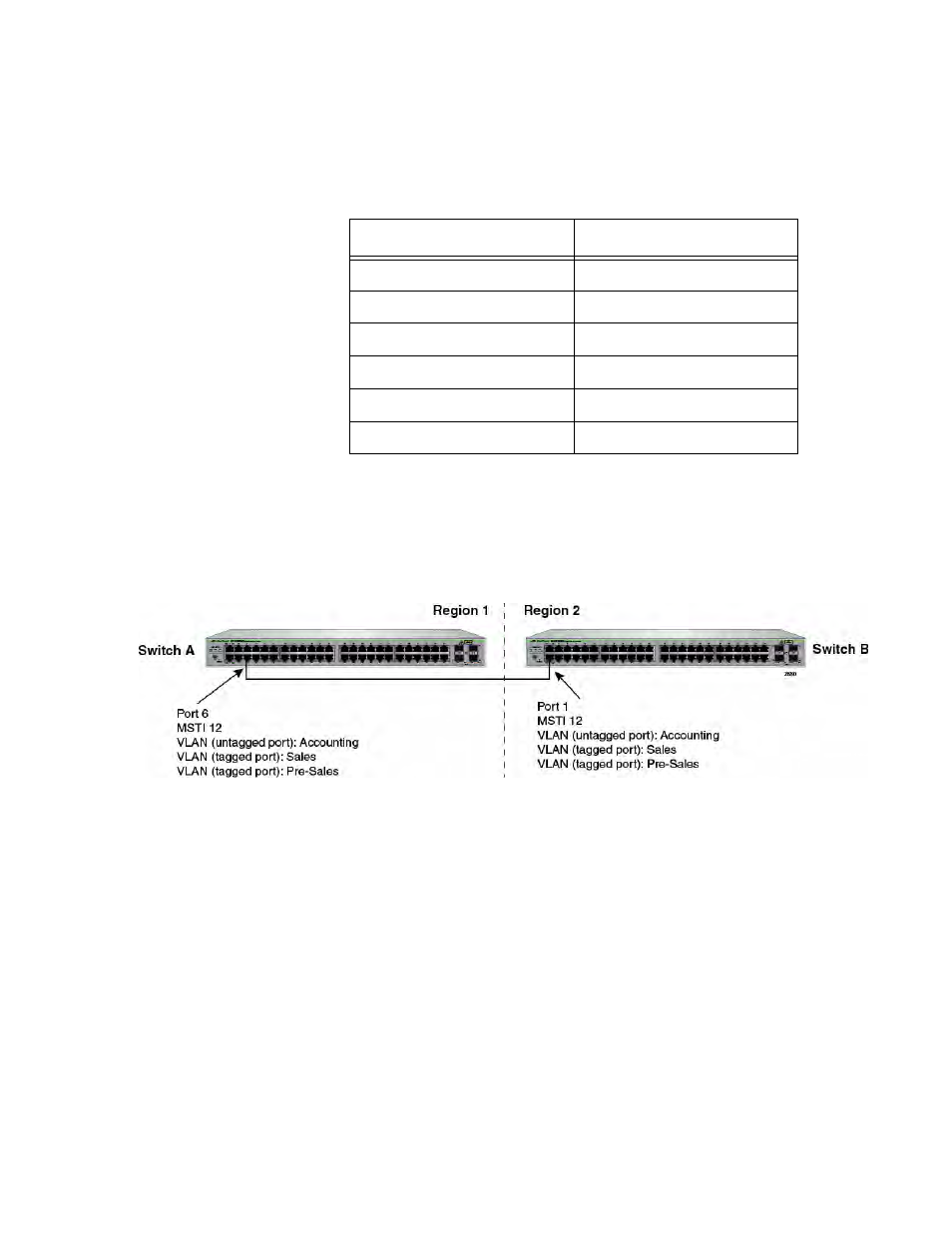

Figure 160. Spanning Regions without Blocking
Table 9. Region VLAN Example
Region 1 VLANs Region 2 VLANs
Accounting Accounting
Sales Sales
Pre-Sales Pre-Sales
Marketing Technical Support
Product Management Software Engineering
Project Management Hardware Engineering
