AT-GS950/48 Web Interface User Guide
167
Create a Tagged
VLAN
To create a tagged VLAN, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Tagged VLAN.

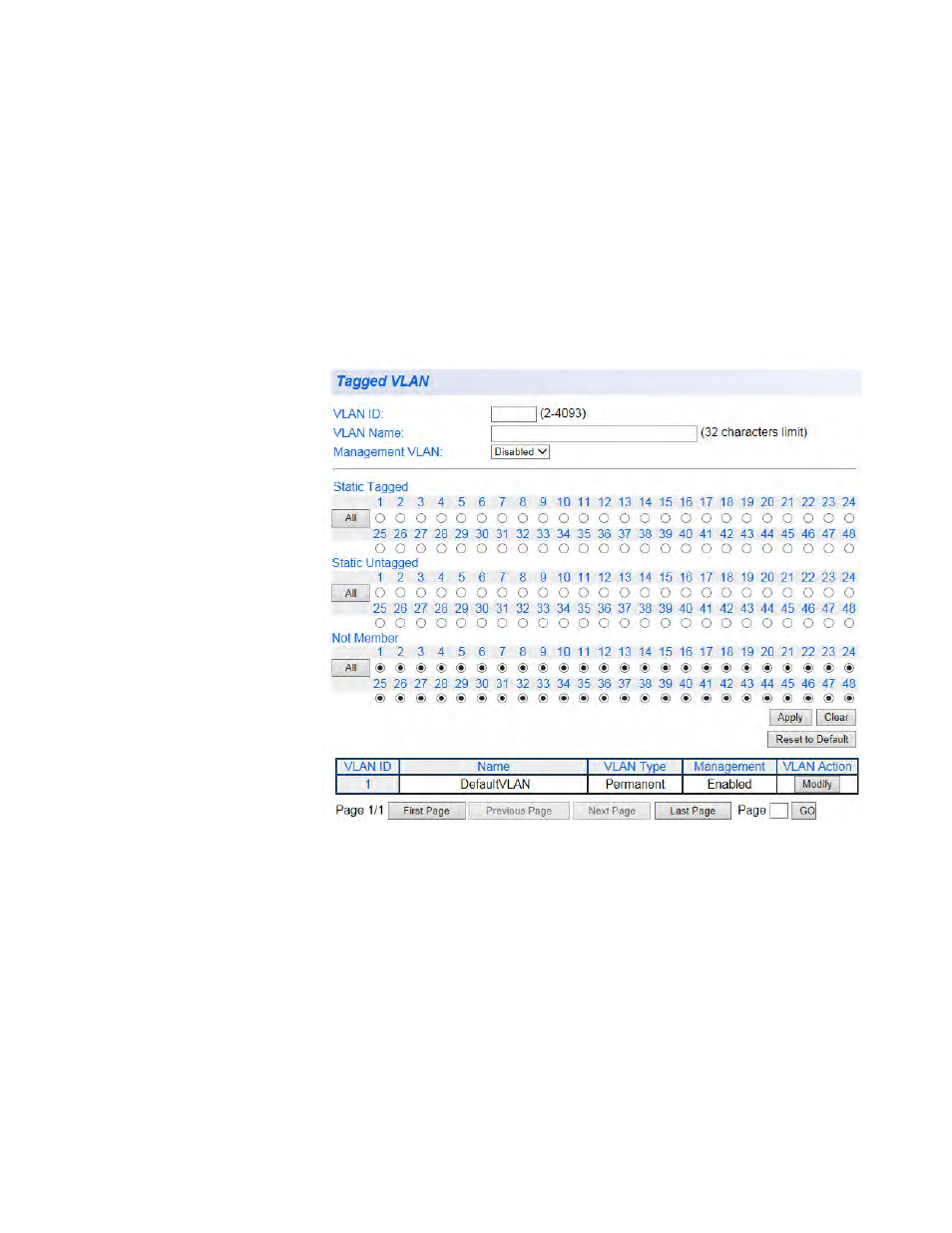

The AT-GS950/48 Tagged VLAN Page is displayed. See Figure 57 for
a partial view of this page.
Figure 57. AT-GS950/48 Tagged VLAN Page
4. Assign a VLAN ID by entering a VLAN ID in the VLAN ID field.
The range for this field is 2 to 4,093. You can create a maximum of 255
tagged VLANs.
5. Assign a name for the VLAN by entering a unique name in the VLAN
Name field.
You can enter a value of up to 32 characters. For more information
about this field, refer to “VLAN Name” on page 159.
6. Set the Management VLAN to one of the following choices from the
pull-down menu:
