Curtis 1234/36/38 Manual,
OS
11
2 — INSTALLATION & WIRING:
High Current Connections
HIGH CURRENT CONNECTIONS
There are five high-current terminals, identified on the controller housing as
B+
,
B-
,
U
,
V
, and
W
.
Table 1 High Current Connections
TERMINAL
FUNCTION
B+
Positive battery to controller.
B-
Negative battery to controller.
U
Motor phase U.
V
Motor phase V.
W
Motor phase W.

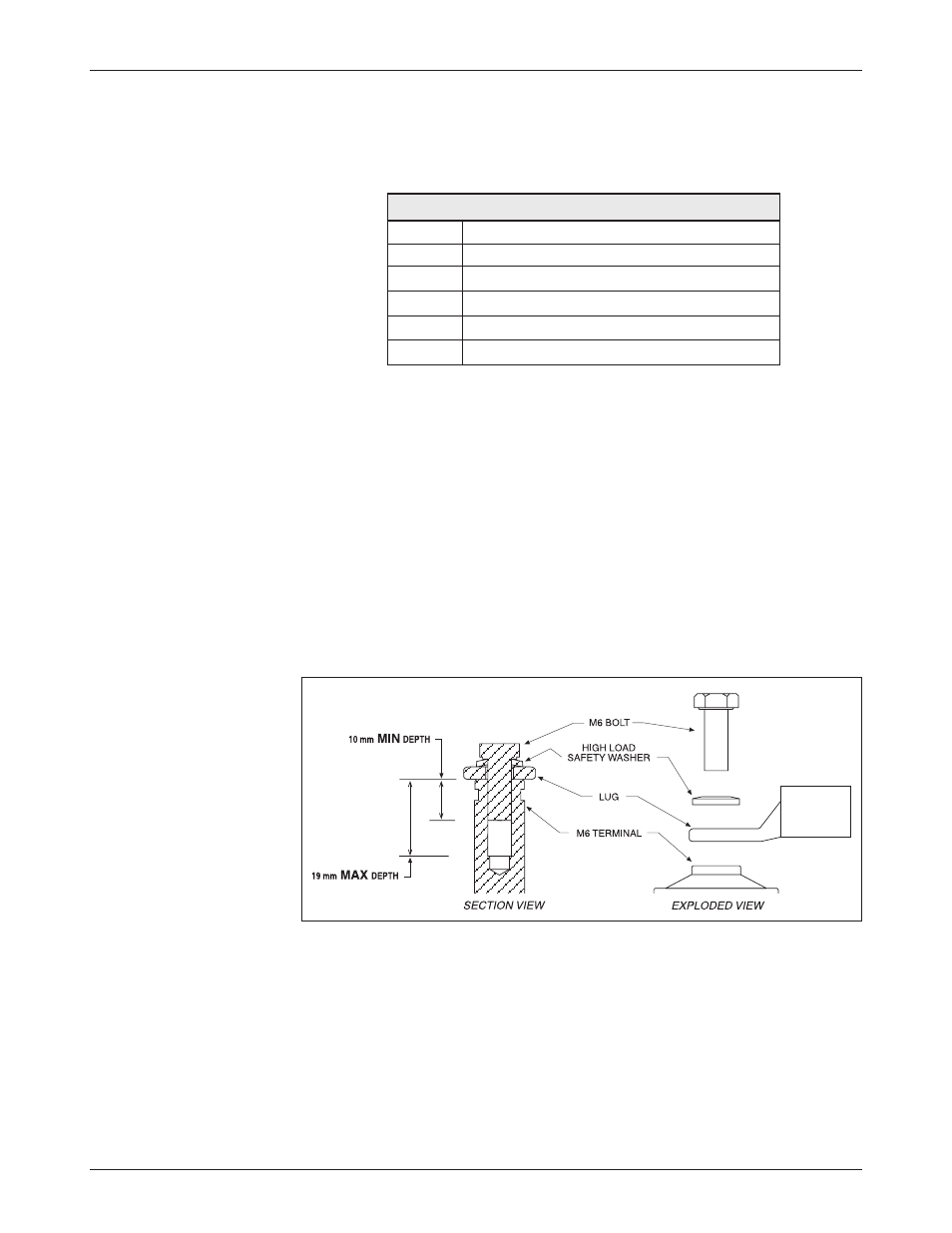

Lug assembly: 1234 models
Five aluminum M6 terminals are provided. Lugs should be installed as follows,
using M6 bolts sized to provide proper engagement (see diagram):
• Place the lug on top of the aluminum terminal, followed by
a high-load safety washer with its convex side on top. The
washer should be a
SCHNORR
416320, or equivalent.
• If two lugs are used on the same terminal, stack them so the
lug carrying the least current is on top.
• Tighten the assembly to 10.2 ±1.1 N·m (90 ±10 in-lbs).
