Campbell Scientific HydroSense II Support Software User Guide User Manual
Page 59
Section 5. Settings and Configuration

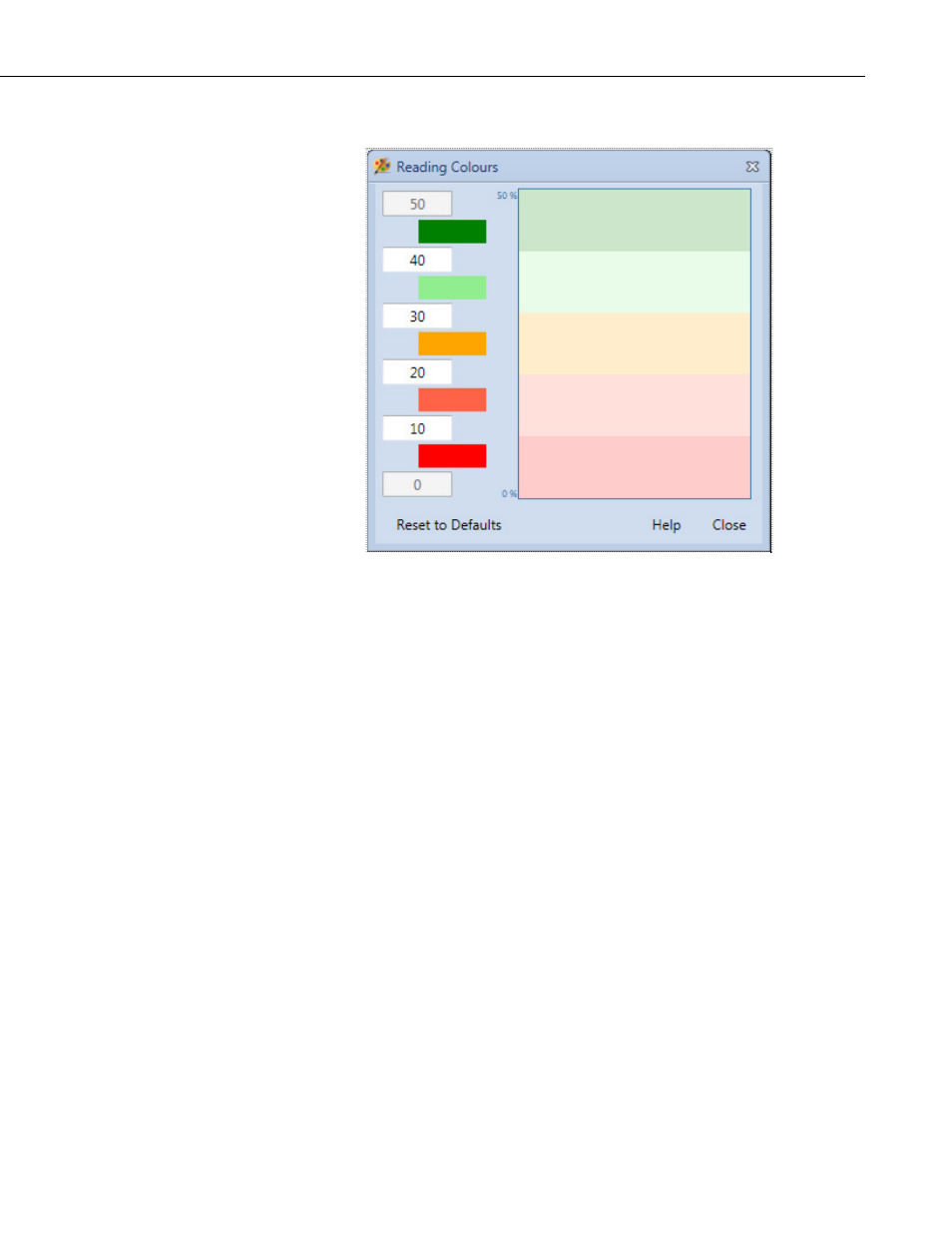

The window contains six edit boxes and five color buttons.
Each color button is positioned between two edit boxes. The values in the edit
boxes represent the upper and lower VWC limits for the reading color shown
on the color button between them.
In the default configuration, the color RED is positioned between the values 0
and 10. This means that measurements between 0% and 10% VWC are
assigned the color RED.
To change the levels at which colors begin and end, edit the values in the edit
boxes. The preview at the right of the window will update automatically. The
edit boxes will accept only numeric digits and will show a red outline when an
invalid entry has been made.
The 0% and 50% edit boxes are disabled; these represent the minimum and
maximum output from the sensor and cannot be edited.
5-9
