Section 4. Viewing Data
4.5.5.1 Zones

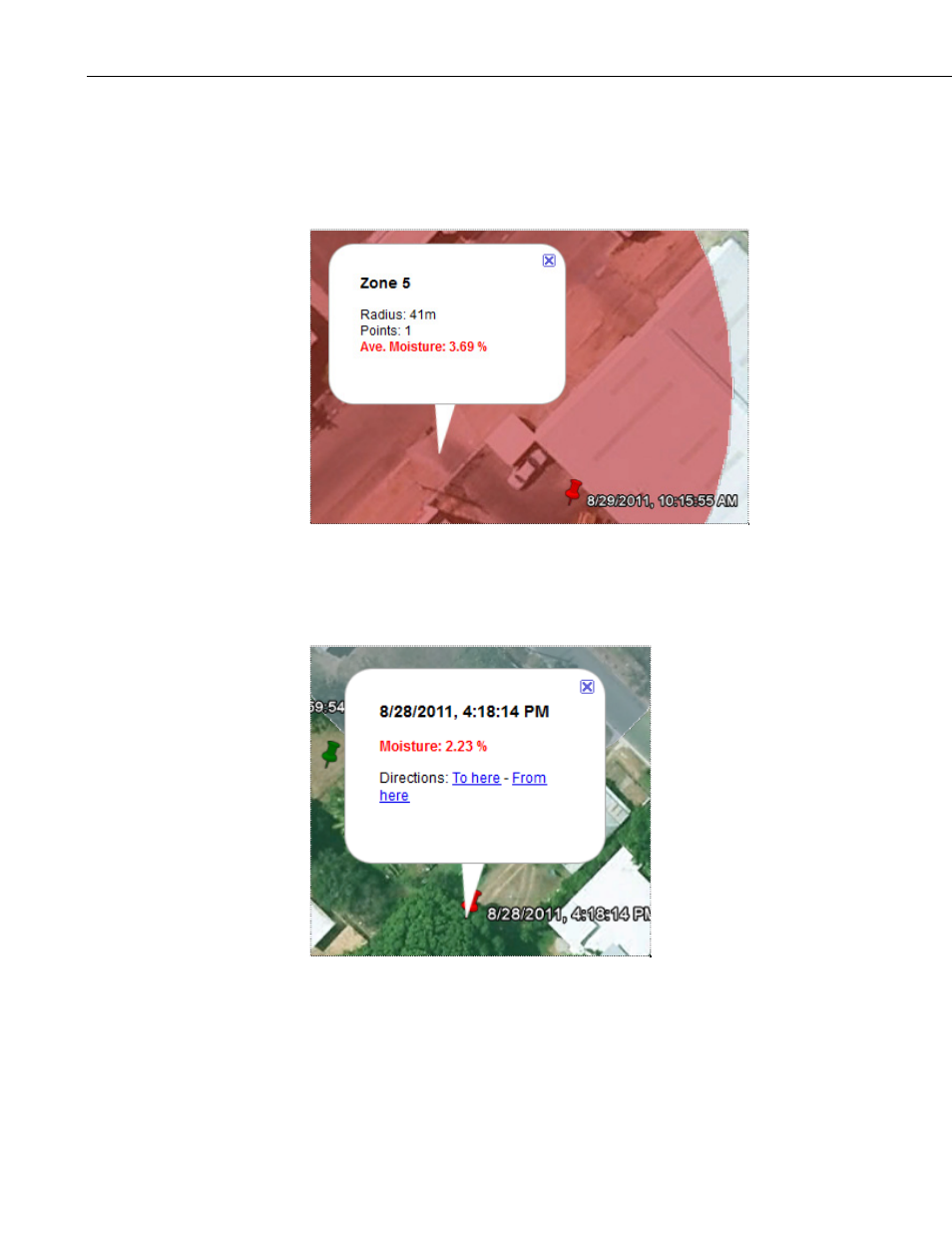

Zones are displayed to scale as colored circles. Circle color is determined by
the average VWC of all points in a zone. Click the zone to view an infotip
with more information about the zone.
4.5.5.2 Measurements
Measurements are displayed as pin markers in Google Earth. Each marker will
be colored according to the VWC measured at that point. Click on one of the
markers to view an infotip with more information about the measurement.
