Page 30
Section 4. Viewing Data
4.2 Showing / Hiding Zones

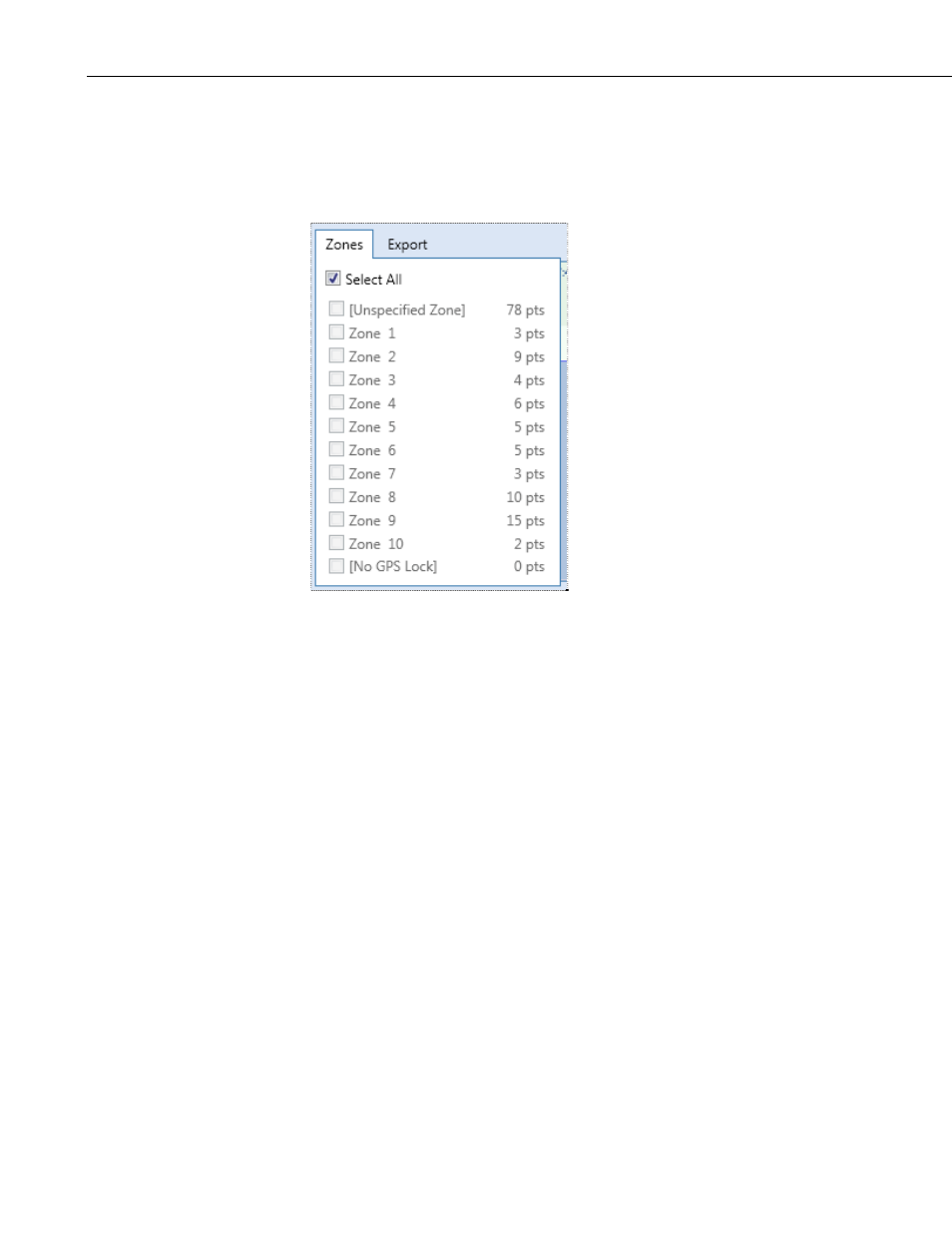

Zones menus in the Data and Chart tabs facilitate showing or hiding
measurements by zone.
By default, all zones are shown and listed in alphabetical order; clear the Select
All checkbox to enable individual zone checkboxes.
Clearing individual zone checkboxes will remove measurements from those
zones. If the Select All checkbox is cleared and no individual zones are
selected, no data are displayed.
The [Unspecified Zone] is a special zone that contains all the points that are not
located in any of the other zones. The [No GPS Lock] zone is a special zone
that contains all the points that were collected without positional information.
4-4
