Section 4. Viewing Data
infotip is displayed listing time the measurement was made, VWC in percent
(%), and the zones to which the measurement belongs.
The background of the chart is a gradient of color defaults used in the
HydroSense II software. This is the coloring scheme used as the background
for rows in the Data tab and used to color measurements and zones in the Map
tab. To change these colors, see
SECTION 5.3 Measurement Colors
(p. 5-7).
3. Timeline
The timeline is used to scroll the chart as well as zoom in and zoom out. For
more information on how to use the timeline, see
SECTION 4.1 Using the
4.4.2 Export Menu

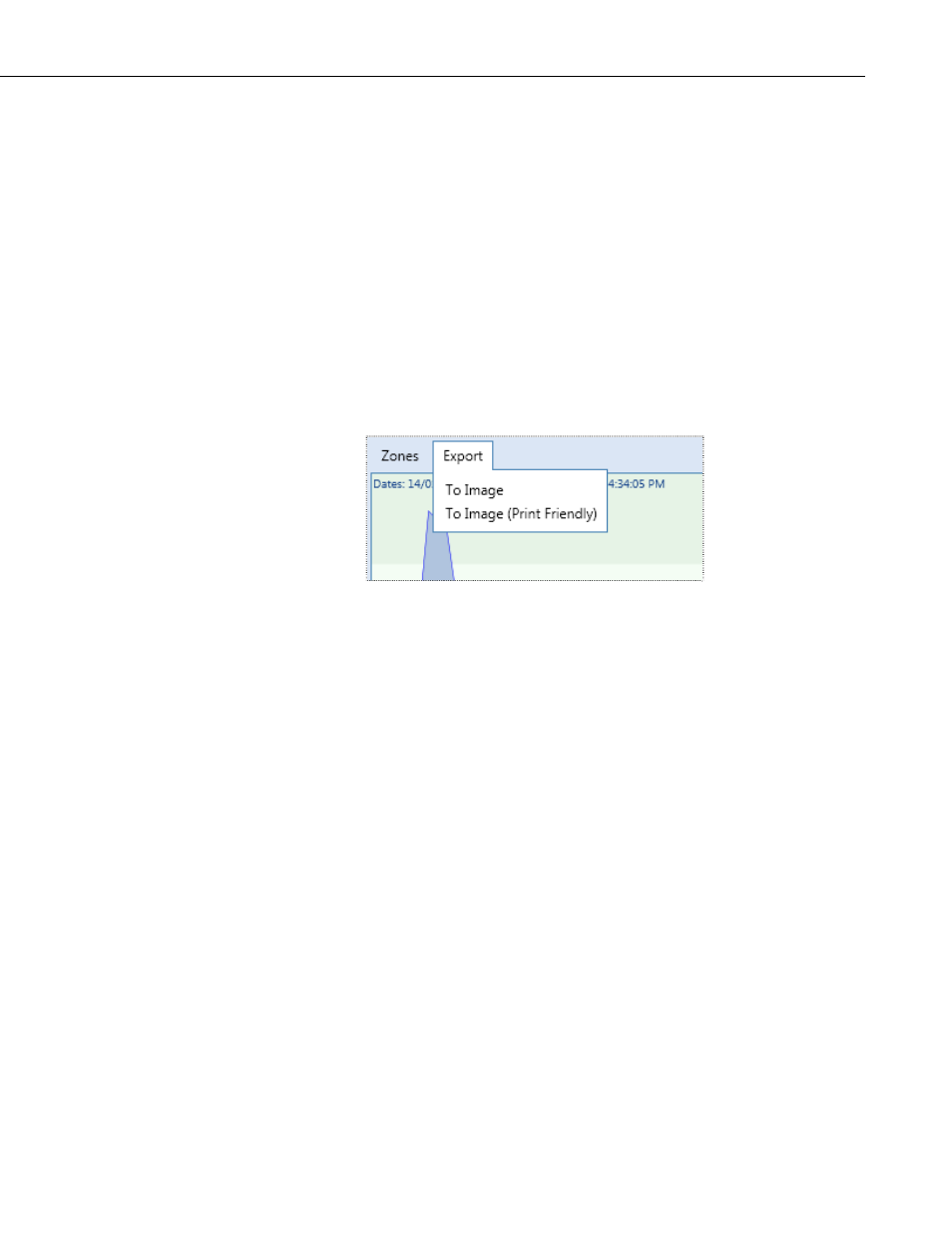

The Export menu can be found at the upper-left of the Chart tab.
The Export menu facilitates exporting the current chart to a color or black and
white image file. Clicking on either of the commands opens a Save As dialog
box to choose the location to which to export the file. The file can be saved as
.png, .jpg, or .bmp. Following are samples of the two image outputs.
4-11
