Page 48: Zone editing tools, P. 4-22) f

Section 4. Viewing Data
Radius
This field specifies the radius of the zone in meters. This field only accepts
numeric characters (numbers and the period character “.”). The minimum
allowable zone radius is 3 m.
Centre Latitude and Centre Longitude cannot be edited from the Edit Zone
Settings window. To change the location of a zone, use the Move Zone tool in
the map as described in
SECTION 4.5.6.1 Zone Editing Tools
4.5.6.1 Zone Editing Tools

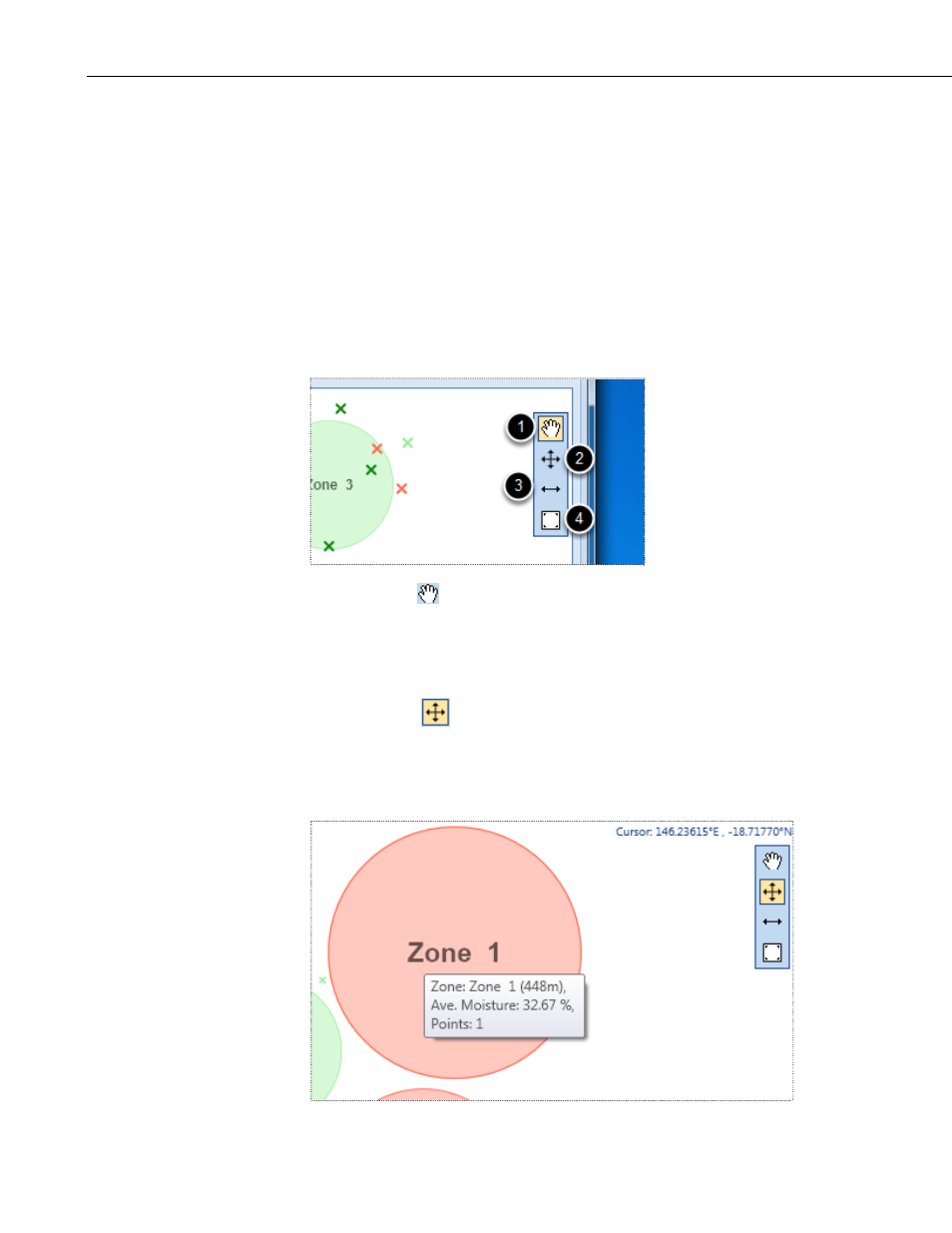

The toolbar at upper-right of the map contains tools to control map position
and edit zones.
1. Drag Mode
By default, the hand icon is selected, so the map is in drag mode by default.
Clicking and dragging anywhere on the map pans the view. Moving the mouse
wheel while pausing over the map zooms the view in and out.
2. Move Mode
Clicking the move tool puts the map in Move Mode. Clicking and dragging on
any zone makes the zone move with the pointer. This tool is used to reposition
zones on the map.
4-22
