Section 4. Viewing Data
4.3 Data Tab
4.3.1 Records Display

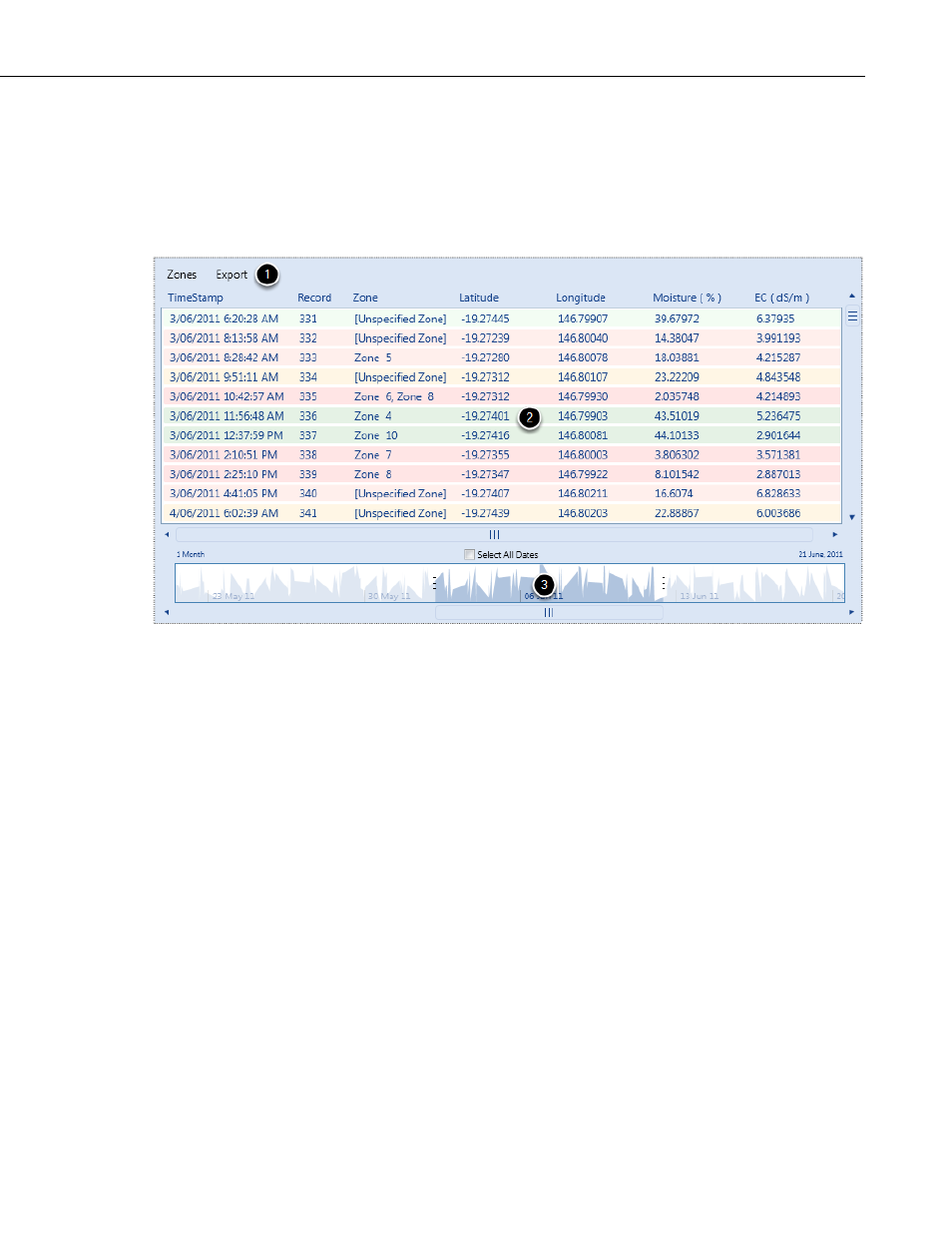

The Data tab displays all records downloaded for the current device in detail.
The tab has three sections.
1. Menu Bar
The menu bar has a Zones menu and an Export menu. The Zones menu allows
the user to display or hide measurements by zone. See
SECTION 4.2 Showing
(p. 4-4) for more information.
The Export menu allows the user to output a .csv file containing the
measurements currently in view. See
SECTION 4.3.3 Export Menu
(p. 4-9) for
more information.
2. Data List
The data list contains measurements downloaded from the HydroSense II.
Measurements shown in the list can be filtered using the Zones menu or the
timeline.
Row color indicates a range of volumetric water contents. Colors default to red
for low soil water, yellow for midrange soil water, and green for high soil
water. For information on customizing colors, see
SECTION 5.3 Measurement
(p. 5-7).
4-5
