22
PAXC & I: SETPOINT RESET WHEN SPn+1 DEACTIVATES
PAXC & I: SETPOINT RESET WHEN SPn+1 ACTIVATES
22




Select

, so the setpoint output will deactivate (reset) when SPn +1
activates. (Example: SP1 deactivates when SP2 activates and SP4 when SP1
activates.) The last setpoint will wrap around to the first.




Select

, so the setpoint output will deactivate (reset) when SPn +1
activates and then times out (deactivates). This function may only be used if the
SPn+1 is programmed for Setpoint Action of

. (Example SP1 deactivates
when SP2 is activated and then times out.) The last setpoint will wrap around
to the first.
 
 

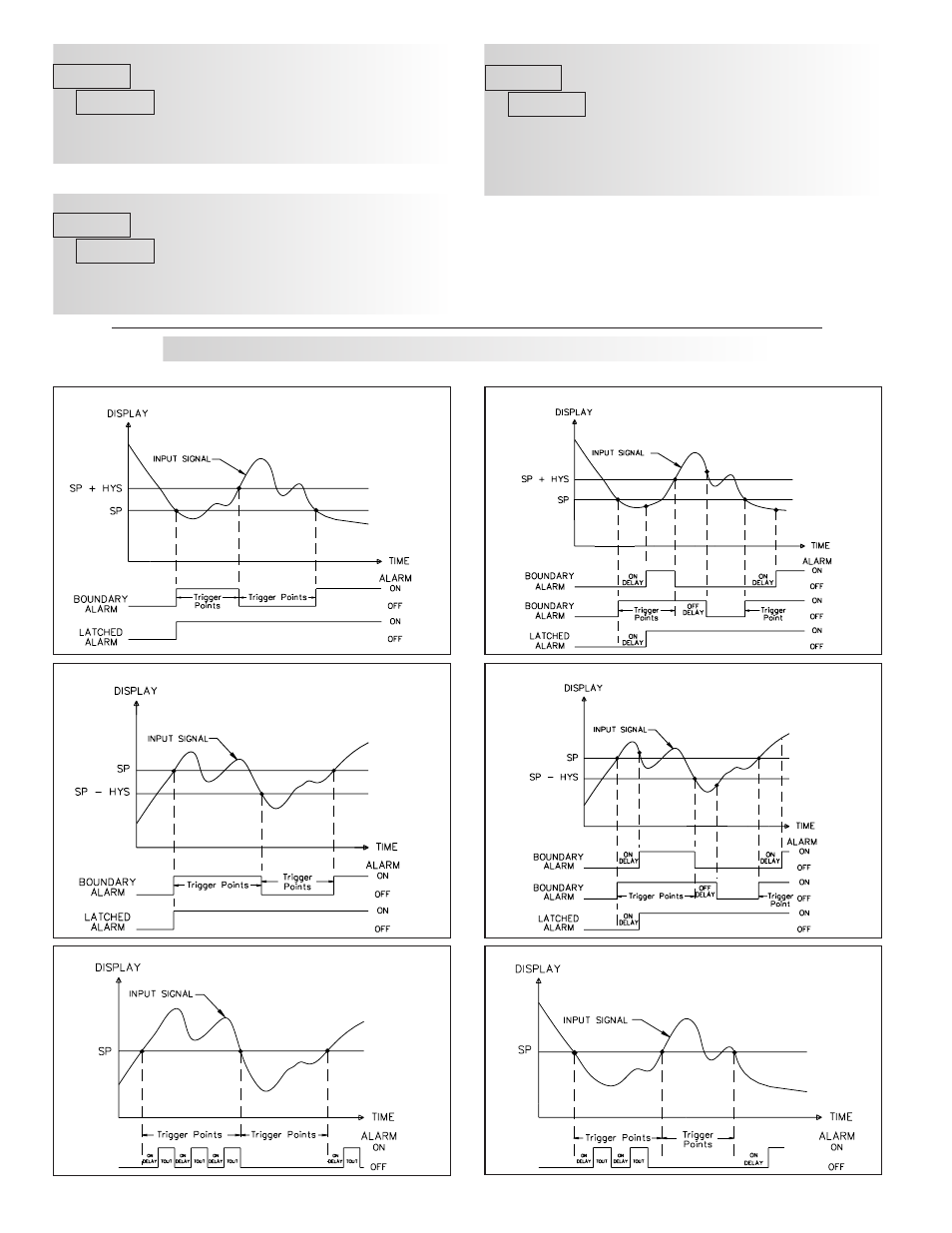

(For Reverse Action, The Alarm state is opposite.)
LOW ACTING WITH NO DELAY LOW ACTING WITH DELAY
HIGH ACTING WITH TIMEOUT LOW ACTING WITH TIMEOUT
HIGH ACTING WITH NO DELAY HIGH ACTING WITH DELAY
PAXC & I: SETPOINT RESET WITH DISPLAY RESET




Select

, so the setpoint output will deactivate (reset) when the Setpoint
Assignment (

) counter display resets. The only exception is if the
assigned counter is reset by a Counter Auto reset generated by another setpoint.
 
PAXR & I: SETPOINT (ALARM) FIGURES FOR RATE
