CanOBD2&1

5

E

About the CanOBD2&1 Scan Tool

BATTERY INSTALL / REPLACEMENT / ADJUSTMENTS/SETTINGS & DTC LIBRARY

BATTERY INSTALLATION / REPLACEMENT

Replace batteries when the battery symbol

is visible on display

and/or the 3 LEDS are all lit and no other data is visible on screen.

1. Locate the battery cover on the back of the CanOBD2&1 Scan Tool.

2. Slide the battery cover off (use your fingers).

3. Replace batteries with three AA-size batteries (for longer life, use

Alkaline-type batteries).

4. Reinstall the battery cover on the back of the CanOBD2&1 Scan Tool.

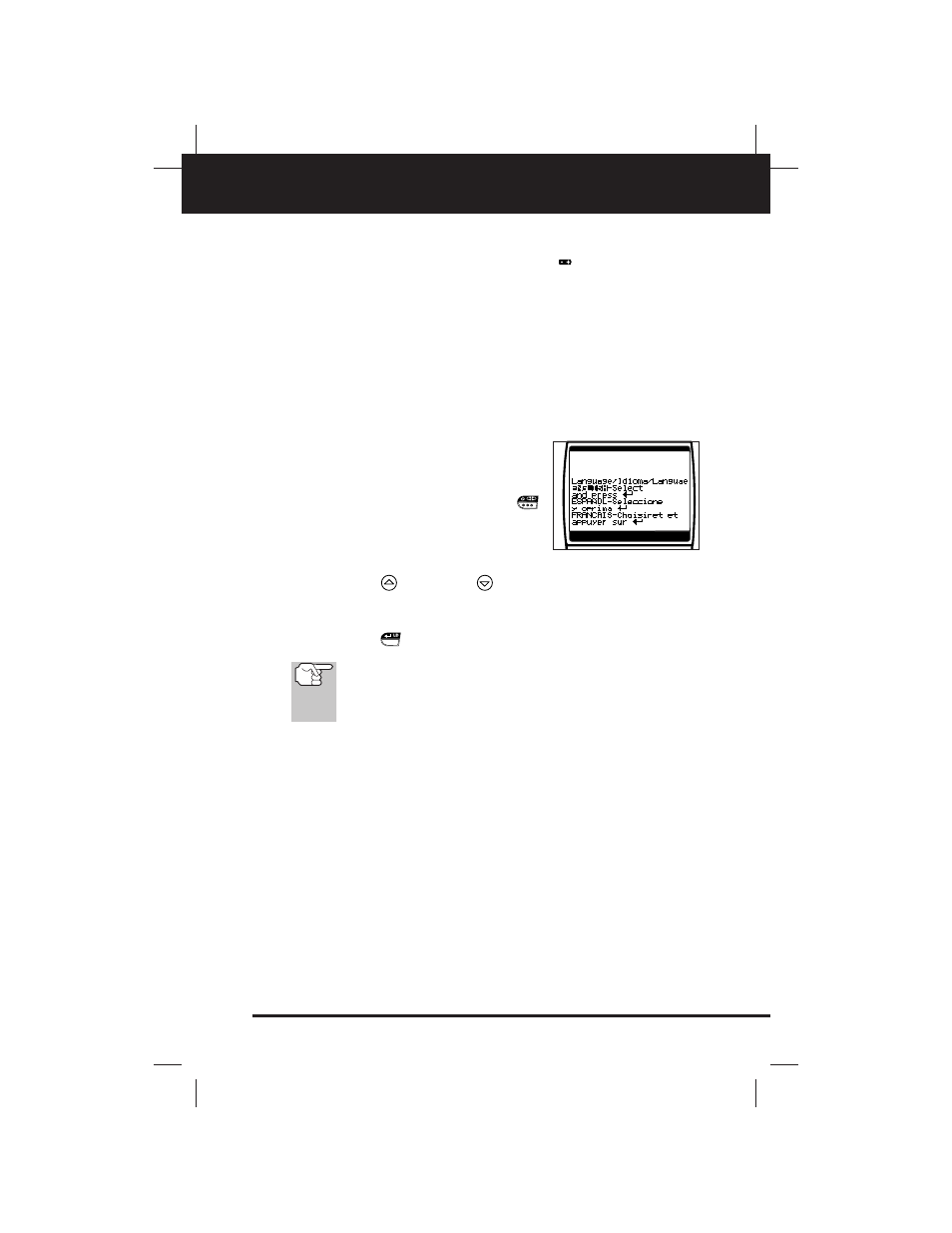

Language Selection After Battery Installation

The first time the unit is turned on, you
must select the desired display language
(English, French or Spanish) as follows:

1. Press and hold the POWER/LINK

button for approximately 3 seconds to
turn the CanOBD2&1 Scan Tool “ON.”

The Select Language screen displays.

2. Use the UP

and DOWN

buttons, as necessary, to highlight

the desired display language.

3. When the desired display language is selected, press the

ENTER/LD

button to confirm your selection.

After the initial language selection is performed, it, as well as
other settings, can be changed as desired. Proceed to
“ADJUSTMENTS/SETTINGS AND DTC LIBRARY” below for
further instructions.

ADJUSTMENTS/SETTINGS AND DTC LIBRARY

The CanOBD2&1 Scan Tool lets you make several adjustments and
settings to configure the tool to your particular needs. It also contains
an OBD2 DTC Library that allows you to search for DTC definitions.
The following functions, adjustments and settings can be performed
when the CanOBD2&1 Scan Tool is in “MENU Mode”:

Adjust Brightness: Adjusts the brightness of the display screen.

Display Backlight: Turns the display backlight on and off.

DTC Library: Lets you search the library of OBD2 DTC definitions.

Select Language: Sets the display language for the CanOBD2&1
Scan Tool to English, French or Spanish.

Unit of Measurement: Sets the Unit of Measure for the
CanOBD2&1 Scan Tool’s display to USA or metric.

Menu Exit: Exits “MENU Mode”.
