10

CanOBD2&1

E

CanOBD2&1 Scan Tool Controls

CONTROLS AND INDICATORS

CONTROLS AND INDICATORS

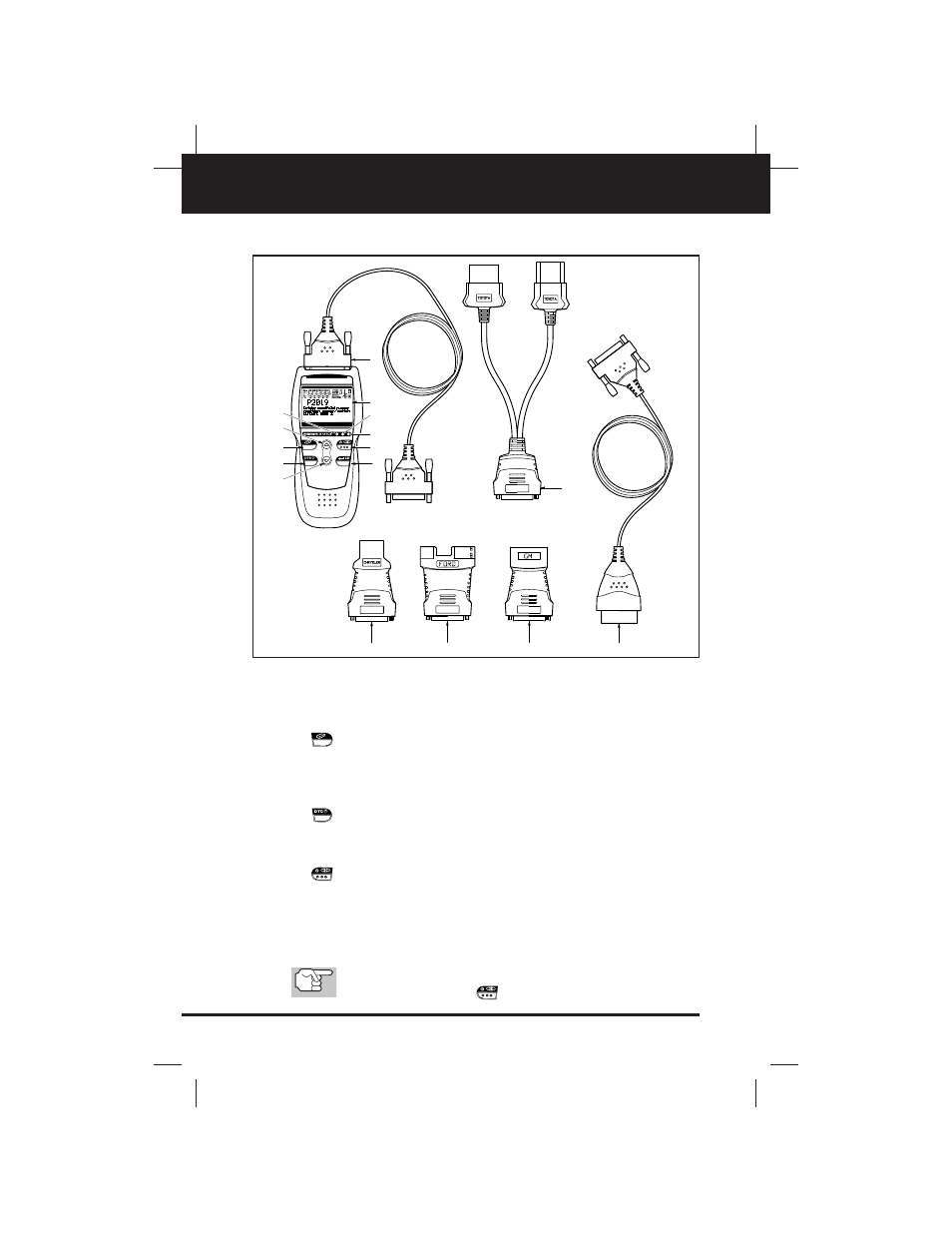

See Figure 1 for the locations of items 1 through 16, below.

1.

ERASE button - Erases Diagnostic Trouble Codes (DTCs),

and “Freeze Frame” data from your vehicle’s computer, and resets
Monitor status. (“Freeze Frame” data and Monitor status are applicable
to OBD2 systems only.)

2.

DTC SCROLL button - Displays the DTC View screen and/or

scrolls the LCD display to view DTCs when more than one DTC is
present.

3.

POWER/LINK button - When the CanOBD2&1 Scan Tool IS

NOT connected to a vehicle, turns the CanOBD2&1 Scan Tool “On
and “Off”. When the CanOBD2&1 Scan Tool is connected to a vehicle,
links the CanOBD2&1 Scan Tool to the vehicle’s PCM to retrieve diag-
nostic data from the computer’s memory. (The LINK function is appli-
cable to OBD2 systems only.)

To turn the CanOBD2&1 Scan Tool "On", you must press and
hold the POWER/LINK

button for approximately 3 seconds.

1

2

5

3

9

4

16

11

12

13

14

15

6

7

8

10

Figure 1. Controls and Indicators
