CanOBD2&1 Scan Tool Controls

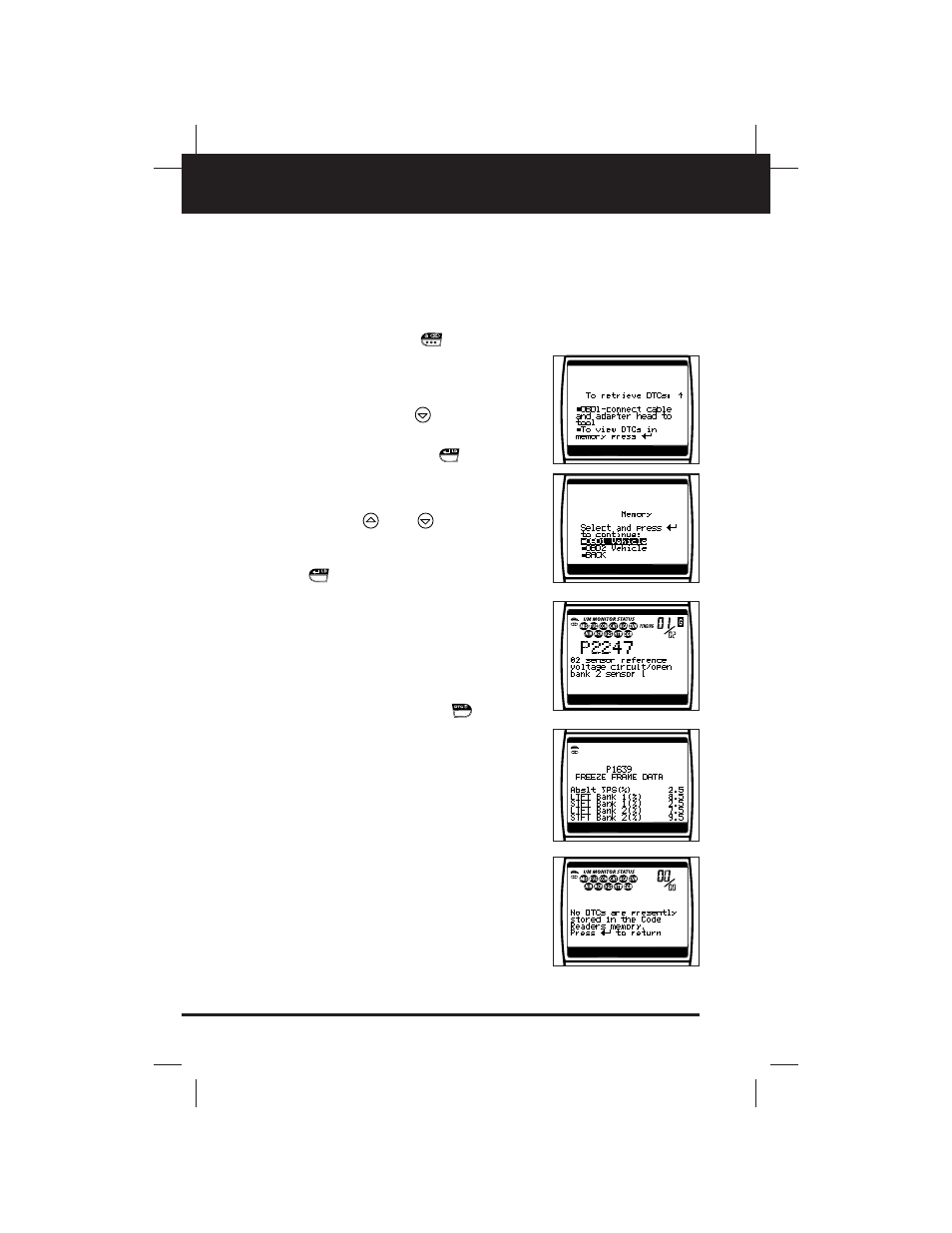

VIEWING DTCs IN THE CANOBD2&1 SCAN TOOL’S MEMORY

VIEWING DTCs IN THE CANOBD2&1 SCAN TOOL’S
MEMORY

To view DTC’s and other diagnostic data stored in the CanOBD2&1
Scan Tool’s memory, do the following:

1. With no DLC cable connected to the CanOBD2&1 Scan Tool, press

the POWER/LINK

button to turn the CanOBD2&1 Scan Tool

“on”.

The “To Retrieve DTCs” screen shows
on the CanOBD2&1 Scan Tool’s dis-

play. Press the

button for instruc-

tions to view DTC’s in memory.

2. Press the ENTER/LD

button.

The “Select OBD System” screen dis-
plays.

3. Use the

and

keys to highlight

and select your vehicle’s OBD system
(OBD1 or OBD2). Press the ENTER/LD

button to continue.

Select “Back” if you wish to return to
the Main Menu.

4. If DTCs are present in the CanOBD2&1

Scan Tool’s memory, the first stored
DTC will display on the screen.

If more than one DTC is present, use
the DTC SCROLL

button to

scroll through the DTC’s.

5. For OBD2 systems only - Freeze

Frame Data (if available) will display
after DTC #1.

6. If no DTCs are in the CanOBD2&1 Scan

Tool’s memory, a “No DTC’s are
presently stored in the Code Readers
memory” message displays.
