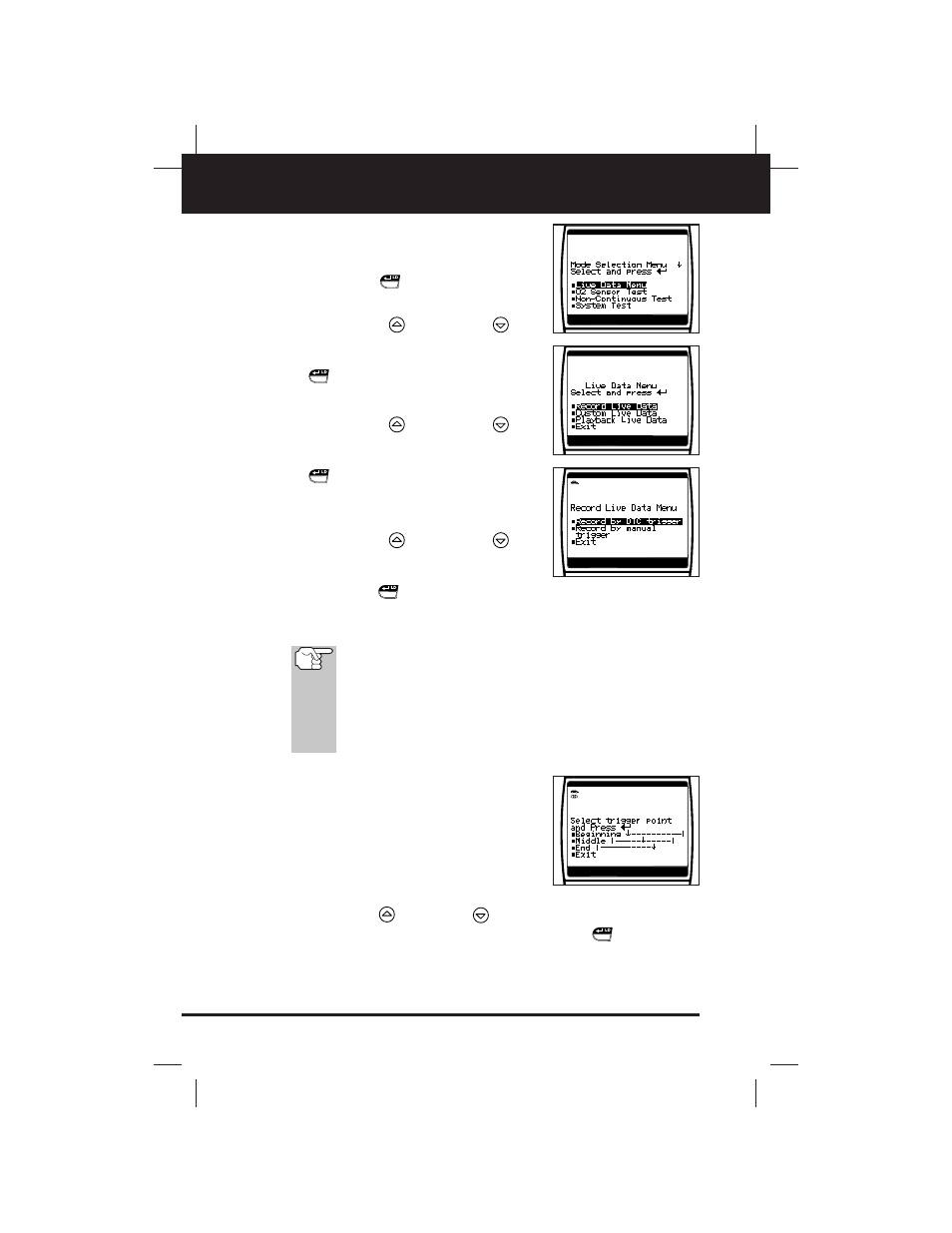

OBD2 Live Data Mode

RECORDING (CAPTURING) LIVE DATA

CanOBD2&1

1. With the CanOBD2&1 Scan Tool in "Live

Data" mode (see Viewing Live Data on
page 37 for details), press and hold the

ENTER/LD

button until the "Mode

Selection Menu" appears.

2. Use the UP

and DOWN

but-

tons, as necessary, to highlight Live
Data Menu, then press the ENTER/LD

button.

■

The "Live Data Menu" displays.

3. Use the UP

and DOWN

but-

tons, as necessary, to highlight Record
Live Data, then press the ENTER/LD

button.

■

The "Record Live Data Menu" dis-
plays.

4. Use the UP

and DOWN

but-

tons, as necessary, to highlight Record
by DTC trigger, then press the

ENTER/LD

button.

5. When the "Record by DTC Trigger" screen displays, select the

desired trigger point as follows:

The CanOBD2&1 Scan Tool is capable of recording approxi-
mately 20 frames of Live Data. Record by DTC trigger lets
you select the point in time at which you wish the
CanOBD2&1 Scan Tool to begin recording Live Data. You can
set the trigger point to record the 20 frames of data before an
event (when the DTC sets), after the event, or in the middle
(10 frames before and 10 frames after the event.

■

Beginning - records approximately
20 frames of Live Data after the DTC
sets.

■

Middle - records approximately 10
frames of Live Data before and 10
frames after the DTC sets.

■

End - records approximately 20 frames
of Live Data before the DTC sets.

6. Use the UP

and DOWN

buttons, as necessary, to select the

desired trigger point, then press the ENTER/LD

button.
