8
P
ORTABLE
B
ASE
S
TATION
To mount the receiver as a portable base station:
1. Thread the provided tripod stem onto the tripod adapter.
2. Mount the tripod adapter unit onto the tripod, leaving the adapter loose
on the tripod.
3. Thread the center hole of the receiver onto the tripod stem.
4. Position the receiver in the desired orientation and tighten the adapter
onto the tripod.
P
OWERING THE
GPS 2500B
Depending on the parts included in your kit, you can the power
the receiver in either of the following ways:
• *12 V battery power cable (terminated with battery clips)
*You can use a 12 V car battery
The receiver is automatically on when connected to a power
source.
To connect a power source to the base station:
1. Connect the provided power cable to power port.
2. Attach the positive and negative leads at the opposite end of the power cable to the positive and
negative terminals of a car battery.
Check the Power LED—a red LED indicates a successful connection and the
receiver has power.

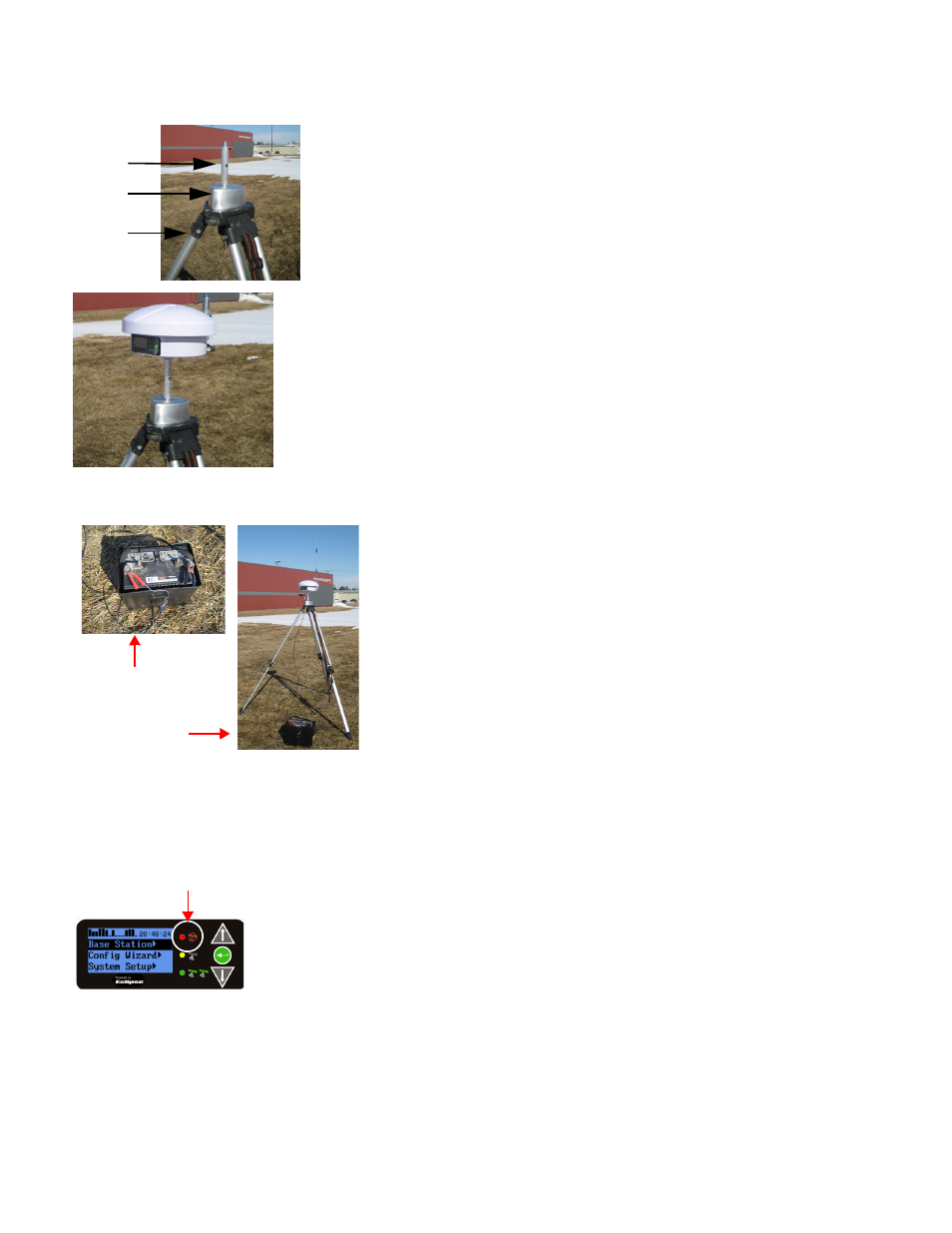

Tripod
Tripod
Tripod
adapter
stem
Power cable connected
to battery
2500B connected
to battery
Power LED is on (red)
