5
GPS 2500/2500B S
MART
A
NTENNA
I
NTRODUCTION D
ISPLAY
P
ANEL

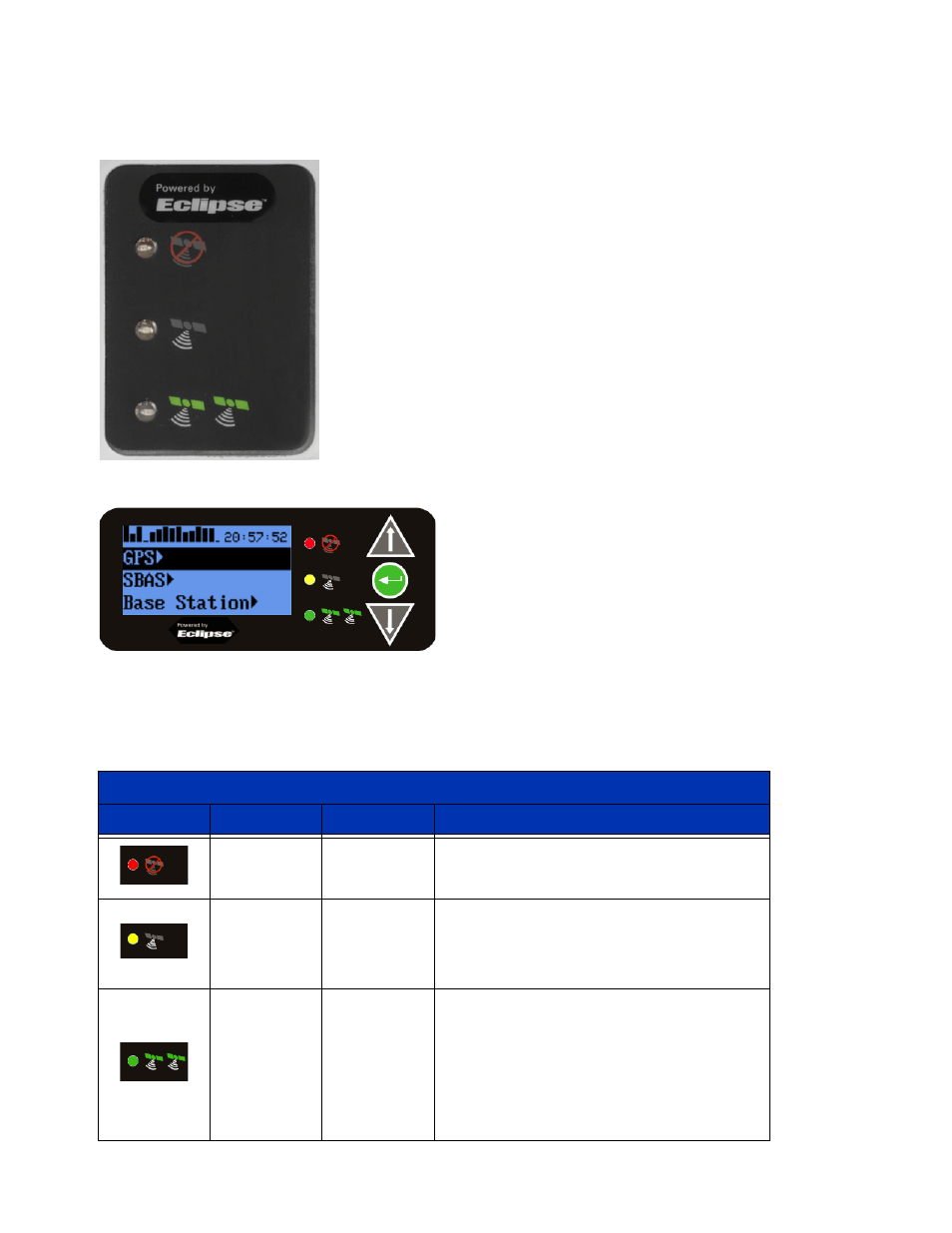

2500 Display Panel
The 2500 display panel consists of LED indicators for power, GPS, and
DGPS.
LEDs are used to indicate power, GPS lock, and DGPS position. There is
2500B Display Panel
The 2500B display panel allows you to select menu
options and view power and GPS status.
Up Arrow button (scroll up through items)
Enter button (select an item)
Down Arrow button (scroll down through items)
LED I
NDICATORS
The 2500/2500B uses LEDs to indicate power, GPS lock, and DGPS position. There is a corresponding
icon to the right of each LED. Table 1-3 describes each LED indicator.
LED Display
LED Function LED Color Description
Power Red Power On
GPS Yellow
GPS Lock
• Solid LED indicates GPS lock
• Blinking LED indicates acquiring data
DGPS Green
DGPS position
• Solid LED indicates differential position
achieved
• Blinking LED indicates broadcast (GPS
2500B) or reception (GPS 2500) of
differential corrections
