PF3000 Cotton Yield Monitor
Ag Leader Technology General
March 2002 1-9
Header Height
Sensor Below is an example of a header height sensor installed underneath a picker
cab. The header height sensor tells the monitor the position of the header so
that when the head is raised on the end rows, the monitor stops counting
area.

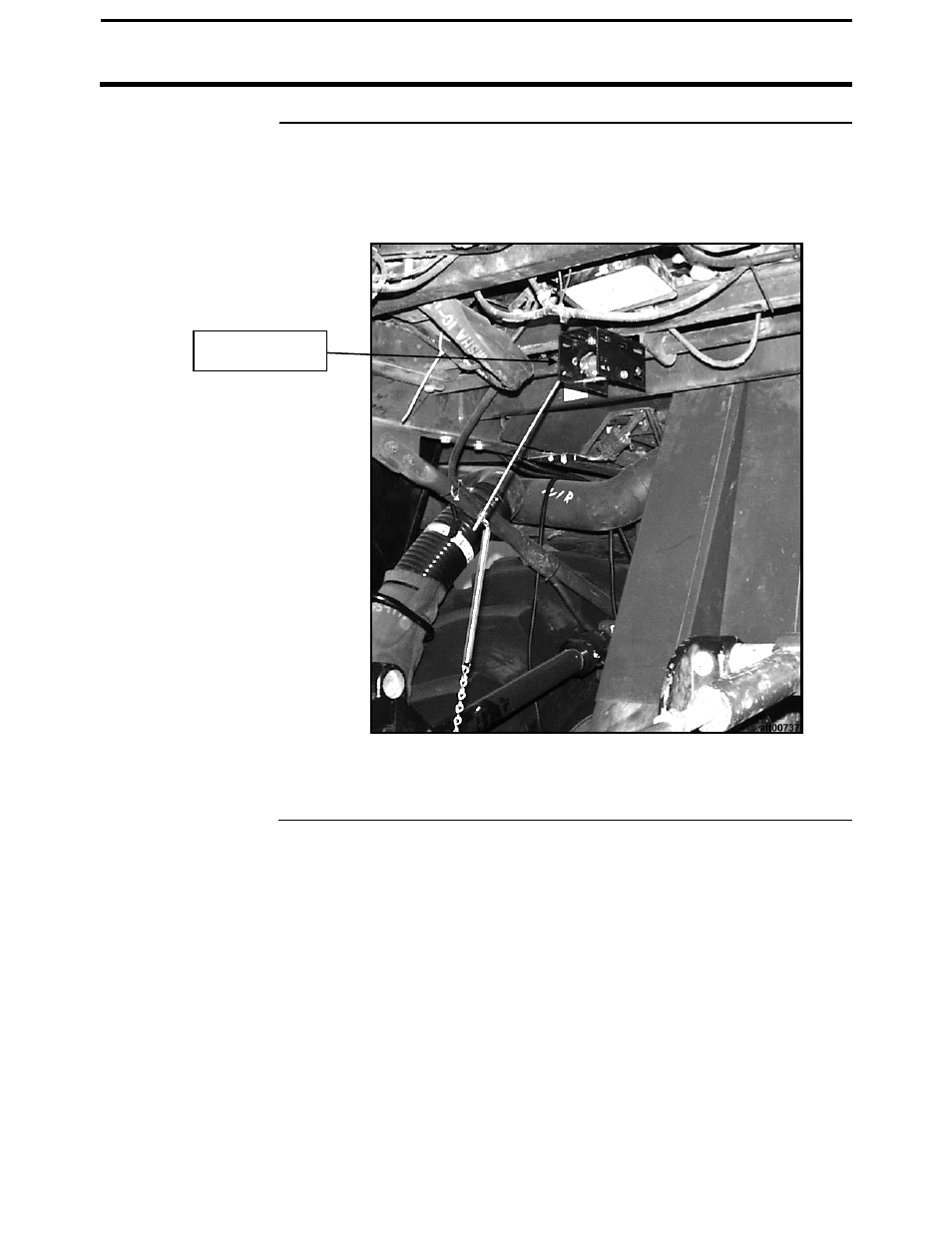

Figure 5: Header Height Sensor
Header Sensor
