General Operation Light Bar
Ag Leader Technology
Straight Parallel
Swathing with
Closed Circuit
Headland
Use this pattern when headlands are required, the ends of the field are
irregularly shaped, and the field is driven in a straight parallel swath
pattern. The headland location is determined by the position of the
headland points along the outside field boundary. Headlands are
generated one swath width along the field boundary according to the
manually entered headland points. The system automatically closes the
headland boundary by connecting the first and last headland point.
The Approach LED illuminates green when the vehicle is inside the
headland boundary. The Approach LED changes to red upon crossing
the headland boundary.
Pattern: Set to NONE.
Headland pattern: Set to Closed Circuit.

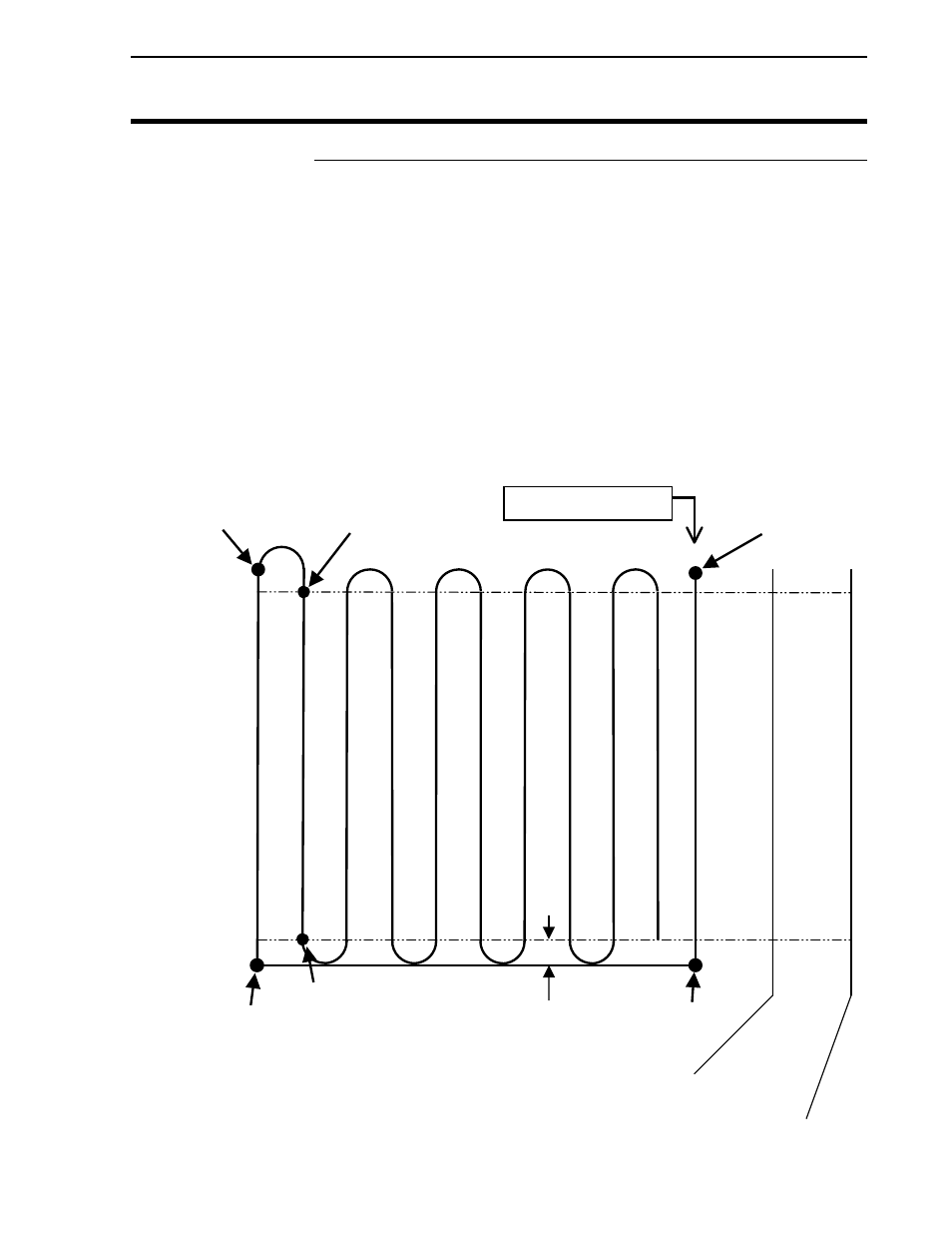

Figure 16
Basic Straight Parallel Swathing with a single Closed Circuit Headland
1/2 Swath Width
Red
Set A
ADD/STRT
Direction of Travel
Set B
ADD/STRT
Red
Green
Approach LED
Color
ADD/STRT
ADD/STRT
May 2001 Rev.2 3000135 20
