Light Bar General Operation
Ag Leader Technology
Straight Parallel
Swathing with A-B
Endzone Headlands
Use this pattern when headlands are required at both ends of a
rectangular field and the field is driven in a straight parallel swath
pattern. Headland locations are determined by the A and B points on
the A-B reference line. Headlands are generated perpendicular to the
A-B line at both ends of the field. The A-B points mark the center of
the headlands at either end of the field.
The Approach LED illuminates green when the vehicle is inside the
headlands boundary. The Approach LED changes to red upon crossing
the headland boundary.
Pattern: Set to NONE.
Headland pattern: Set to A-B Endzone.
NOTE: Before working in a new field, you should reset the
system to clear previous field information.
Set A
Red
Red
Green
Approach LED Color
Set B

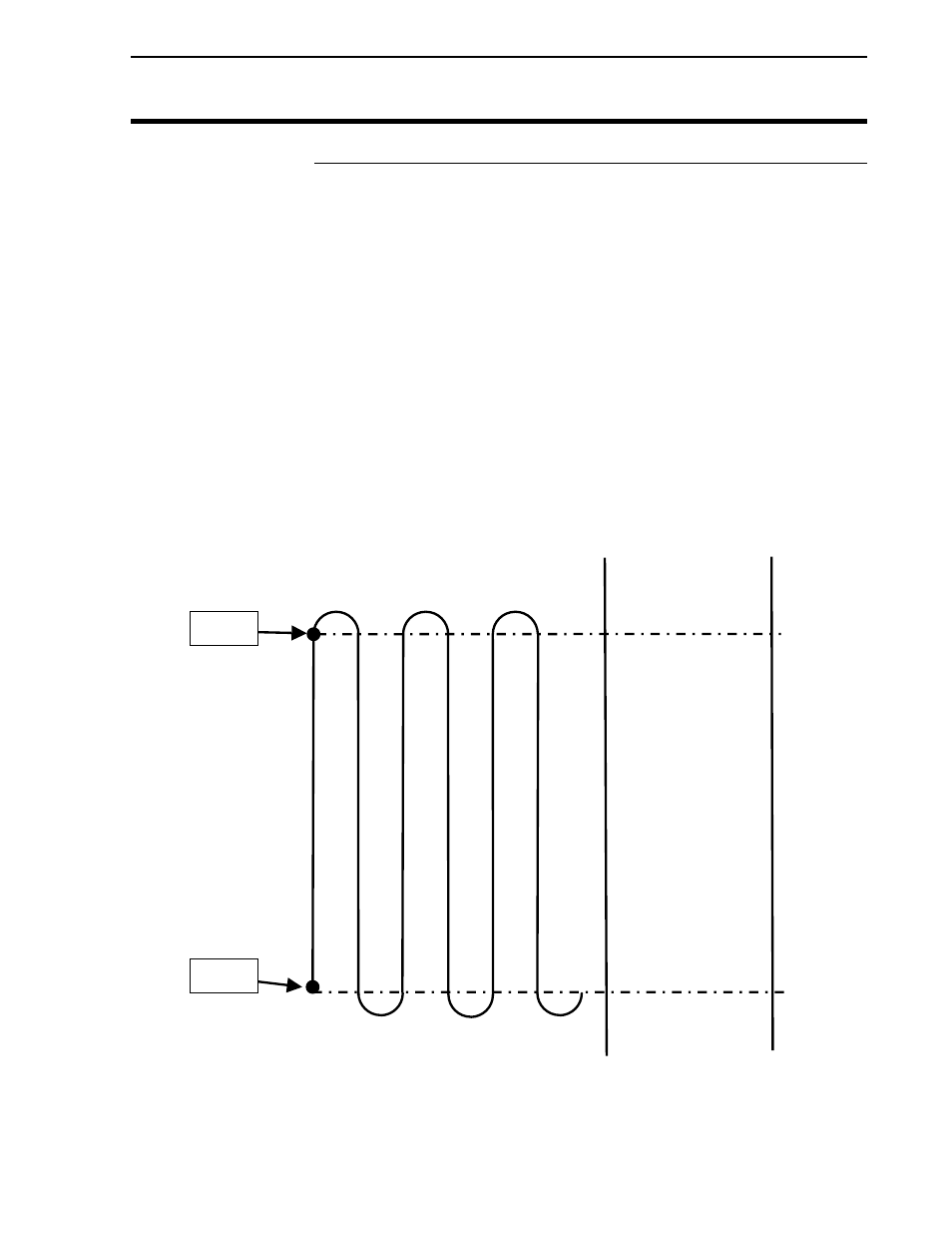

Figure 15.
Basic Straight Parallel Swathing with A-B Endzones as the headland type
May 2001 Rev.2 3000135 19
