Light Bar General Operation
Ag Leader Technology
C-Clamp Pattern-
Curve Following Use this pattern when working an irregularly shaped field. Guidance in
curve following mode is always based on the previous swath after the
initial A-B line is established. The ends of the fields are sprayed as
headlands so the parallel curved passes are made with minimal overlap in
the headland zones.
Pattern: Curved
Headland pattern: Set to C-Clamp
NOTE: Before working in a new field, you should reset the
system to clear previous field information.
IMPORTANT: In order to use the UP or DOWN ARROW,
the Lightbar pass number must be displayed on the screen of
the PF Monitor.

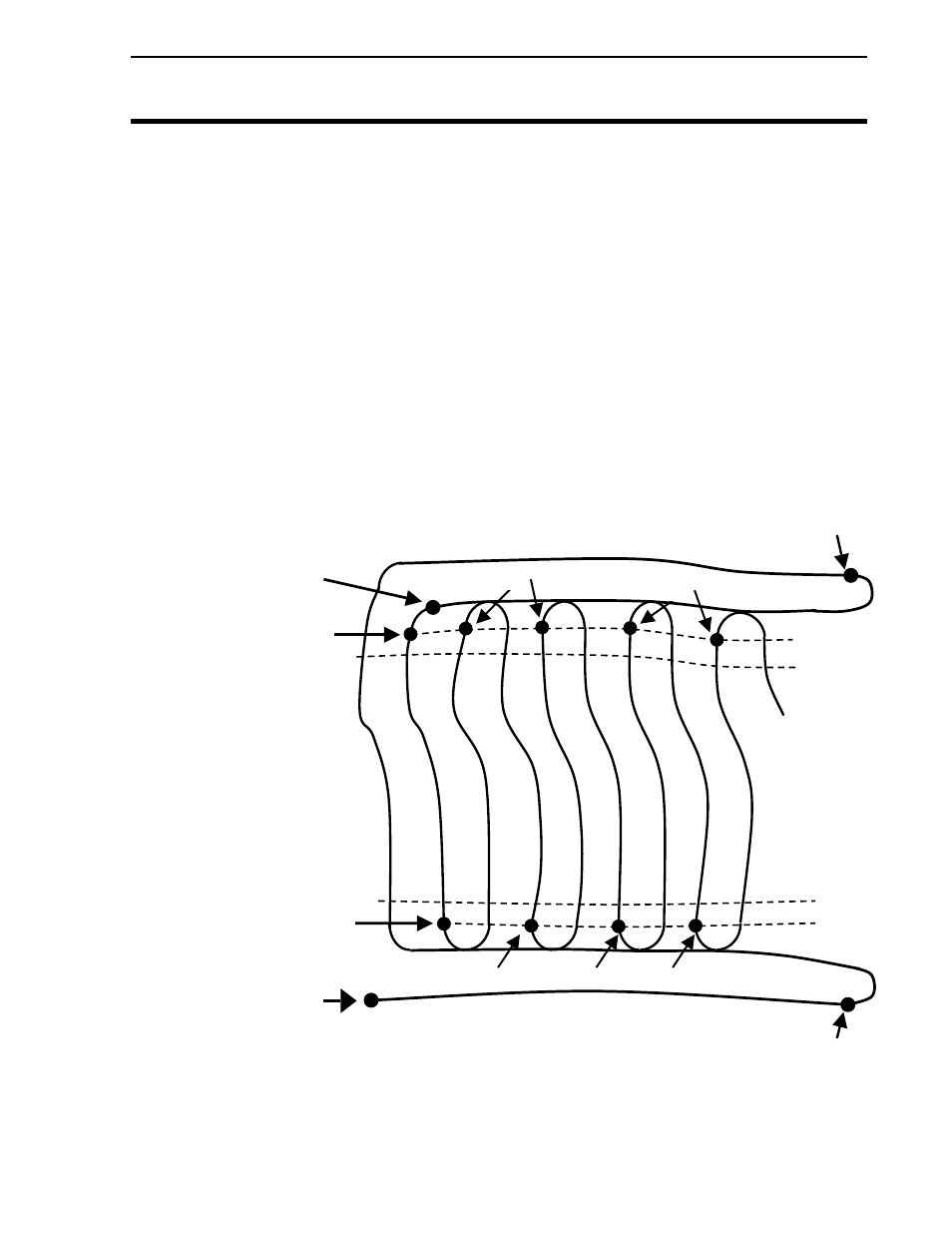

Figure 13a. Curved Following pattern with C-clamp headland.
