Light Bar General Operation
Ag Leader Technology
Spiral
Use this pattern when the operating pattern within a field dictates
continuous application from the center out or outside in. Using the
curved guidance spiral pattern, a field can be worked continuously and
completely using no headlands.
This pattern is not recommended for fields under 10 acres. Fields with
long runs may cause erratic behavior. The more contour to a swath the
better this pattern will perform. At the start of a new guided pass, it
may take a short period of time for the lightbar to determine your
location and guidance pattern.
Pattern: Set to Curved Spiral.
Headland Pattern: Set to None.
IMPORTANT: In order to use the UP or DOWN ARROW,
the Lightbar pass number must be displayed on the screen
of the PF monitor.
NOTE: Depending on the direction that your want to spiral,
you increment the pass in the following manner:
Up Arrow =Right, Down Arrow = Left
NOTE: Before working in a new field, you should reset the
system to clear previous field information.

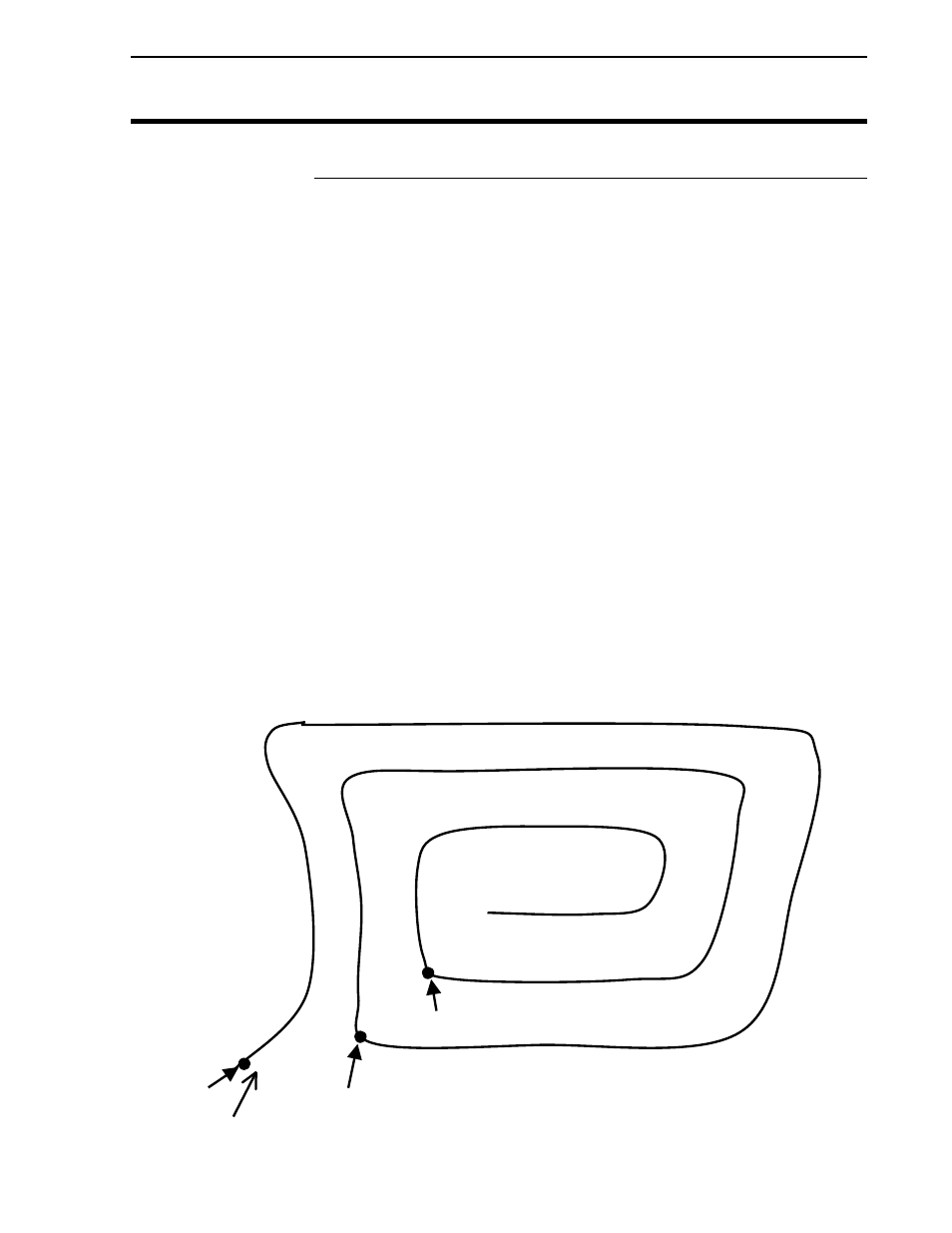

Figure 23. Curved Spiral Pattern
Up Arrow Key
Up Arrow Key
Set A
