General Operation Light Bar
Ag Leader Technology
Curve Following
with Curved
Headlands
Use this pattern when headlands are required on all sides of a field that
is irregularly shaped. Double headland passes and curved swath lines
can also be implemented in this mode. Guidance in Curve Following
mode is always based on the previous swath after the initial A-B line is
established.
The Approach LED illuminates green when inside the headland
boundary. When approaching the edge of a headland boundary, the
Approach LED changes to orange within 1/2 swath width of the
sprayed edge and to red upon crossing the headland edge.
Pattern: Set to Curve.
Headland pattern: Set to Curved.
IMPORTANT: In order for this pattern to function properly the
Lightbar pass number must be displayed on the screen of the PF
monitor.
NOTE: Before working in a new field, you should reset the
system to clear previous field information.

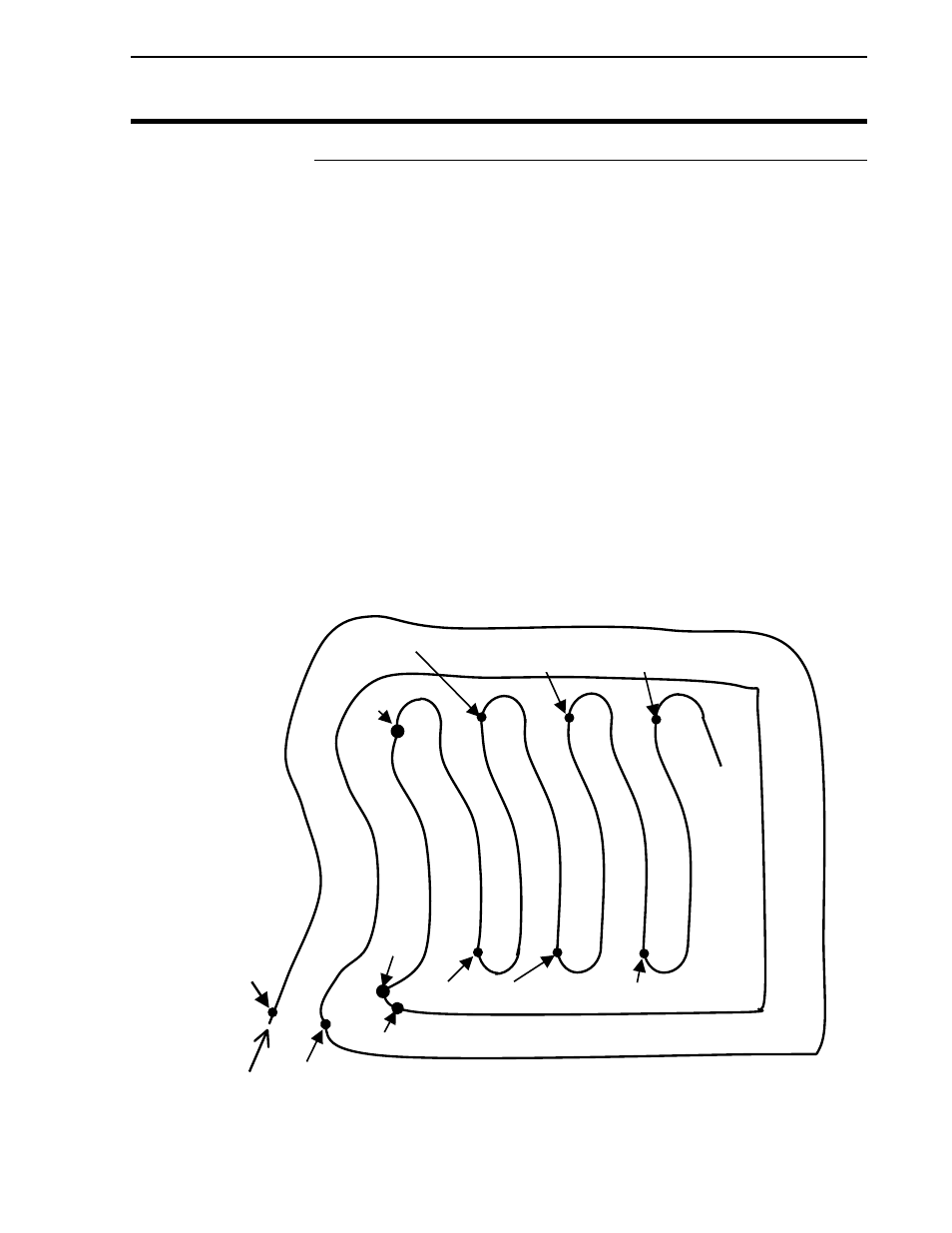

Figure 22. Curve Pattern with Curved Headlands
Set B or UP Arrow
UP Arrow
Set B or UP Arrow
Set B or UP Arrow Set B or UP Arrow
Set B or UP Arrow
Press
ADD/STRT
CLR/STOP
Set A
Set B
February 2003 Rev.3 3000135 26
