Page 21: Ag leader technology, General operation

Light Bar

General Operation

Ag Leader Technology

Set A

Set B

ARROW

Set turn

direction to

left or right

of A-B

reference

line

ARROW

Direction of Travel

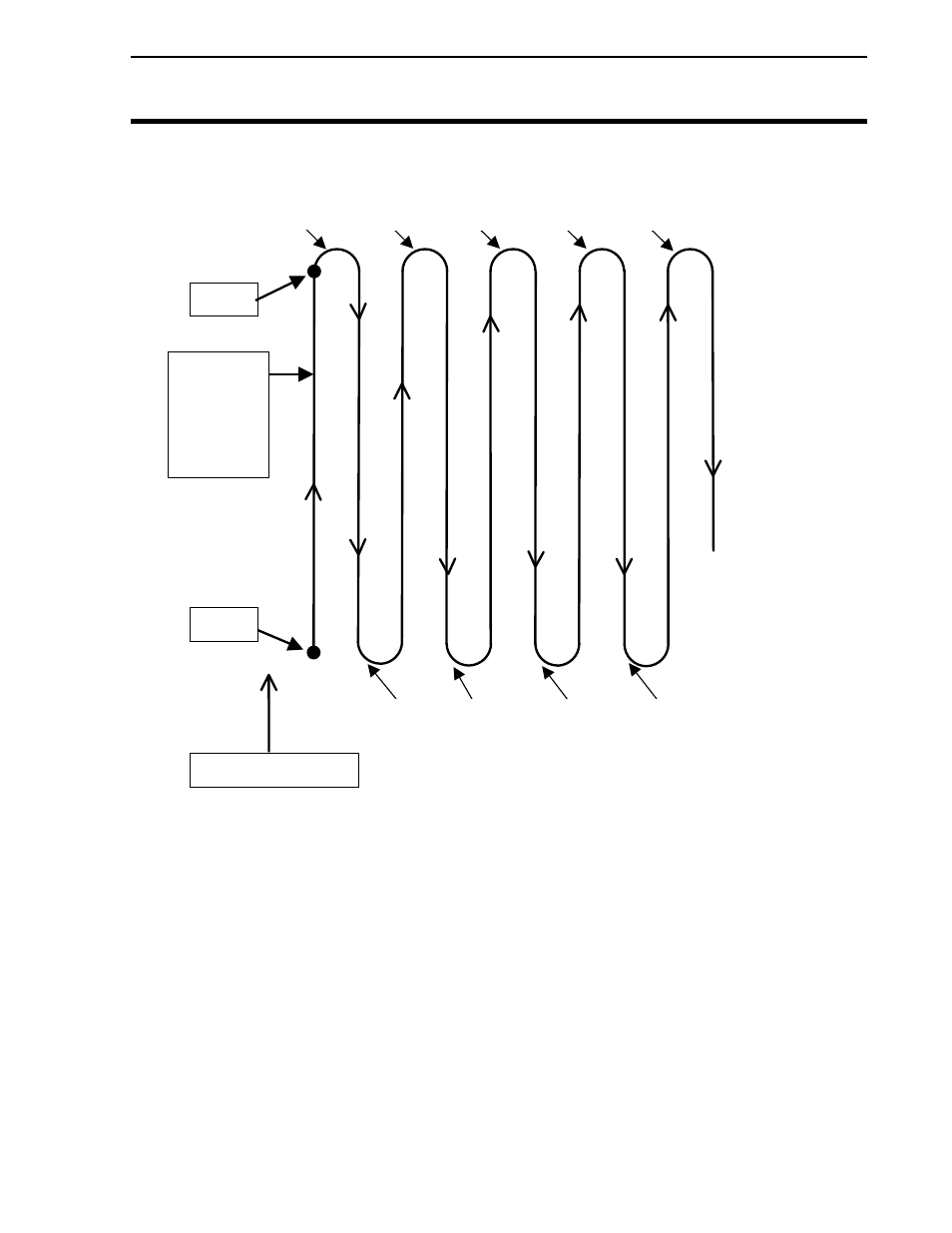

Figure 12

Basic A-B Parallel Swathing with Manual Increment

To use Manual Increment:

Have Lightbar Pass Number item displayed on the PF monitor screen.

Set swath direction under GPS/Guidance to left or right of A-B line.

At the Set B spot, of the current swath, press the UP ARROW to increase
your pass number and down arrow to decrease the pass number.

IMPORTANT: In order to use the UP or DOWN ARROW,

the Lightbar pass

number must be displayed on the screen of the PF monitor.

February 2003

Rev.3 3000135
