General Information Light Bar
Ag Leader Technology
Text Mode: Provides the following selection to monitor (See
Figure 2 for location of text items)
Pass # & Error - Provides the pass number and error
from the center of the swath.
No Text – No text is displayed on the screen
Demo – Used for demonstration only, cycles power on
and off
Pass & Speed – Provides pass number and ground speed
Ground Speed – Displays ground speed only

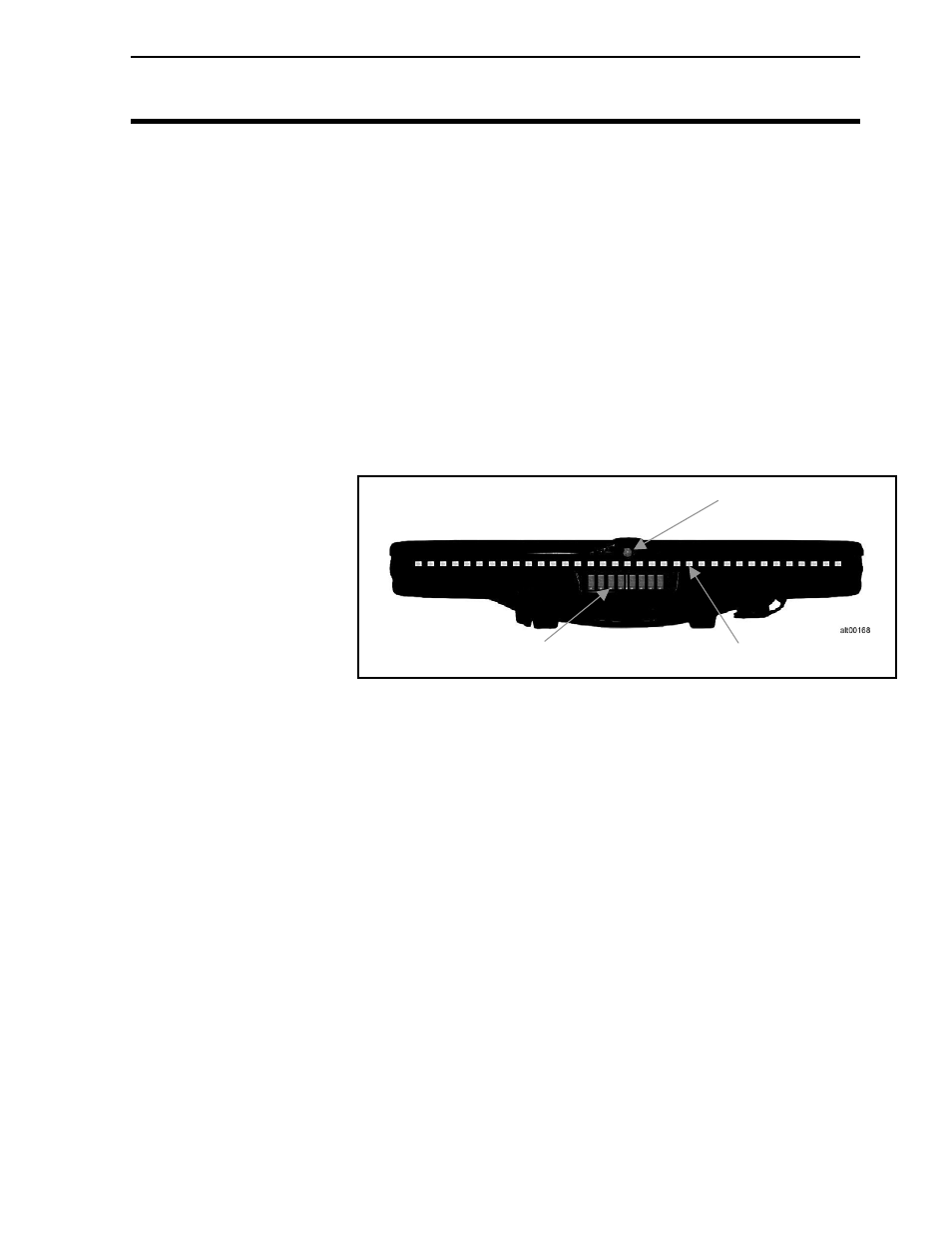

Guidance LED
Approach LED
Text Display Area
Figure 5
Heading Error – Displays the degree error for the
heading from the center of the swath
Cross – TRK Error – Displays the error between current
position and swath
True Heading – Displays the actual degree heading from True
North
End Line Dist(ance) – Displays the distance from the
end of a pass (decreasing)
Start Line Dist(ance) – Displays the distance from the
start of a pass (increasing)
February 2003 Rev.3 3000135 6
