Hardware options installation 89

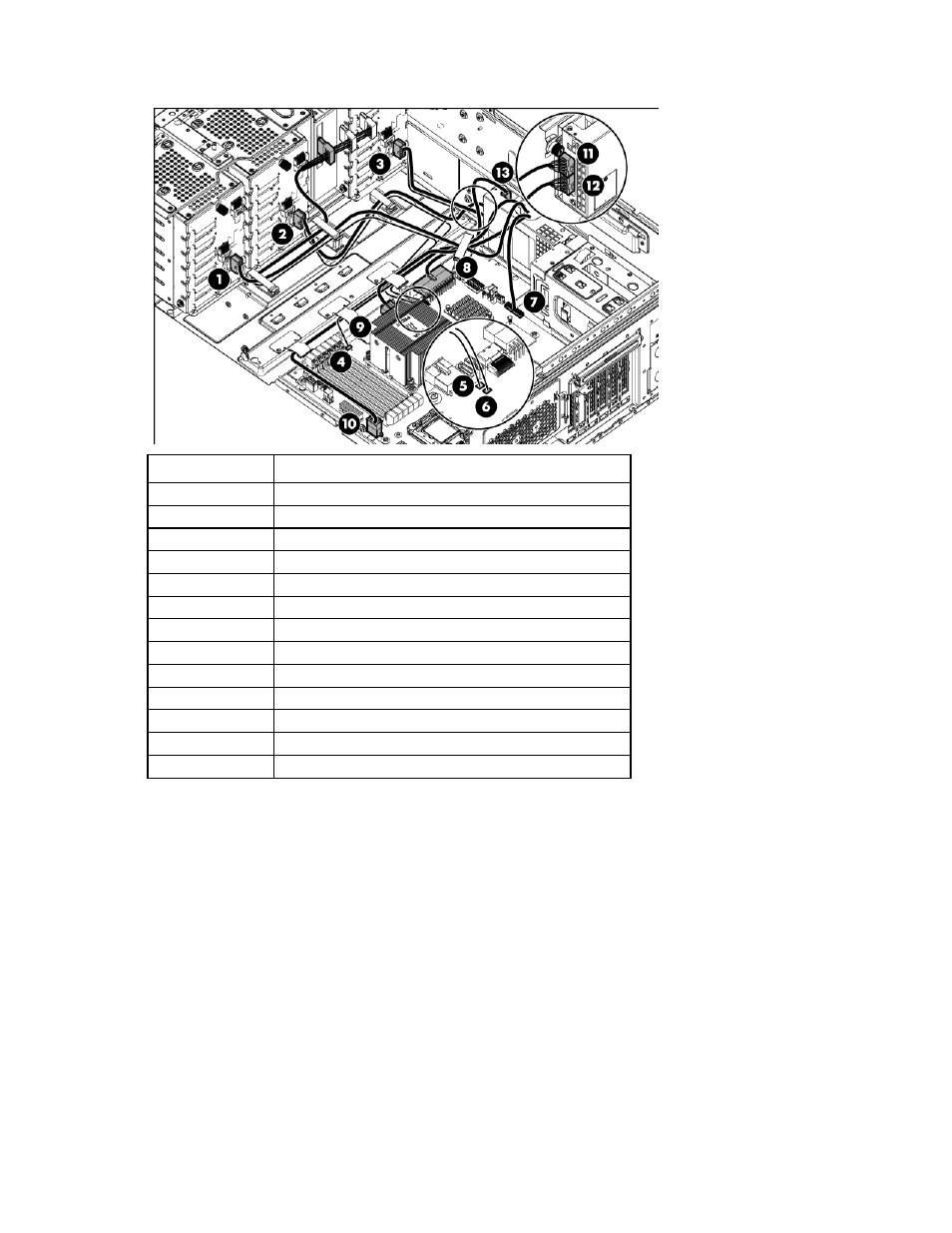

4. Route and connect the redundant power supply cables to the system board.
Item Description
1 Drive box 1 connector
2 Drive box 2 connector
3
Drive box 3 connector
4 Drive cage power good connector for drive 3
5 Drive cage power good connector for drive 1
6 Drive cage power good connector for drive 2
7
RPS connector
8 System board power connector
9 Processor 1 connector
10 Processor 2 connector
11 Drive box 2 RPS backplane connector
12 Drive box 3 RPS backplane connector
13 Processor 2 RPS backplane connector
