Cabling 108

Item

Description

1

Power supply

2

Hot-plug SFF drive bay (1 to 8)

3

SFF backplane

4

Power supply cable

5

Mini-SAS cable (2) to Smart Array Controller card

6

Power good cable to system board

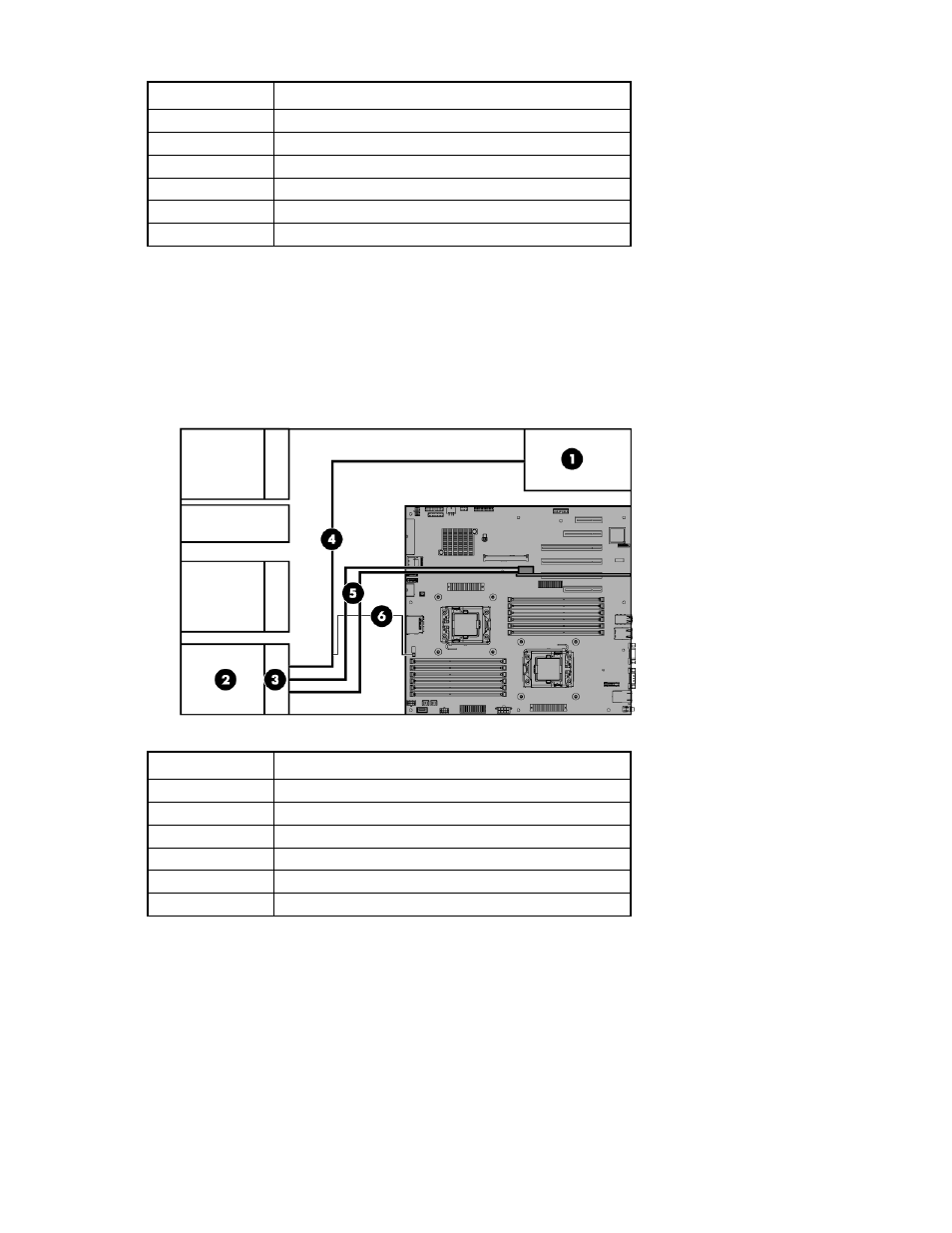

Smart Array controller card cabling

5/6 LFF Smart Array controller card cabling

Item

Description

1

Power supply

2

Drive bay (1 to 6)

3

LFF drive backplane

4

Power supply cable

5

Mini-SAS cables (2) to Smart Array controller card

6

Power good cable to system board
