Description Item
All the logical paths are in normal status.
A failure occurred to some of the logical paths.
Shows information about the selected remote storage systems: Operation List
• Controller ID: The controller ID and the model name of the storage system of a remote
storage system. The controller ID is the storage system family ID of a storage system.
The icon indicates the status of logical paths between the local storage system and the
remote storage system:
All the logical paths are in normal status.
A failure occurred to some of the logical paths.
•
S/N(LDKC): The five-digit serial number and the LDKC number of the remote storage
system. 00 is displayed for the LDKC number when the remote storage system is an
XP12000/XP10000 or XP24000/XP20000 Disk Array.
• Path Gr. ID: The path group ID. All path group IDs show as Default.
•
M-R Path: The channel type of the logical paths between the local storage system and
the remote storage system. This column always shows Fibre.
•
Status: Indicates whether the logical paths failed.
Normal: No failure occurred to the logical paths
Failed: All the logical paths failed.
Warning: Some of the logical paths failed.
• Num of Path: The number of logical paths.
Viewing Information About Logical Paths
Logical paths are communication paths that connect the local storage system ports and the remote
storage system ports.
To view information in the DKC Operation window about logical paths:
1. In the Display box, select DKC.
2. Select a remote storage system from the tree. The list shows logical paths. Each row in the list
indicates one logical path (see
Figure 53 (page 120) ).

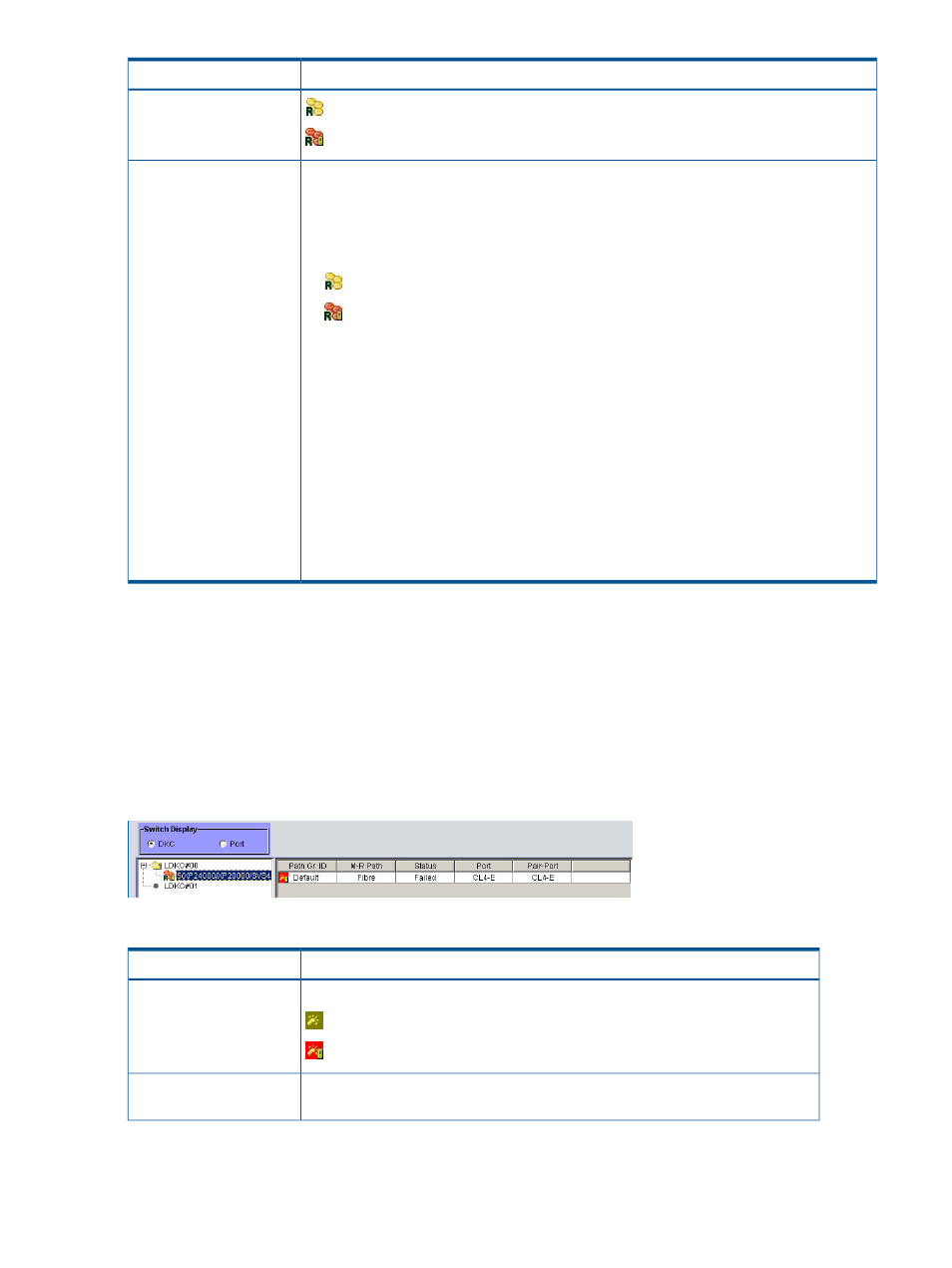

Figure 53 Logical Paths Information in the DKC Operation Window
Table 31 Logical Paths Information in the DKC Operation Window
Description Item
The path group ID. The icon indicates the status of the path: Path Gr. ID
The logical path is in normal status.
A failure occurred to the logical path.
The channel type of the logical paths between the local storage system and the
remote storage system. This column always displays Fibre. M-R Path
