Table 30 DKC Operation Window Details
Description
Item
Changes information in the DKC Operation window.
•
DKC shows information about the remote storage systems and the logical paths.
Port shows information about the ports on the local storage system.
Display
Lists either of the following:
Tree
•
Remote storage systems
•
Channel adapters on the local storage system and port attributes
Lists detailed information about one of the following:
Operation list
•
Remote storage systems
•
Logical paths
•
Ports on the local storage system
Shows changes made in the window before the changes are applied to the storage
systems. When the information in Preview is correct, click Apply to apply the
settings.
Preview list
Indicates the operation in progress in the DKC Operation window.
Operation
Information on the DKC Operation window will be updated when you do one of the following:
•
Click Apply.
•
Select another tab and then reselect the DKC Operation tab.
•
Click File, Refresh on the menu bar of the Remote Web Console main window.
•
Select Modify mode when you are in view mode.
Viewing Information About Remote Storage Systems
To view information about remote storage systems:
1.
Open the DKC Operation window.
2.
In the Display box, select DKC. The tree and the list show information about the remote storage
systems.

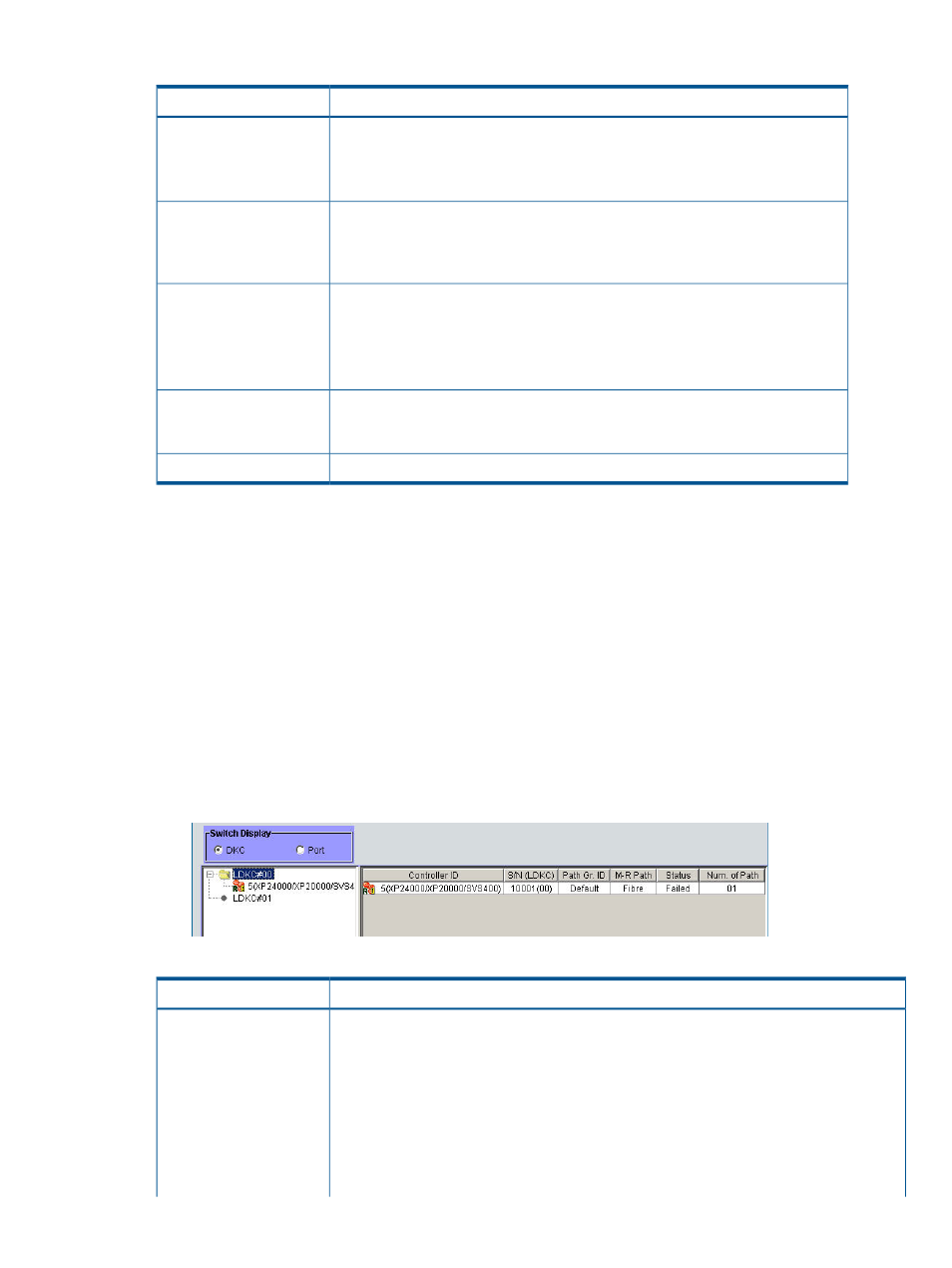

Figure 52 DKC Operation Window
Description
Item
Lists the remote storage systems at each LDKC in the local storage systems. The following
information appears to the right of the icon of the remote storage system:
Tree
•
Controller ID of a remote storage system (the model name of the remote storage system)
•
Serial number of the remote storage system
•
Path group ID
The LDKC#01 cannot be used in this version.
The icon indicates the status of logical paths between the local storage system and the remote
storage system:
DKC Operation Window
