Check the activity LEDs on the front panel of the controller. The reset
switch/LEDs should begin to flash at a half-second rate (heartbeat) and
the host activity LEDs should flash.

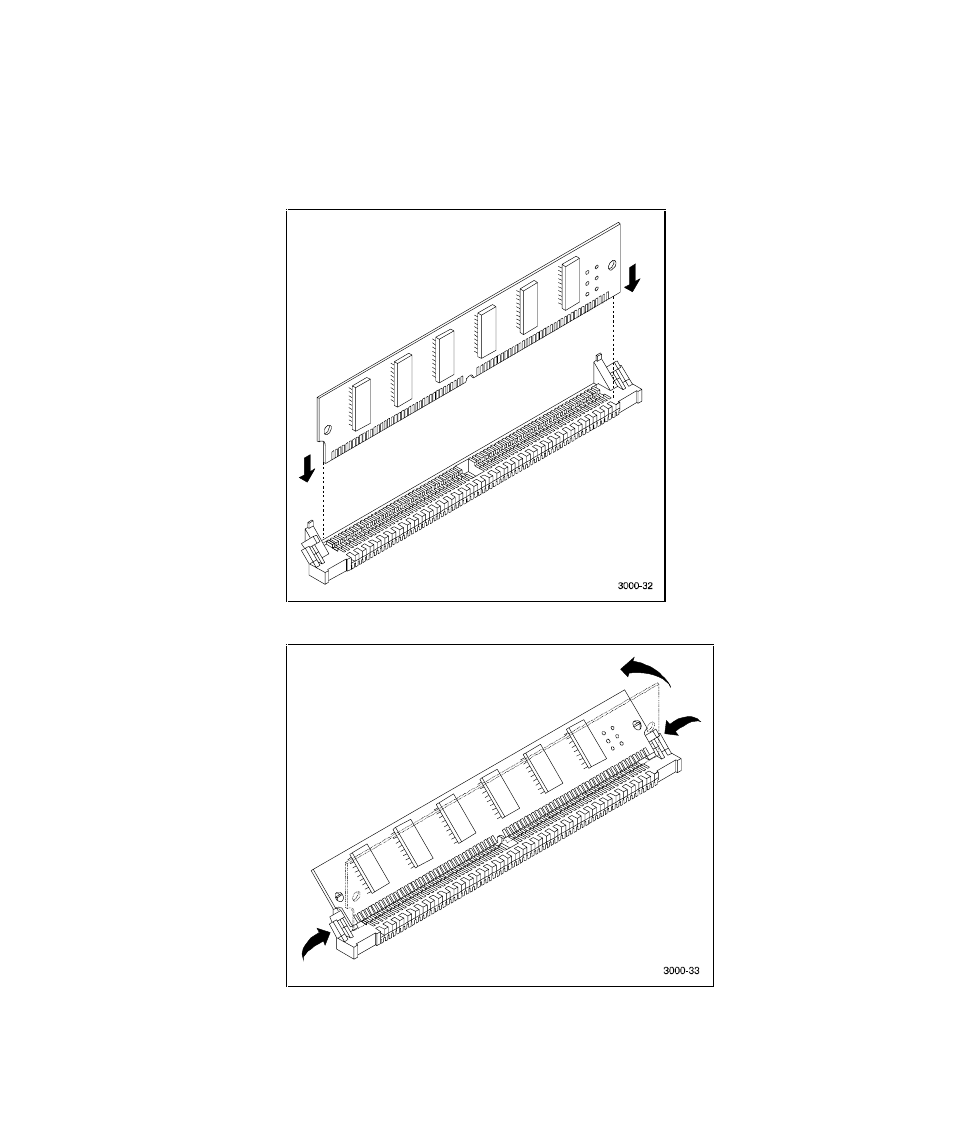

Figure 3-22. Install replacement SIMM

Figure 3-23. Pivot SIMM down to secure
