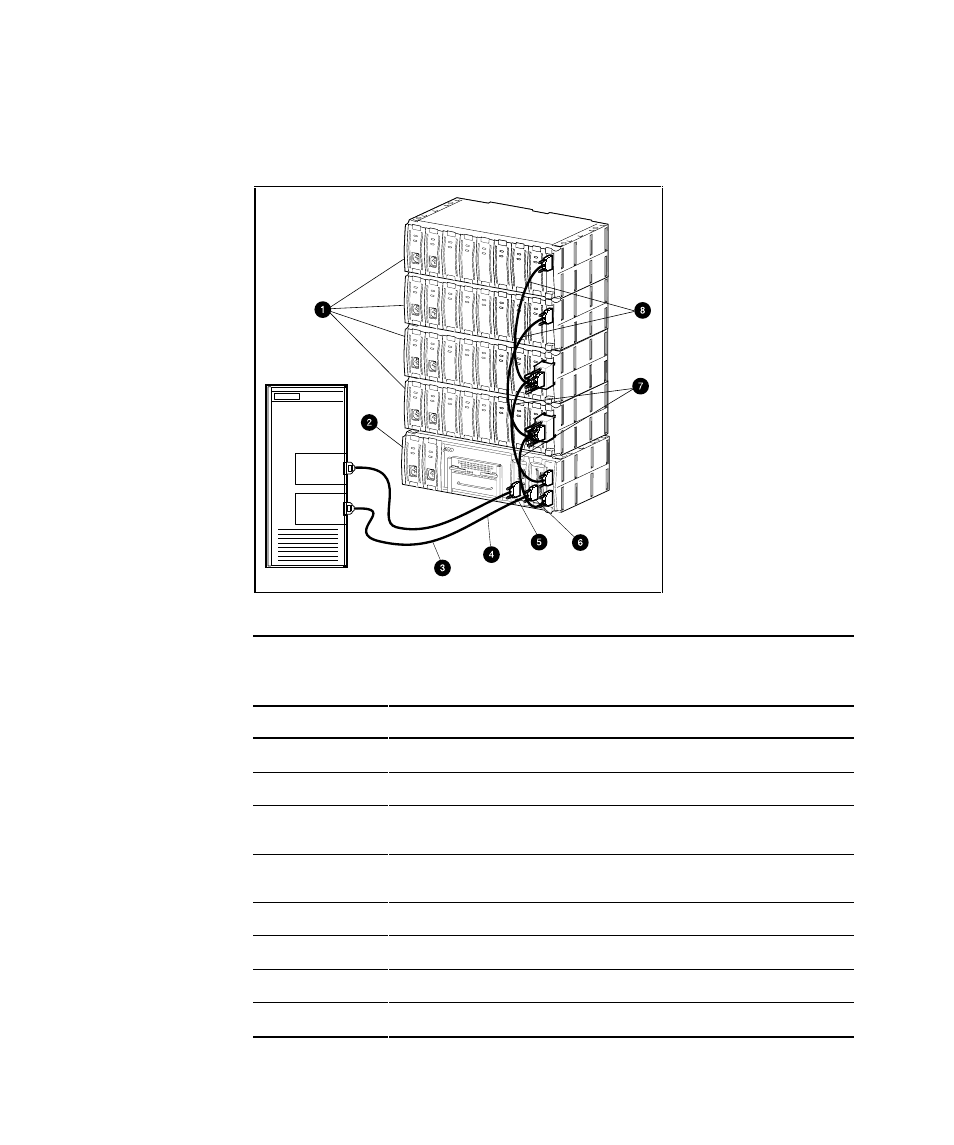

Figure 1-11 shows a diagram of a Single Host, Dual Adapter, Two Ports with
two Active Controllers.
Host
System
Host
Adapter
Host
Adapter
shr-1318b
Figure 1-11. Single host, dual adapter, two ports with two active controllers
Table 1-4
Single Host, Dual Adapter, Two Port with Two Active Controllers
Item # Description
å
Device expansion shelves

Controller shelf
ê
SCSI cable BN37A-05 (host adapter connection made using technology
adapter cable BN38E-OB, not shown)
‚
SCSI cable BN37A-05 (host adapter connection made using technology
adapter cable BN38E-OB, not shown)
ƒ
Host In connector on H0 I/O module
ñ
Host In connector on H1 I/O module
ò
SCSI cables BN37A-OE (2) for device I/O module 0
ô
SCSI cables BN37A-OE (2) for device I/O module 1
